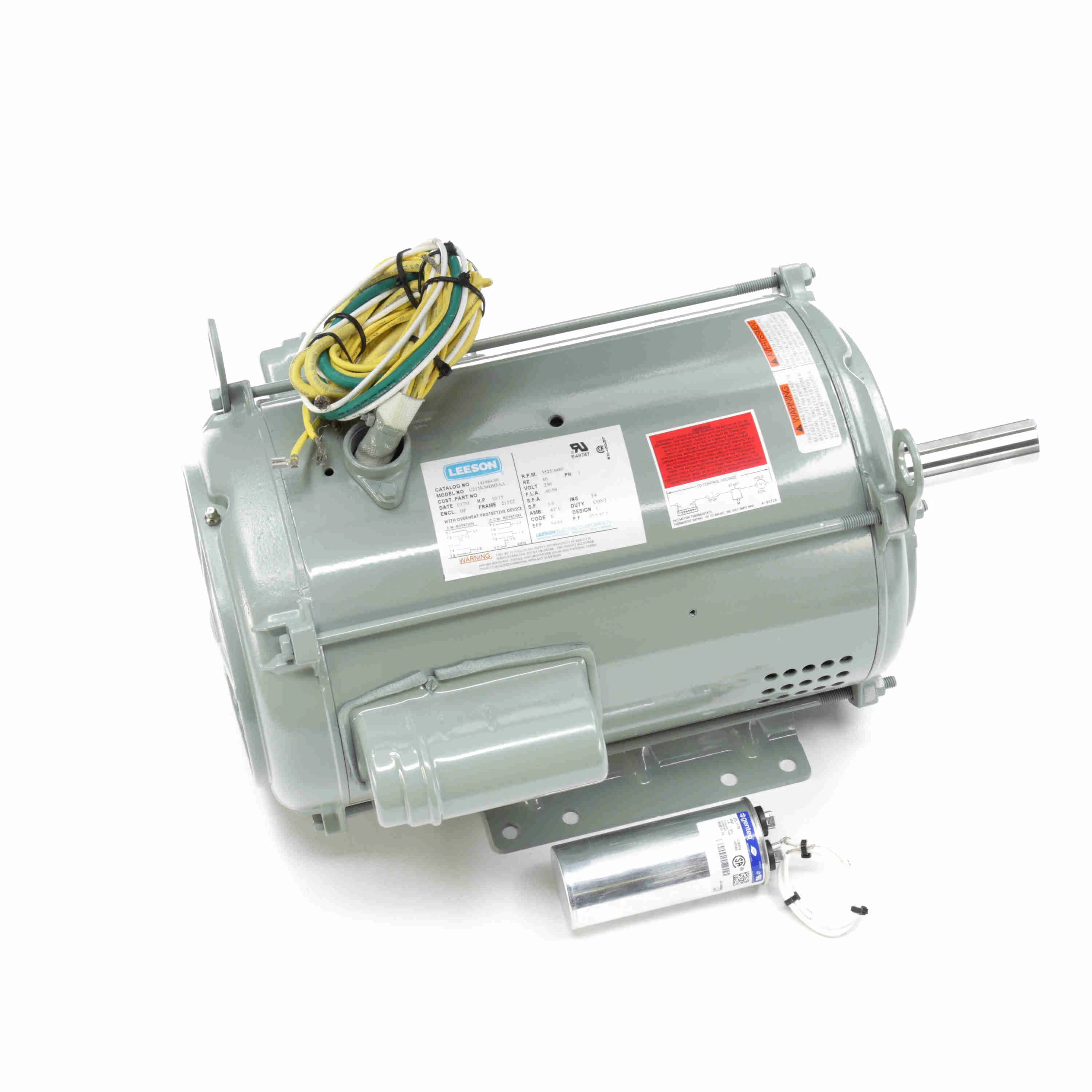

LEESON 141084.00 C215K34DB3AA General Purpose Motor 50-60 Hertz

In Stock
Item: AJ2TBG Model: 141084.00Cross Ref: C215K34DB3AA

Get it by Jun 14, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€1,670.83 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemFarm Duty Motor
CodeK
DesignL
DutyContinuous
EnclosureDP
Frame215TZ
Full Load Amps40 / 59
HP10 / 15
Hz50/60
Insulation ClassF
kW7.50 / 11.2
LubricationVERIFY
Max. Ambient Temp.40
MountingRigid
PackagingB
Phase1
Power Factor97.5
RotationSELECTIVE CCW
RPM3600 / 3600
Service Factor1.0
Shaft Dia.1 1/8"
TypeKD
Voltage230 / 230

Shipping Info:

Ship weight (kg) 71.55
Ship height (cm)36.2
Ship length (cm)57.48
Ship width (cm)40.97

Product Details:

  • Eff 100%: 84
  • Eff 75%: 89.7
  • Bearing OPE: 206
  • CC Number: EXEMPT
  • Bearing PE: 309
  • Nameplate: 92005-5
  • Winding: BK10276
  • GROUP: 1
  • Paint: GRAY - LIGHT (EPOXY)

Product Variants

ProductModelHPPower FactorDutyHzkWLubricationFrameRPMPrice
LEESON 131847.00 C182C34DB2B General Purpose Motor | AJ2RUL C182C34DB2B 131847.005-782.5AIROVER60-Polyrex EM182TZ3600€1,092.16
LEESON 131848.00 C182K34DB4B General Purpose Motor 50-60 Hertz | AJ2RUM LM24780 131848.007 1/2 / 1093.5 / 96.5AIROVER50/605.6 / 7.5Polyrex EM182TZ3600 / 3600€1,264.65
LEESON 140640.00 C215K34DB2A HVAC Motor 50-60 Hertz | AJ2RZJ C215K34DB2A 140640.0010 / 1582 / 94Continuous50/607.50 / 11.2VERIFY215TZ3600 / 3600€1,695.69
