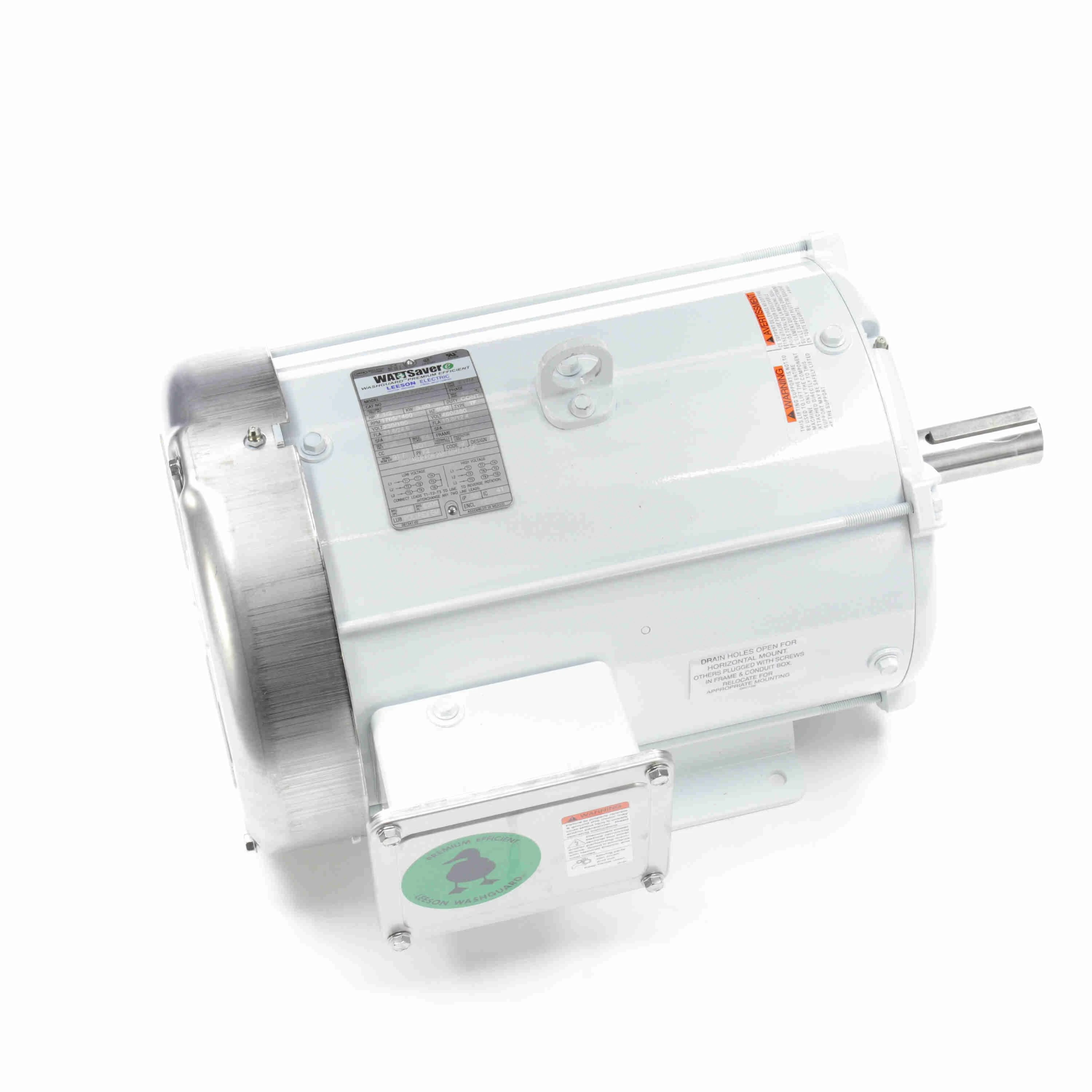

LEESON 140819.00 C213T17WB6A General Purpose Motor, 7.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Thursday, Jun 19
€1,838.36 /unit
Add To Cart
Request a Quote
Payment
Get it by Thursday, Jun 19
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Assembly | 210-009 |
| Bearing Type | Ball |
| Body Dia. | 9.63" |
| Cc Number | CC005A |
| Code | J |
| Color | White |
| Conduit Box Location | Exterior |
| Design | B |
| Duty Cycle | Continuous |
| Finish | Epoxy Coated |
| Frame | 213T |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 21.6-22.4/10.8A |
| Grease Type | Polyrex EM |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91.5% |
| Overall Length | 18 11/16" |
| Packaging | B |
| Phase | 3 |
| Power | 5.6 kW |
| Power Factor | 72 |
| Removable Base | No |
| Rotation | Reversible |
| Service Factor | 1.25 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3 3/8" |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 15 3/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Thermal Protection | None |
| Nameplate Rpm | 1765 RPM |
| Product Type | Washdown Brake Motor |
| Standards | BISSC, CE, CSA, UL |
| Weight | 161 lbs. |
| Ship weight (kg) | 72.23 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 57.48 |
| Ship width (cm) | 40.97 |
| Country of Origin | MX |
| Product | Model | Assembly | Design | Frame | Full Load Amps | HP | Hz | kW | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
112427 | - | B | 56 | 1.9-2 / 1 | 1/2 | 60 | 0.37 | 40 | €604.24 | |
 |
112428 | - | B | 56 | 2.8 / 1.4 | 3/4 | 60 | 0.56 | 40 | €633.88 | |
 |
119475 | - | B | 56 | 3.2-3.2 / 1.6 | 1 | 60 | .75 | 40 | €875.78 | |
 |
121865 | - | B | 143T | 3.2/1.6A | 1 | 60 Hz | .75 / .56 | 104 Deg. F | €832.90 | |
 |
121866 | - | B | 145T | 5.8 / 2.9 | 2 / 1 1/2 | 50/60 | 1.49 / 1.12 | 40 | €1,039.16 | |
 |
121869 | - | B | 145T | 4.8 / 2.4 | 1 1/2 / 1 | 50/60 | 1.12 / 0.75 | 40 | €844.00 | |
 |
132196 | 180-001 | B | 182T | 7.8 / 3.9 | 3 | 60 | 2.24 | 40 | €1,315.95 |
