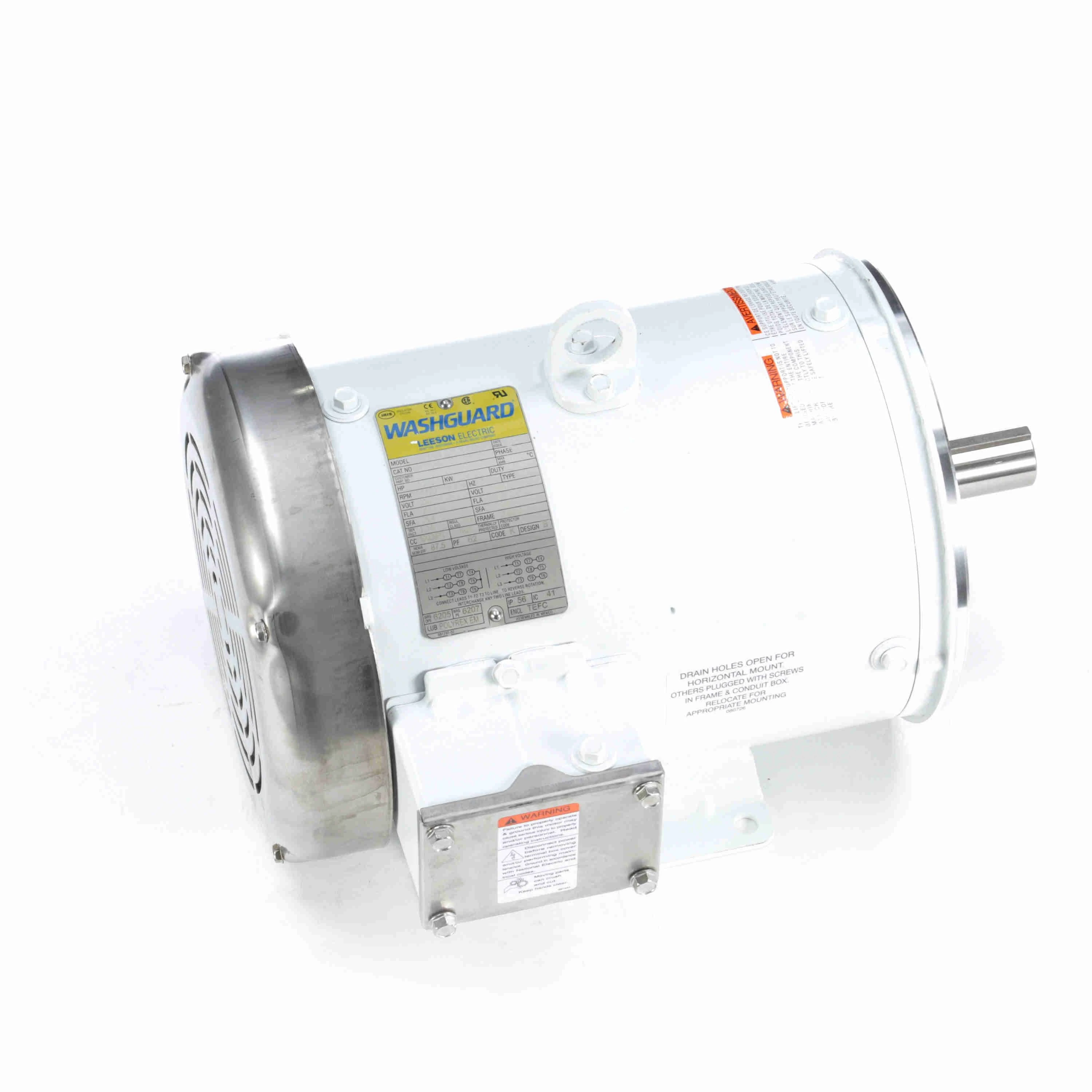

LEESON 132563.00 C182T11WK1A General Purpose Motor, 1.50 HP, 3 Phase, 60 Hz, 230/460V, 1200 RPM
Get it by Tuesday, Jun 17
€1,329.17 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 8 1/2" |
| Bolt Circle Dia. | 7 1/4" |
| Conduit Box Location | Exterior |
| Drain Plug Location | Conduit Box |
| Duty Cycle | Continuous |
| Efficiency | 87.5% |
| Endshield Material | Steel |
| Finish | Epoxy Painted |
| Frame | 182TC |
| Frame Material | Steel |
| Full Load Amps | 2.6A |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Motor Application | Washdown |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1170 RPM |
| No. Of Drain Plugs | 1 |
| No. Of Speeds | 1 |
| Overall Length | 14 31/32" |
| Phase | 3 |
| Service Factor | 1.2 |
| Shaft Dia. | 1 1/8" |
| Shaft Material | Stainless Steel |
| Stud Length | 6 1/2" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Drain Plugs | (1) Drain Plugs in Conduit Box |
| Hz | 60 |
| Ins. Class | Class F |
| Length Less Shaft | 12 1/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.2 |
| Motor Thermal Protection | None |
| Mounting Stud Length | 6 1/2" |
| Nominal Efficiency | 87.5% |
| Product Type | Washdown Motor |
| Standards | BISSC APPROVED, CE, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 89 lbs. |
| Ship weight (kg) | 40.05 |
| Ship height (cm) | 32.23 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
