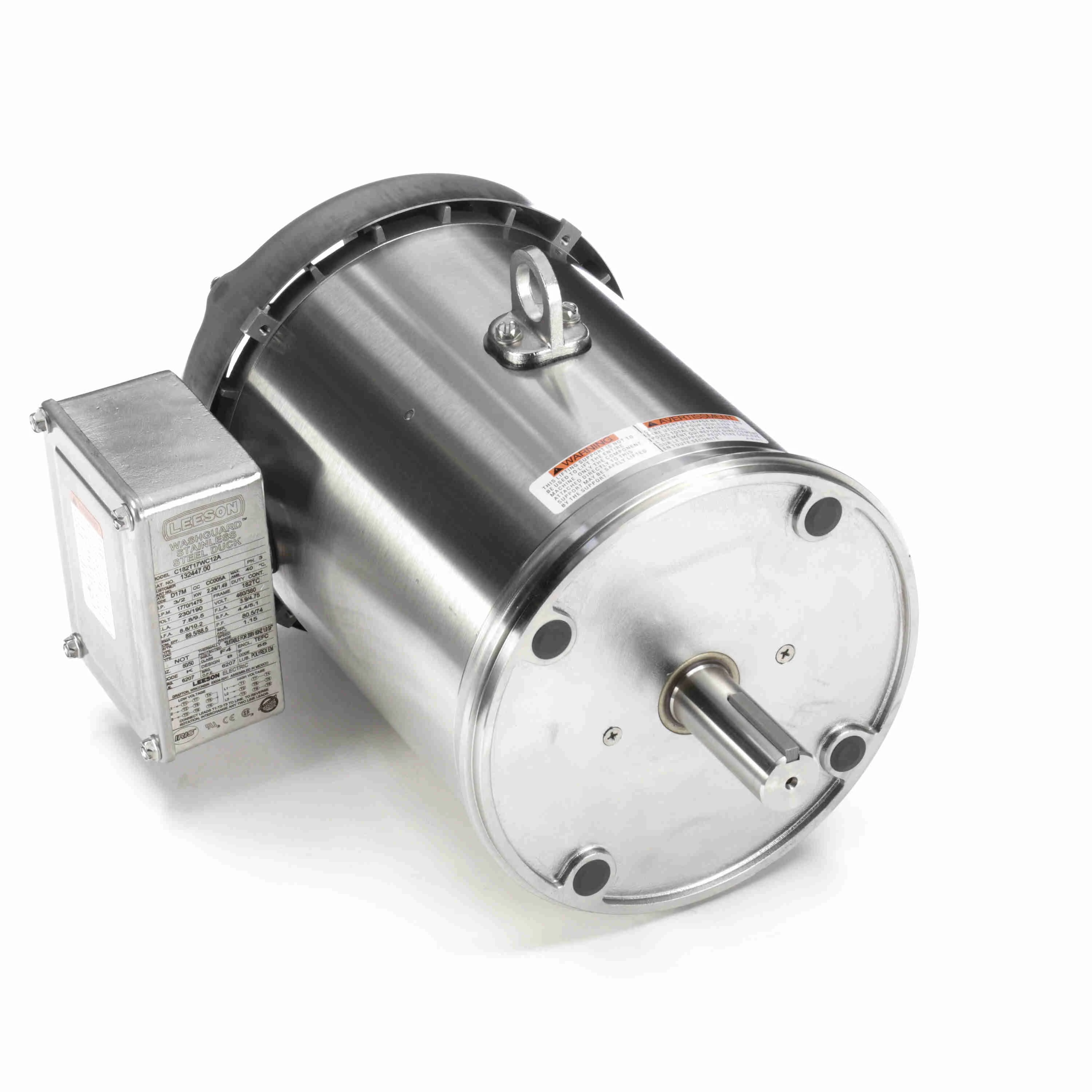

LEESON 132447.00 C182T17WC12A General Purpose Motor, 3/2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Jun 17
€2,228.91 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 8 1/2" |
| Code | K |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Finish | Unfinished |
| Frame | 182TC |
| Frame Material | Stainless Steel |
| Full Load Amps | 7.8/3.9A |
| Grease Type | Polyrex EM |
| Hp | 3 hp |
| Insulation Class | Class F |
| Inverter Rating | 3:1 |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Rpm | 1770 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Overall Length | 14 3/4" |
| Packaging | F |
| Phase | 3 |
| Power | 2.2 kW |
| Power Factor | 80.5 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Thermal Protection | None |
| Type | TF |
| Voltage | 230/460V AC |
| Hz | 60 |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Stainless Steel |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Product Type | Washdown Motor |
| Standards | CSA CERTIFIED |
| Weight | 91.25 lbs. |
| Ship weight (kg) | 41.06 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | MX |
| Product | Model | Assembly | Enclosure | Frame | Full Load Amps | HP | kW | Packaging | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
103389 | 040027 | TENV | S56C | 1.9-1.8 / 0.9 | 1/2 | 0.37 | B | 74 | €1,148.00 | |
 |
117270 | 042541 | TENV | 56C | 1.7-1.6 / .8 | 1/2 / 1/3 | .37 / .246 | B | 74 / 70 | €1,350.42 | |
 |
117272 | 042541 | TENV | 56C | 2.4-2.3 / 1.15 | 3/4 / 1/2 | .56 / .37 | B | 76 | €1,390.62 | |
 |
117281 | - | TENV | 56C | 2.6 / 1.3 | 1 / 3/4 | .75 / .56 | B | 85 | €1,353.85 | |
 |
119497 | 042542 | TEFC | 56C | 3.2-3.2 / 1.6 | 1 | .75 | B | 68.5 / 78 | €1,669.21 | |
 |
119498 | 042542 | TEFC | 56C | 4.6-4.8 / 2.4 | 1 1/2 / 1 | 1.12 / .75 | B | 67.7 / 67.5 | €1,665.63 | |
 |
119499 | 042542 | TEFC | 56C | 6-5.8 / 2.9 | 2 / 1 1/2 | 1.12 / 1.49 | B | 75.6 / 72 | €1,943.21 |
