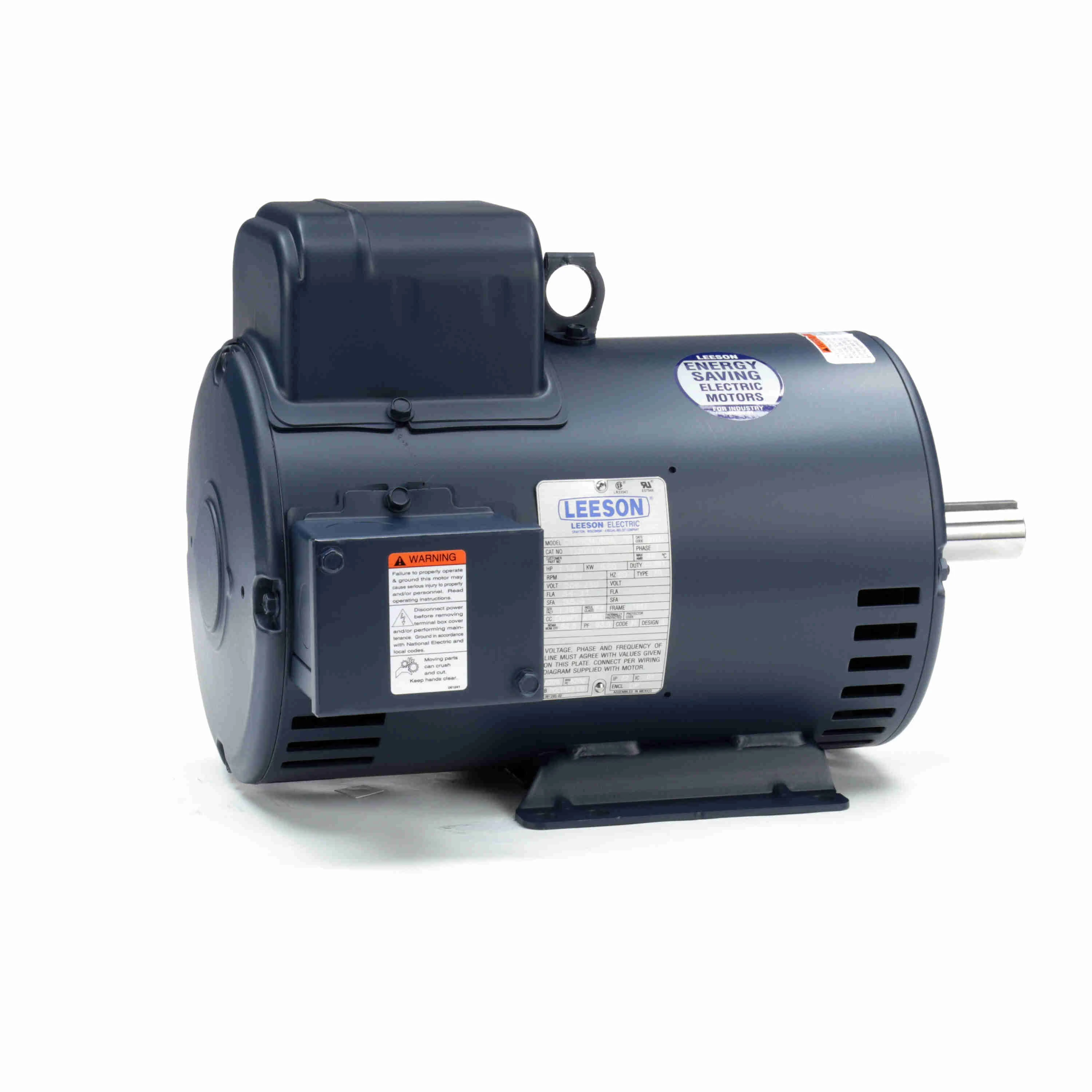

LEESON 132044.00 C184K34DB8A Air Compressor Motor, 7.50 HP, 1 Phase, 60 Hz, 208-230V, 3600 RPM
Get it by Tuesday, Jun 17
€1,010.63 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Assembly | 180-008 |
| Code | H |
| Design | H, L |
| Duty Cycle | Continuous |
| Frame | 184T |
| Frequency | 60 Hz |
| Full Load Amps | 31-34A |
| Grease Type | Polyrex EM |
| Hp | 7 1/2 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Output Kw | 5.6 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 93.5 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Thermal Protection | Automatic |
| Type | KD |
| Voltage | 208-230V AC |
| Ship weight (kg) | 49.5 |
| Ship height (cm) | 31.45 |
| Ship length (cm) | 51.13 |
| Ship width (cm) | 37.16 |
| Country of Origin | MX |
| Product | Model | Assembly | Frame | Full Load Amps | HP | Insulation Class | Item | kW | Lubrication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110222 | - | 56Y | 15 | 3 | F | Single Phase Motor | 2.24 | Polyrex EM | €643.47 | |
 |
110232 | - | 56 | 22 / 11 | 2 | B | Single Phase Motor | 1.49 | Polyrex EM | €574.33 | |
 |
111275 | - | 56Y | 20.8 | 5 | F | Single Phase Motor | 3.7 | Polyrex EM | €724.33 | |
 |
120004 | 042505 | G145T | 17.2 / 8.6 | 1.5 | B | General Purpose Motor | 1.12 | Polyrex EM | €867.07 | |
 |
120554 | - | 145T | 20.8 | 5 | F | General Purpose Motor | 3.7 | Polyrex EM | €756.54 | |
 |
131515 | 180-006 | 182T | 24.5 / 13-12.4 | 2 | F | General Purpose Motor | 1.49 | Polyrex EM | €807.25 | |
 |
131534 | 180-006 | 184T | 33.8 / 16.9 | 3 | F | General Purpose Motor | 2.24 | Polyrex EM | €842.09 |
