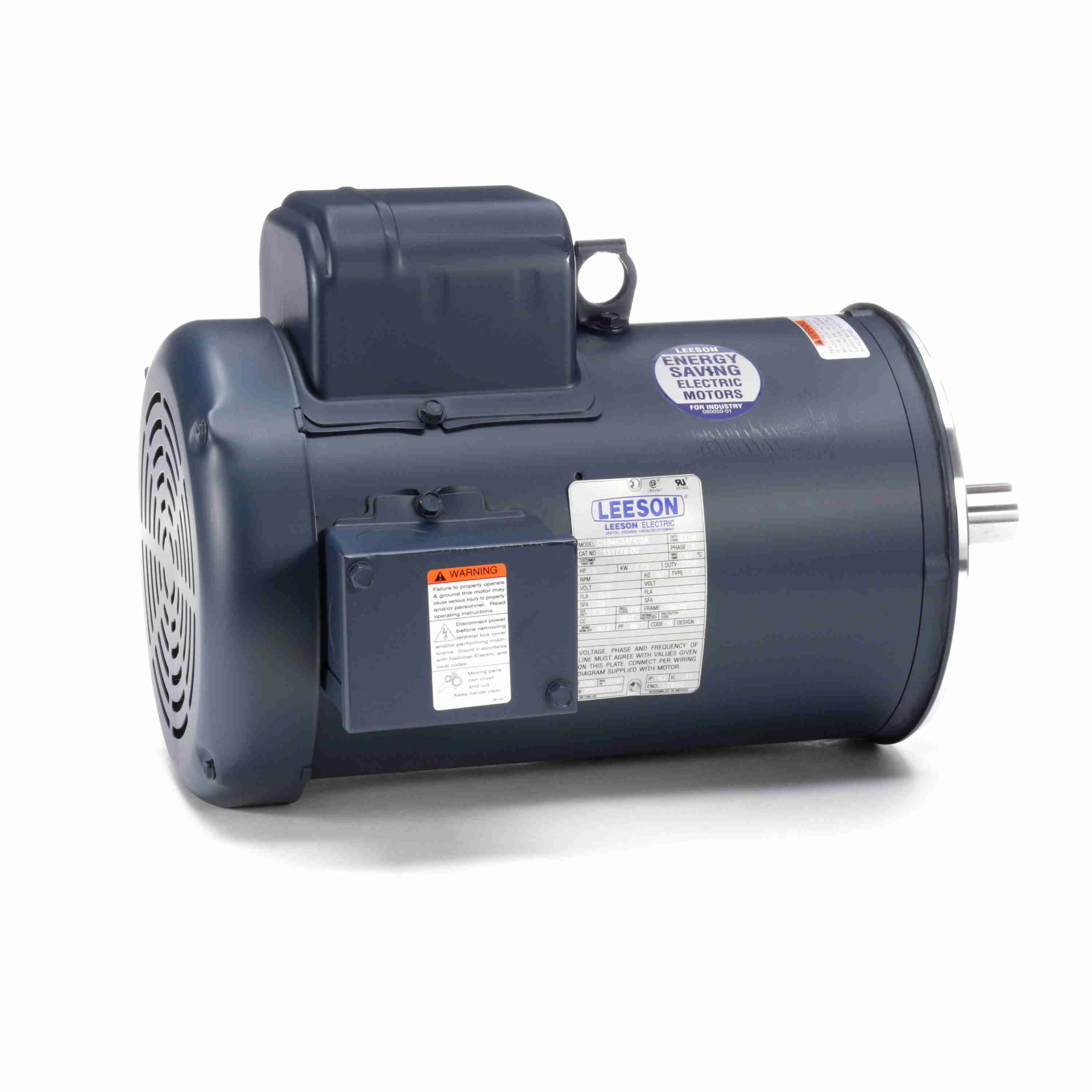

LEESON 131778.00 C184K34FC2A General Purpose Motor, 5 HP, 1 Phase, 60 Hz, 230V, 3600 RPM
Get it by Wednesday, Jun 18
€1,529.51 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Code | H |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 184TC |
| Frequency | 60 Hz |
| Full Load Amps | 19.8A |
| Grease Type | Polyrex EM |
| Hp | 5 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 3600 RPM |
| Nema Design | H, L |
| Output Kw | 3.7 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 98 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Type | KF |
| Voltage | 230V AC |
| Ship weight (kg) | 37.8 |
| Ship height (cm) | 31.45 |
| Ship length (cm) | 51.13 |
| Ship width (cm) | 37.16 |
| Country of Origin | MX |
| Product | Model | Assembly | Design | Enclosure | Frame | Full Load Amps | HP | Insulation Class | Item | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
101765 | LO101765 | N | TEFC | 48CZ | 5.4 / 2.4-2.7 | 1/4 | B | Single Phase Motor | €412.07 | |
 |
101766 | LO101766 | N | TEFC | S56C | 6.6 / 2.9-3.3 | 1/3 | B | Single Phase Motor | €444.41 | |
 |
102864 | LO102864 | N | TEFC | S56C | 7 / 3.4-3.5 | 1/2 | B | Single Phase Motor | €394.78 | |
 |
102865 | LO102865 | - | TEFC | 56C | 8 / 3.8-4 | 1/2 | F | Single Phase Motor | €538.64 | |
 |
102868 | LO102868 | N | TENV | S56C | 4.6 / 2.4-2.3 | 1/4 | B | Single Phase Motor | €409.83 | |
 |
102869 | LO102869 | N | TENV | S56C | 5.2 / 2.6-2.6 | 1/3 | F | Single Phase Motor | €463.36 | |
 |
102872 | LO102872 | N | TEFC | S56C | 7 / 3.4-3.5 | 1/2 | B | Single Phase Motor | €419.87 |
