LEESON 131630.00 M184K17DK13A Single Phase Motor | AJ2RTZ M184K17DK13A

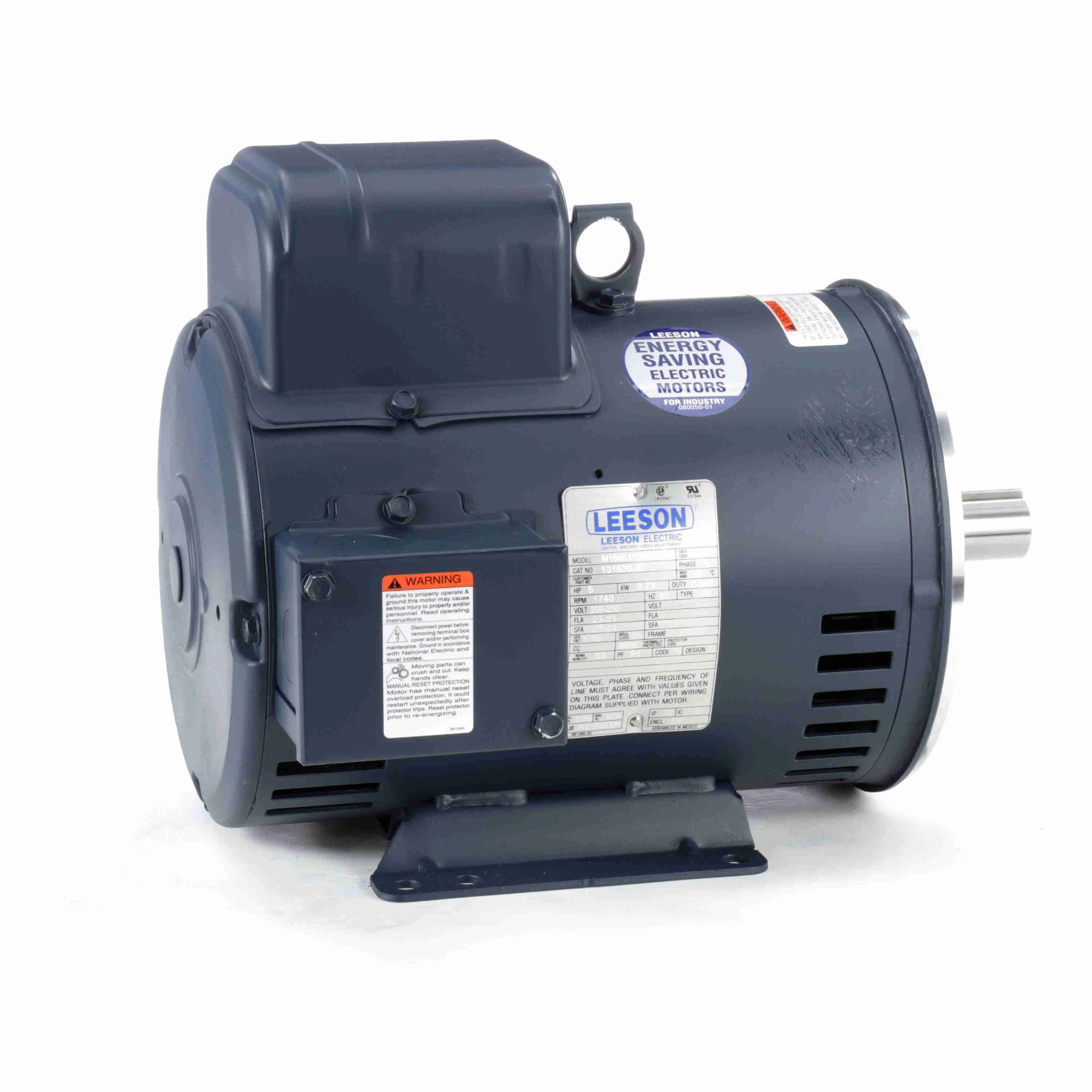

LEESON 131630.00 M184K17DK13A Single Phase Motor

In Stock
Item: AJ2RTZ Model: 131630.00Cross Ref: M184K17DK13A / 36X904

Get it by Jun 7, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€1,302.26 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemSingle Phase Motor
Assembly180-014
CodeH
DesignL
DutyContinuous
EnclosureDP
Frame184TC
Full Load Amps23-21
HP5
Hz60
Insulation ClassF
kW3.7
LubricationPolyrex EM
Max. Ambient Temp.40
Motor Thermal ProtectionLED964
MountingRigid
PackagingB
Phase1
Power Factor94
ProtectionMANUAL
RotationSELECTIVE CCW
RPM1800
Service Factor1.15
Shaft Dia.1 1/8"
TypeKD
Voltage208-230

Shipping Info:

Ship weight (kg) 36
Ship height (cm)32.72
Ship length (cm)45.57
Ship width (cm)33.17

Product Details:

  • S. F Amps: 27-24
  • Eff 100%: 83
  • Bearing OPE: 6205
  • CC Number: EXEMPT
  • Bearing PE: 6206
  • Nameplate: 080033
  • Winding: K8450
  • GROUP: 2
  • Paint: BLUE - LEESON (ENAMEL)

Product Variants

ProductModelMotor Thermal ProtectionService FactorFramePower FactorRPMFull Load AmpsShaft Dia.VoltagePrice
LEESON 116709.00 P6K34DK18A Washdown Motor | AJ2QUQ P6K34DK18A 116709.00BEJ34DB1.056HC95360020.85/8"230€974.63
LEESON 131853.00 C184K17DK18A Definite Purpose Motor | AJ2RUR C184K17DK18A 131853.00BRJ40DB1.15184TC86.5180014.6-13.81 1/8"208-230€1,058.01
