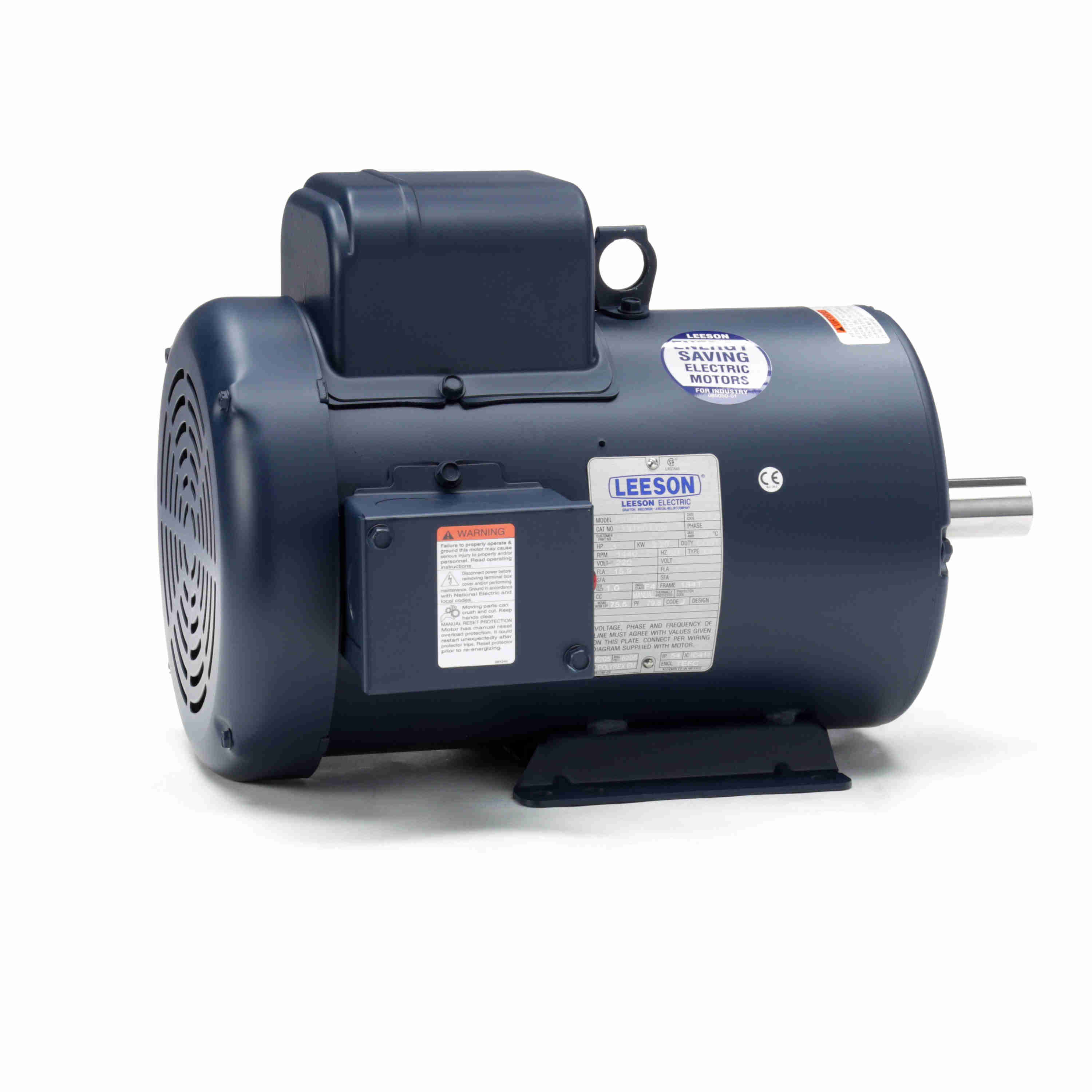

LEESON 131601.00 P184C14FB7C Special Voltage Motor, 3 HP, 1 Phase, 50 Hz, 220V, 1500 RPM
Get it by Tuesday, Jun 17
€2,006.29 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | 50 Hz Motor |
| Application | General Application |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 184T |
| Frame Material | Steel |
| Frequency | 50 Hz |
| Full Load Amps | 15.9A |
| Full Load Efficiency | 75.5% |
| Hp | 3 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1440 RPM |
| Nema Design | No Design Code |
| No. Of Speeds | 1 |
| Overall Length | 16 15/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 220V AC |
| Full Load Amps @ 50hz | 15.9A |
| Hp @ 50hz | 3 hp |
| Hz | 50 |
| Ins. Class | Class F |
| Length Less Shaft | 14 1/4" |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Manual |
| Nominal Efficiency | 75.5% |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED |
| Weight | 101 lbs. |
| Ship weight (kg) | 45.45 |
| Ship height (cm) | 31.45 |
| Ship length (cm) | 51.13 |
| Ship width (cm) | 37.16 |
| HS code | 8501406040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Insulation Class | Length Less Shaft | Motor Thermal Protection | Nameplate RPM | RPM Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110064 | 56 | 8.2/4.1 | 1/2 | B | 9.75" | None | 1425 | 1401-1500 | €638.45 | |
 |
110066 | 56H | 12.8/6.4 | 1 | B | 11.25" | None | 1425 | 1401-1500 | €877.66 | |
 |
110424 | 56H | 17.2/8.6 | 1.5 | F | 11.75" | None | 1425 | 1401-1500 | €994.77 | |
 |
113908 | 56 | 6.4/3.2 | 1/3 | B | 9.25" | Manual | 1425 | 1401-1500 | €580.22 | |
 |
113910 | 56 | 11.8/5.9 | 3/4 | F | 9.75" | Manual | 1425 | 1401-1500 | €782.47 | |
 |
113911 | 56 | 12.8/6.4 | 1 | F | 10.75" | Manual | 1425 | 1401-1500 | €906.92 | |
 |
113919 | 56 | 13.2/6.6 | 1 | B | 10.25" | None | 2850 | 1801-3000 | €640.15 |
