LEESON 131471.00 C184T48FB64C Definite Purpose Motor 50-60 Hertz | AJ2RRD C184T48FB64C

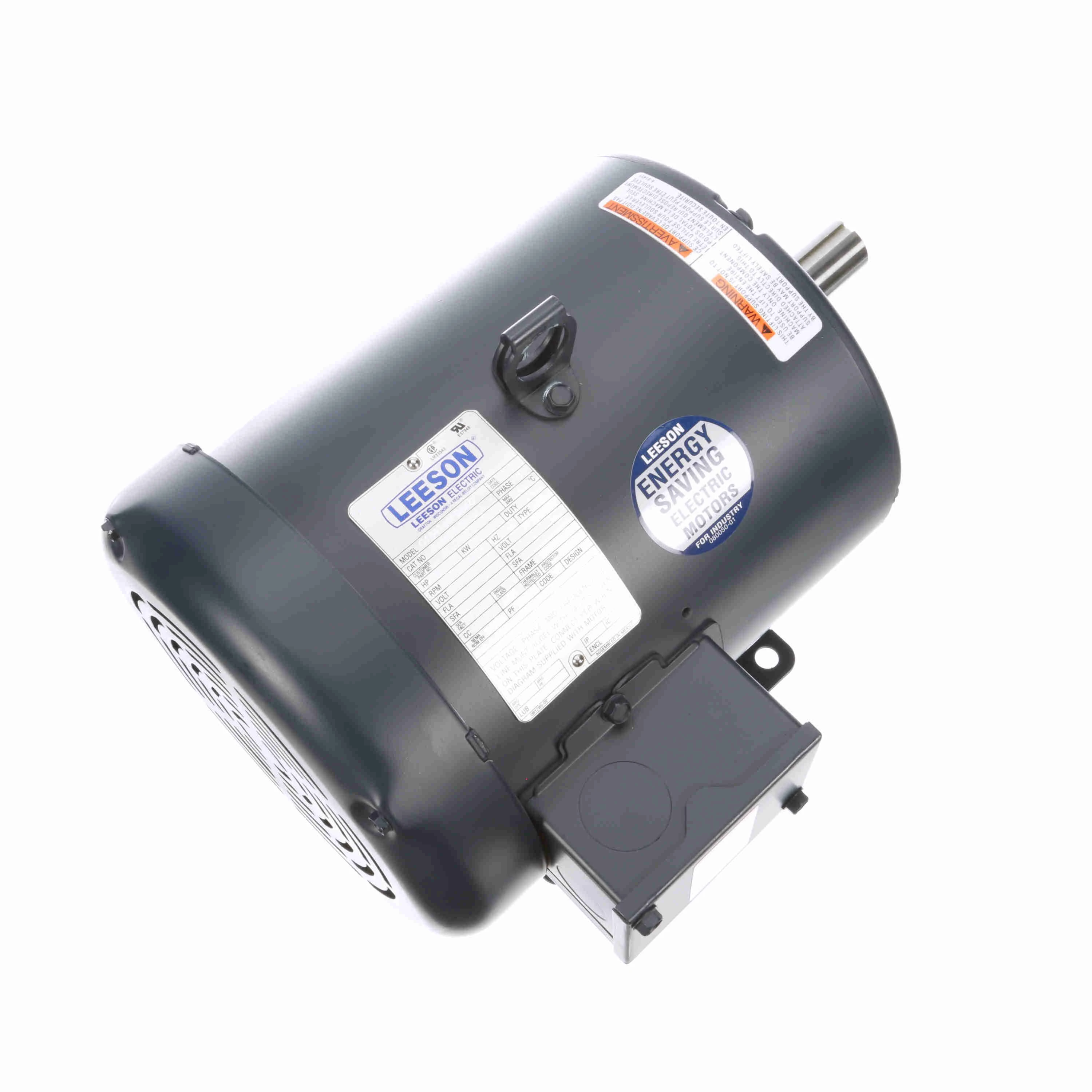

LEESON 131471.00 C184T48FB64C Definite Purpose Motor 50-60 Hertz

In Stock
Item: AJ2RRD Model: 131471.00Cross Ref: C184T48FB64C

Get it by Jun 5, Wednesday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€1,794.84 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemGeneral Purpose Motor
Assembly180-001
CodeH
DesignB
DutyContinuous
EnclosureTEFC
Frame184T
Full Load Amps2.9 / 2.9
HP2 / 1
Hz50/60
Insulation ClassF
kW1.49 / .75
LubricationPolyrex EM
Max. Ambient Temp.40
MountingRigid
PackagingB
Phase3
Power Factor88.6 / 49.5
RotationREV
RPM1800 / 1800
Service Factor1.0
Shaft Dia.1 1/8"
TypeTF
Voltage460 / 460

Shipping Info:

Ship weight (kg) 31.95
Ship height (cm)34.14
Ship length (cm)46.51
Ship width (cm)34.29

Product Details:

  • Bearing OPE: 6205
  • Bearing PE: 6206
  • Nameplate: 004001
  • Winding: T8(4-8)2
  • GROUP: 2
  • Paint: BLUE - LEESON (ENAMEL)
  • Eff 100%: 80 / 64

Product Variants

ProductModelkWRPMAssemblyPower FactorDesignShaft Dia.FrameFull Load AmpsPrice
LEESON 131470.00 C184T48FB63C Definite Purpose Motor 50-60 Hertz | AJ2RRC C184T48FB63C 131470.002.24 / 1.121800 / 900180-00185 / 542VT1 1/8"184T3.8 / 3.5€2,036.84
LEESON 140445.00 C215T48FB43C General Purpose Motor 50-60 Hertz | AJ2RYN C215T48FB43C 140445.003.7 / 1.871800 / 1800210-001.0188.8 / 48.8-1 3/8"215T6.7 / 7€2,660.16
