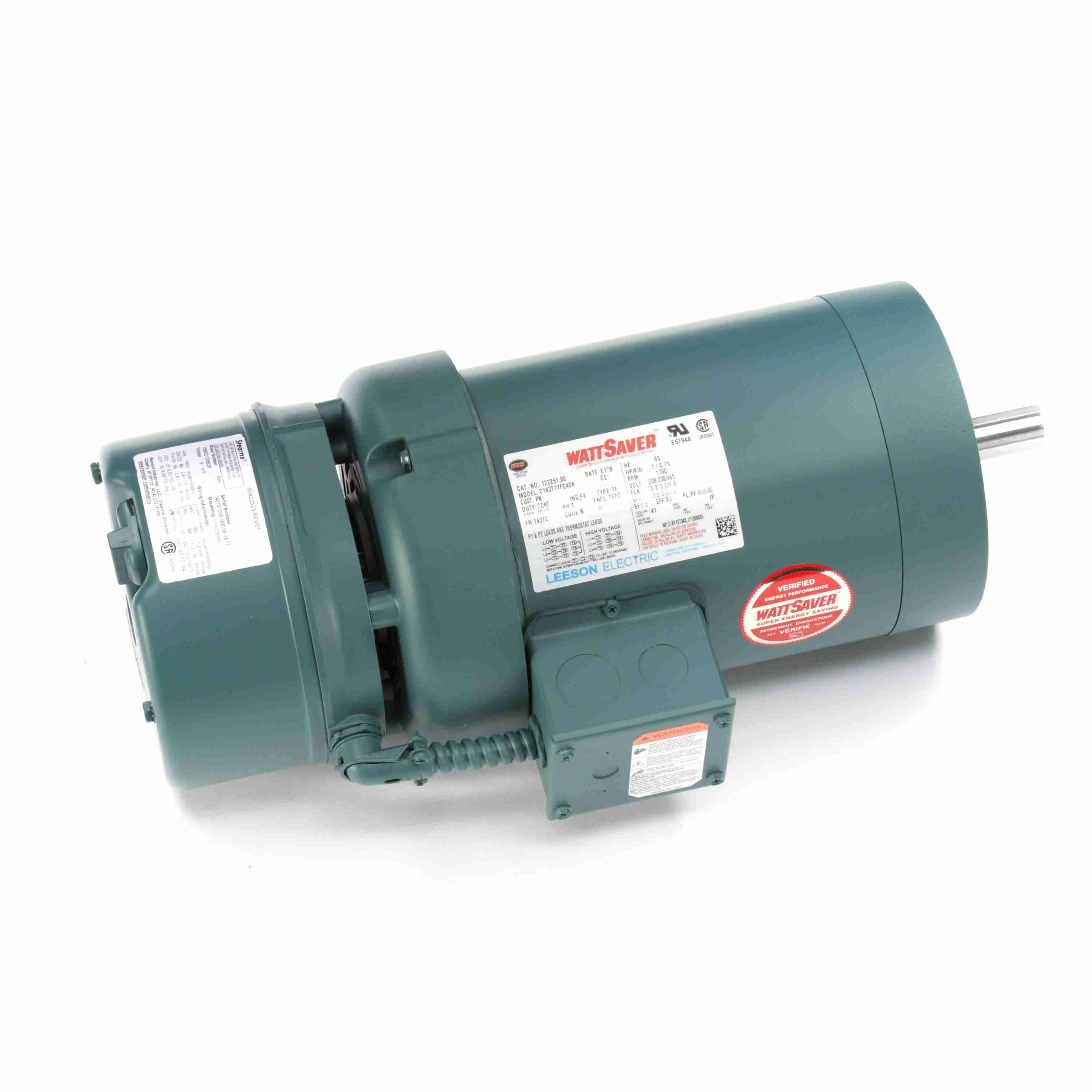

LEESON 122251.00 C143T17FC42A Brake Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Tuesday, Jun 17
€1,590.86 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Brake Motor |
| Application | Brake Motor |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Break-down Torque | 15.8 lbs.-ft. |
| Code | N |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B, N |
| Duty Cycle | Continuous |
| Frame | 143TC |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.7A |
| Grease Type | Polyrex EM |
| Hp | 1 hp |
| Includes | Key |
| Insulation Class | Class F |
| Inverter Rated | No |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 1760 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Output Kw | 0.75 kW |
| Overall Length | 17 11/16" |
| Packaging | B |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 68.5 |
| Rpm Range | 1701-1800 RPM |
| Series | Series 56000 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | Thermostat |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Brake Model/series | Series 56000 |
| Brake Rating | 6 lbs.-ft. |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 15 1/2" |
| Manufacturers Warranty Length | 18 Months |
| Motor Application | Brake Motor |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | Thermostat |
| Standards | CSA, UL RECOGNIZED |
| Weight | 57 lbs. |
| Ship weight (kg) | 25.65 |
| Ship height (cm) | 25.1 |
| Ship length (cm) | 58.12 |
| Ship width (cm) | 26.82 |
| Country of Origin | US |
| Product | Model | Design | Enclosure | Frame | Full Load Amps | HP | Hz | Insulation Class | kW | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
114158 | - | TENV | 56C | 1.4-1.3 / .65 | 1/3 | 60 | B | .246 | €1,030.22 | |
 |
114159 | B | TEFC | 56C | 2 / 1 | 1/2 | 60 | B | 0.37 | €1,120.69 | |
 |
114160 | B | TEFC | 56C | 2.8 / 1.4 | 3/4 | 60 | B | 0.56 | €1,314.86 | |
 |
119564 | B | TEFC | 56C | 3.2-3.2 / 1.6 | 1 | 60 | F | 0.75 | €1,582.22 | |
 |
119565 | C | TEFC | 56C | 4.6-4.8 / 2.4 | 1 1/2 / 1 | 50/60 | F | 1.12 / 0.75 | €1,774.66 | |
 |
122252 | C | TEFC | 145 C | 4.6-4.8 / 2.4 | 1.5 | 60 | F | 1.12 | €1,787.35 | |
 |
122253 | B | TEFC | 145TC | 6-5.8 / 2.9 | 2 | 60 | F | 1.49 | €1,836.32 |
