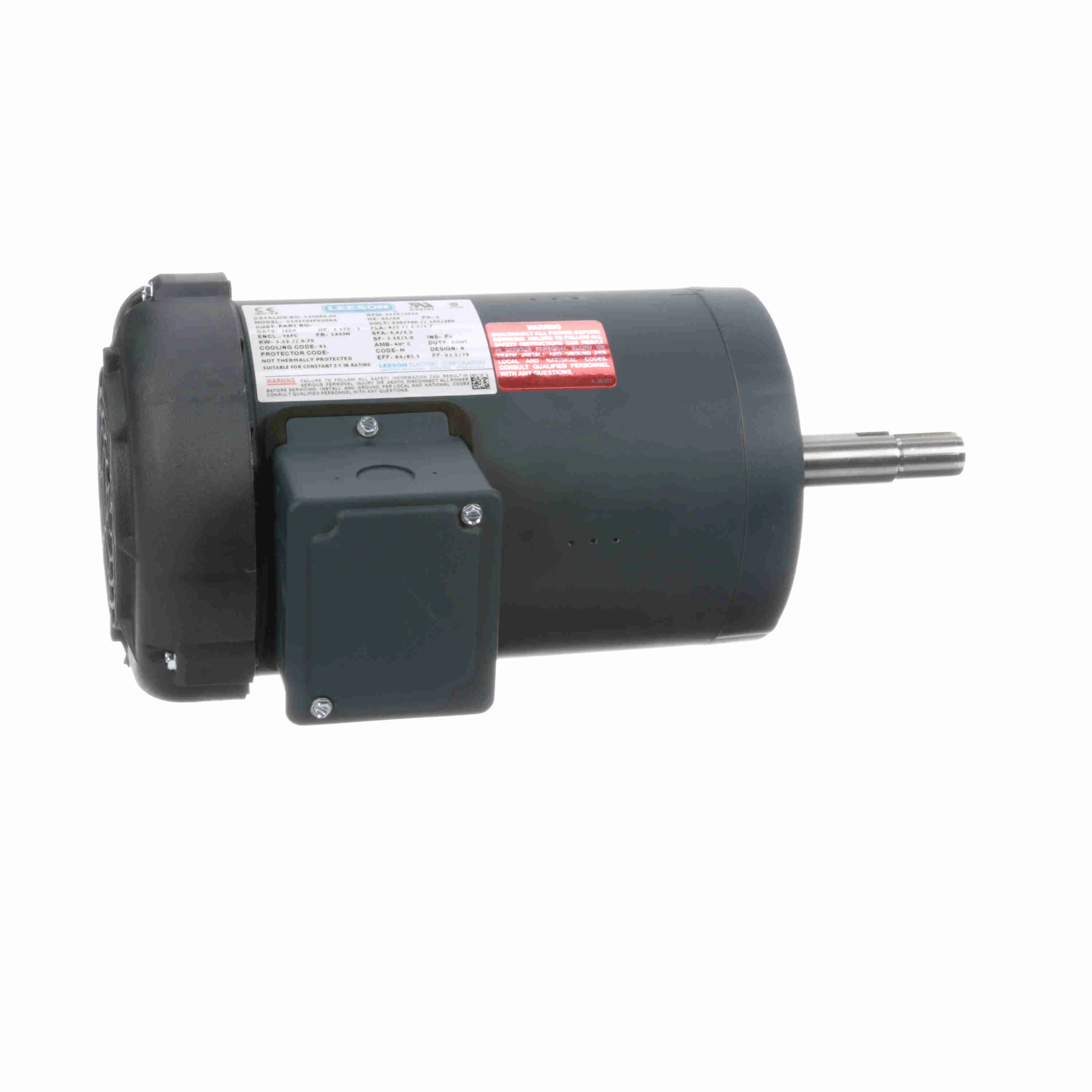

LEESON 122086.00 C143T34FC20AA Close Coupled Pump Motor, 1.50/1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 RPM
Get it by Tuesday, Jun 17
€177.10 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Jet Pump Motor |
| Amps | 4/2A |
| Code | M |
| Conduit Box Position | F1 |
| Design | B |
| Duty Cycle | Continuous |
| Frame | 143JM |
| Frequency | 50/60 Hz |
| Hp | 1 1/2 hp, 1 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Round |
| Nameplate Rpm | 3600/3000 RPM |
| Packaging | F |
| Phase | 3 |
| Power | 1.12 kW |
| Power Factor | 83.5 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 7/25" |
| Type | TF |
| Voltage | 230/460V AC |
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | kW | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|
 |
122090 | 145JMV | 5 / 2.5 | 2 / 1 1/2 | 1.49 / 1.12 | 86 / 85 | €240.78 |
