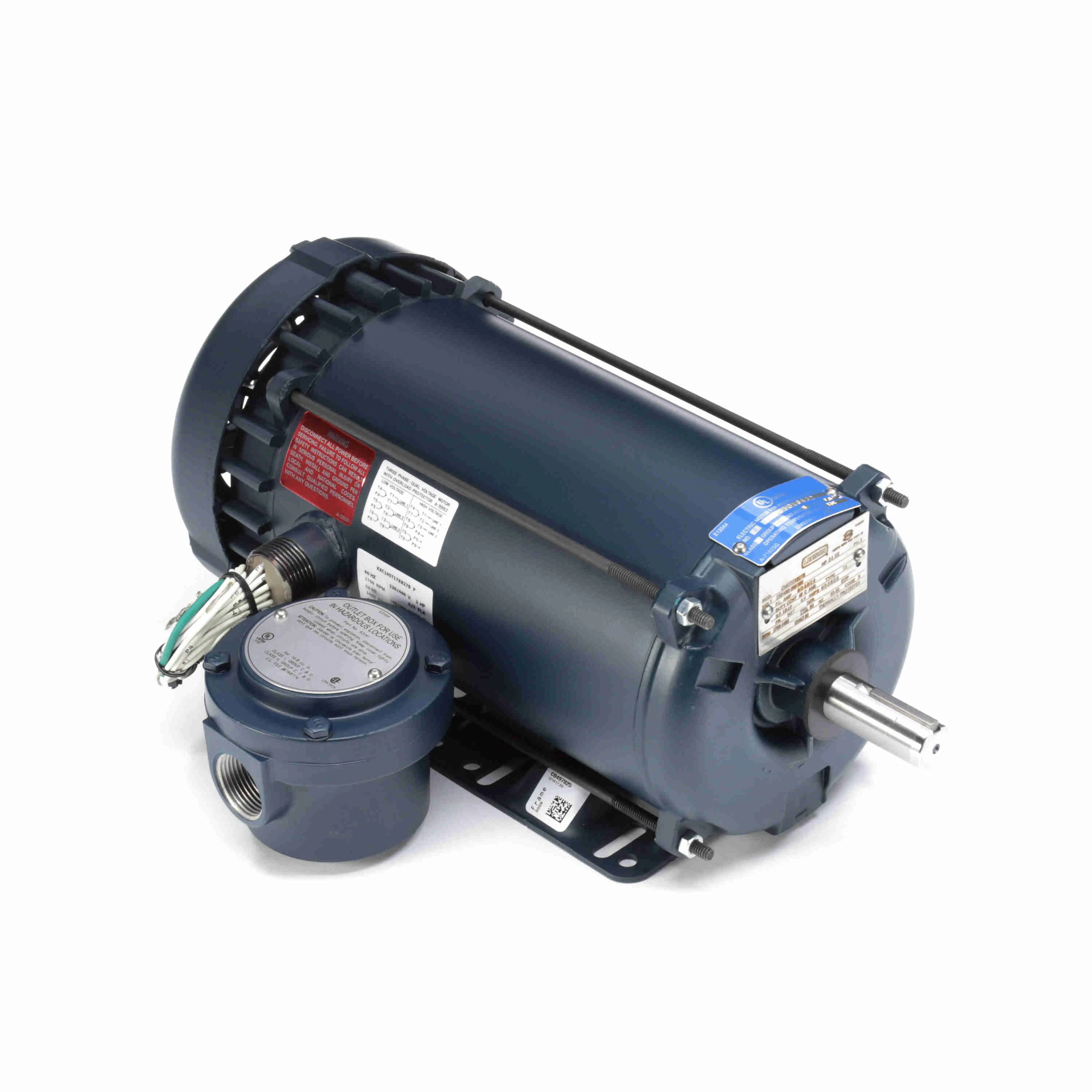

| Item | Explosion Proof Motor |
| Code | N |
| Design | B |
| Duty | Continuous |
| Enclosure | EPFC |
| Frame | 145T |
| Full Load Amps | 6 / 3 |
| Hazardous Location Class | EXP PROOF CL I GR C&D CL II GR F&G T3C |
| HP | 2 / 1 1/2 |
| Hz | 50/60 |
| Insulation Class | B |
| kW | 1.49 / 1.12 |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40 |
| Motor Thermal Protection | CWJ52KL |
| Mounting | Rigid |
| Packaging | F |
| Phase | 3 |
| Power Factor | 71 / 70 |
| Protection | AUTOMATIC |
| Rotation | REV |
| RPM | 1800 / 1500 |
| Service Factor | 1.0 |
| Shaft Dia. | 6/7" |
| Type | TX |
| Voltage | 230 / 460 |
| Ship weight (kg) | 27 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| Product | Model | Packaging | Design | Frame | Power Factor | RPM | Voltage | Full Load Amps | HP | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
119426.00 | F | A | 56H | 68 / 65 | 1800 / 1500 | 208-230 / 460 | 3.3-3.3 / 1.65 | 3/4 / 1 | €1,390.27 | |
 |
121915.00 | F | B | 145T | 71 / 64 | 1800 / 1500 | 230 / 460 | 4.6 / 2.3 | 1 / 1 1/2 | €1,378.67 | |
 |
121916.00 | F | B | 145T | 86 / 87 | 3600 / 3000 | 230 / 460 | 5 / 2.5 | 2 | €1,278.45 | |
|
122024.00 | B | A | 145T | 71 | 1800 | 230 / 460 | 4.6 / 2.3 | 1.5 | - | RFQ
|
|
122025.00 | B | A | 145T | 71 | 1800 | 230 / 460 | 6 / 3 | 2 | - | RFQ
|
