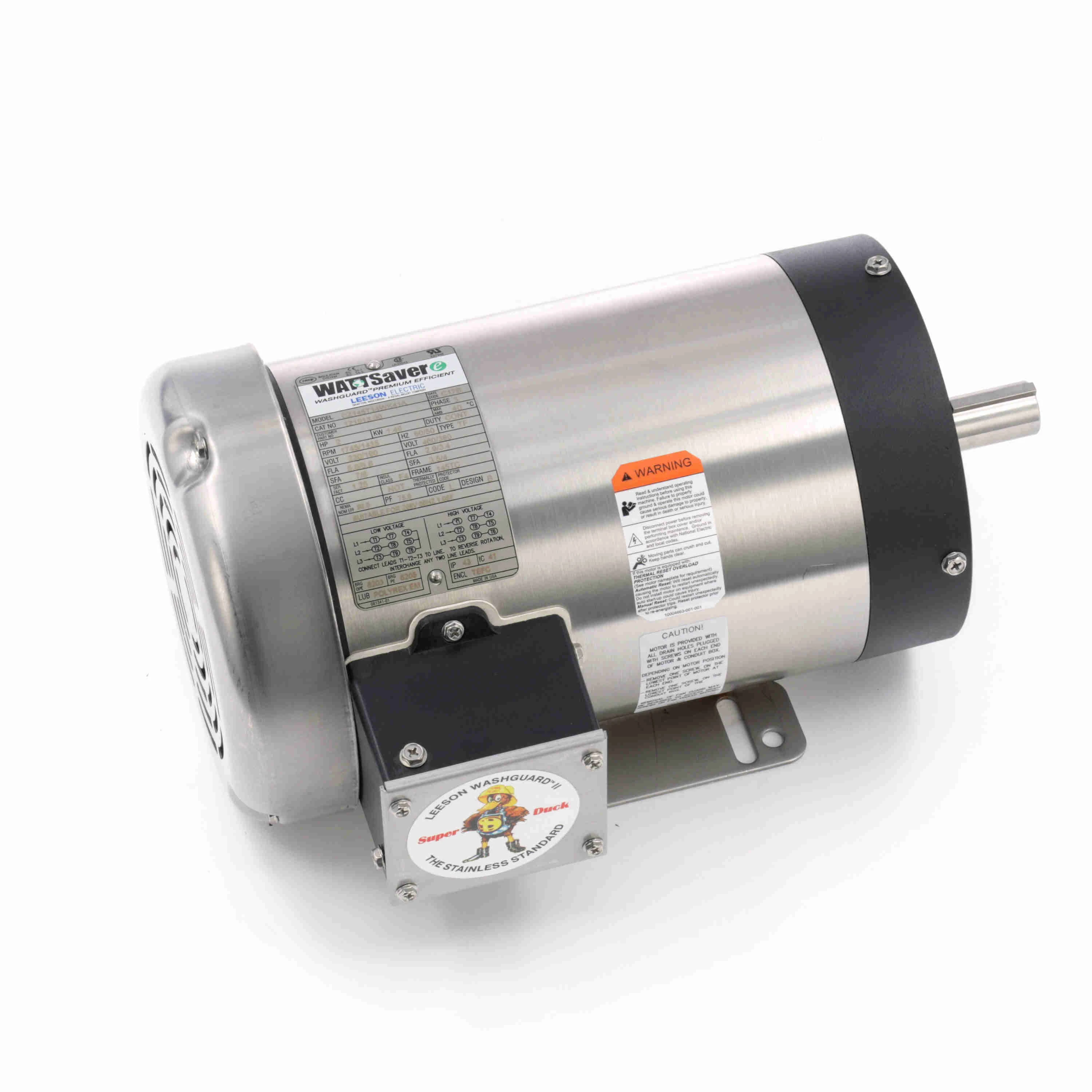

LEESON 121913.00 CZ145T14WK41A General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Monday, Jun 16
€1,308.65 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Code | L |
| Duty Cycle | Continuous |
| Finish | Paint Free |
| Frame | 145TC |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.8/2.9A |
| Grease Type | Polyrex EM |
| Hp | 2 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B |
| Phase | 3 |
| Power | 1.49 kW |
| Power Factor | 75.6 |
| Rotation | Reversible |
| Service Factor | 1.25 |
| Shaft Dia. | 7/8" |
| Type | TF |
| Voltage | 230/460V AC |
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
