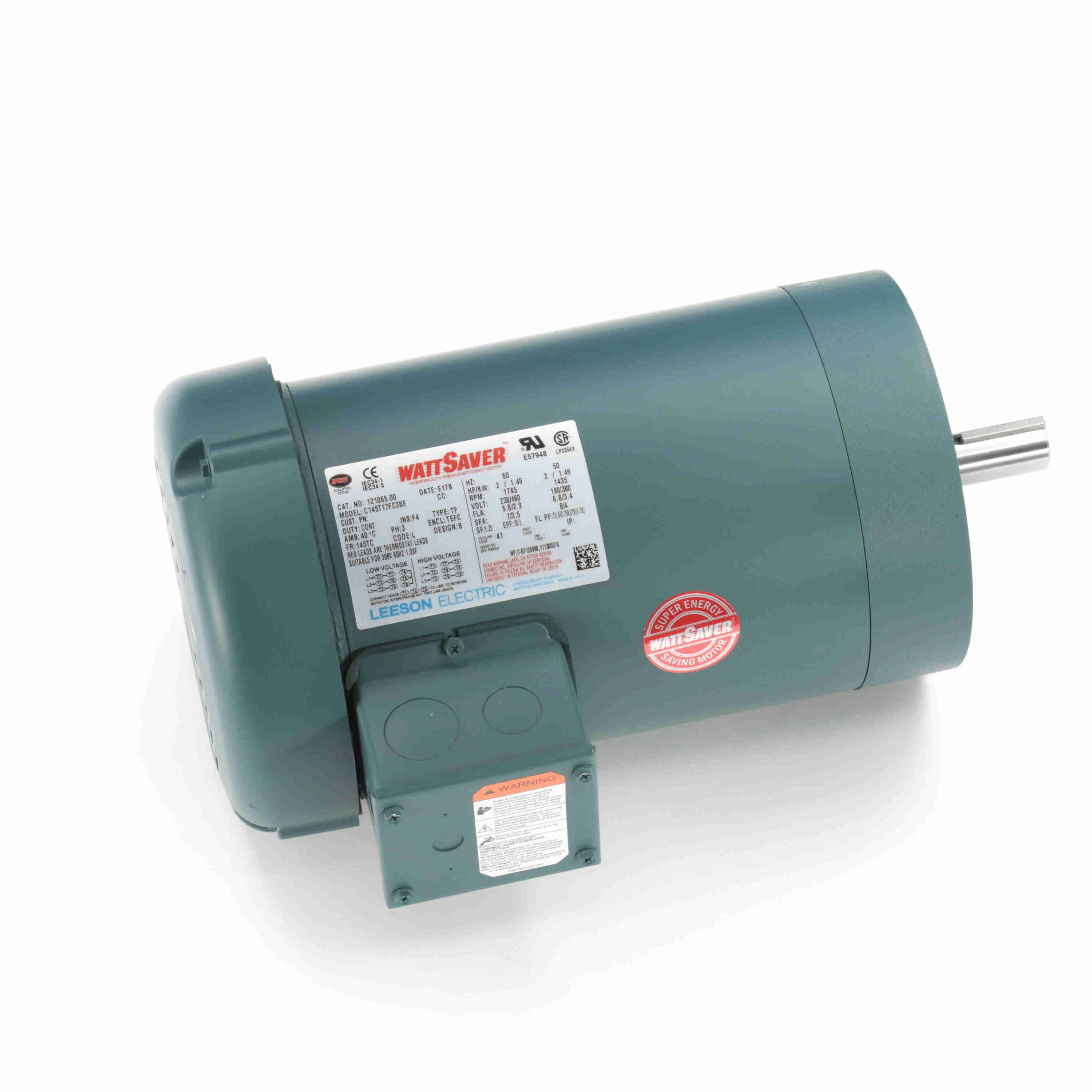

LEESON 121065.00 C145T17FC38E General Purpose Motor 50-60 Hertz | AJ2RHB C145T17FC38E

LEESON 121065.00 C145T17FC38E General Purpose Motor, 2 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM

Item: AJ2RHBModel: 121065.00Cross Ref: C145T17FC38E
See variants (24)
In Stock

Get it by Tuesday, Jun 17

€1,011.21 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemGeneral Purpose Motor
Ambient Temp.40°C
CodeL
Conduit Box PositionF1
Duty CycleContinuous
Frame145TC
Frequency50/60 Hz
Full Load Amps5.8/2.9A
Grease TypePolyrex EM
Hp2 hp
Insulation ClassClass F
LubricationPolyrex EM
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Shaft DesignKeyed
Motor Shaft RotationReversible
Motor TypeSquirrel Cage Induction Run
Mounting TypeC Face, Footless
Nameplate Rpm1800/1500 RPM
Nema DesignB, L
Output Kw1.49 kW
PackagingB
Phase3
Power Factor75.6, 79
Rpm Range1701-1800 RPM
Service Factor1.25
Shaft Dia.7/8"
Thermal ProtectionThermostat
TypeTF
Voltage230/460V AC

Shipping Info:

Ship weight (kg) 20.7
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Supersedes Leeson - G120038.00
    • Eff 100%: 86.5
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 993500
    • Winding: T634340
    • GROUP: 3
    • Paint: GREEN - LEESON WATTSAVER
    • S. F Amps: 7 / 3.5

Product Variants

ProductModelAssemblyEnclosureFrameFull Load AmpsHPHzInsulation ClasskWPrice
LEESON 101769.00 C4T17FC10B General Purpose Motor | AJ2PMG C4T17FC10B 101769LO101769TEFCS56C1.5-1.6 / .81/360B0.25€628.89
LEESON 101780.00 C4T17FC12C General Purpose Motor 50-60 Hertz | AJ2PMK C4T17FC12C 101780LO101780TEFCS56C1.8-1.8 / .91/250/60F.37€610.76
LEESON 101981.00 C4T17FC19C General Purpose Motor | AJ2PMQ C4T17FC19C 101981LO101981TEFC48C1.2-1.4 / .71/460B0.19€387.20
LEESON 102860.00 C4T17FC40A General Purpose Motor | AJ2PNV C4T17FC40A 102860LO102860TEFCS56C1.9-2 / 11/260B0.37€475.36
LEESON 102861.00 C4T17NC46A General Purpose Motor | AJ2PNW C4T17NC46A 102861LO102861TENVS56C1.8-1.8 / .91/260B0.37€494.94
RFQ
LEESON 102863.00 C4T17NC47A General Purpose Motor | AJ2PNY C4T17NC47A 102863LO102863TENVS56C1.3 / .651/360B0.25€417.74
LEESON 110047.00 C6T17FC1G General Purpose Motor | AJ2PZX C6T17FC1G 110047-TEFC56C2.8 / 1.43/460B0.56€512.81
