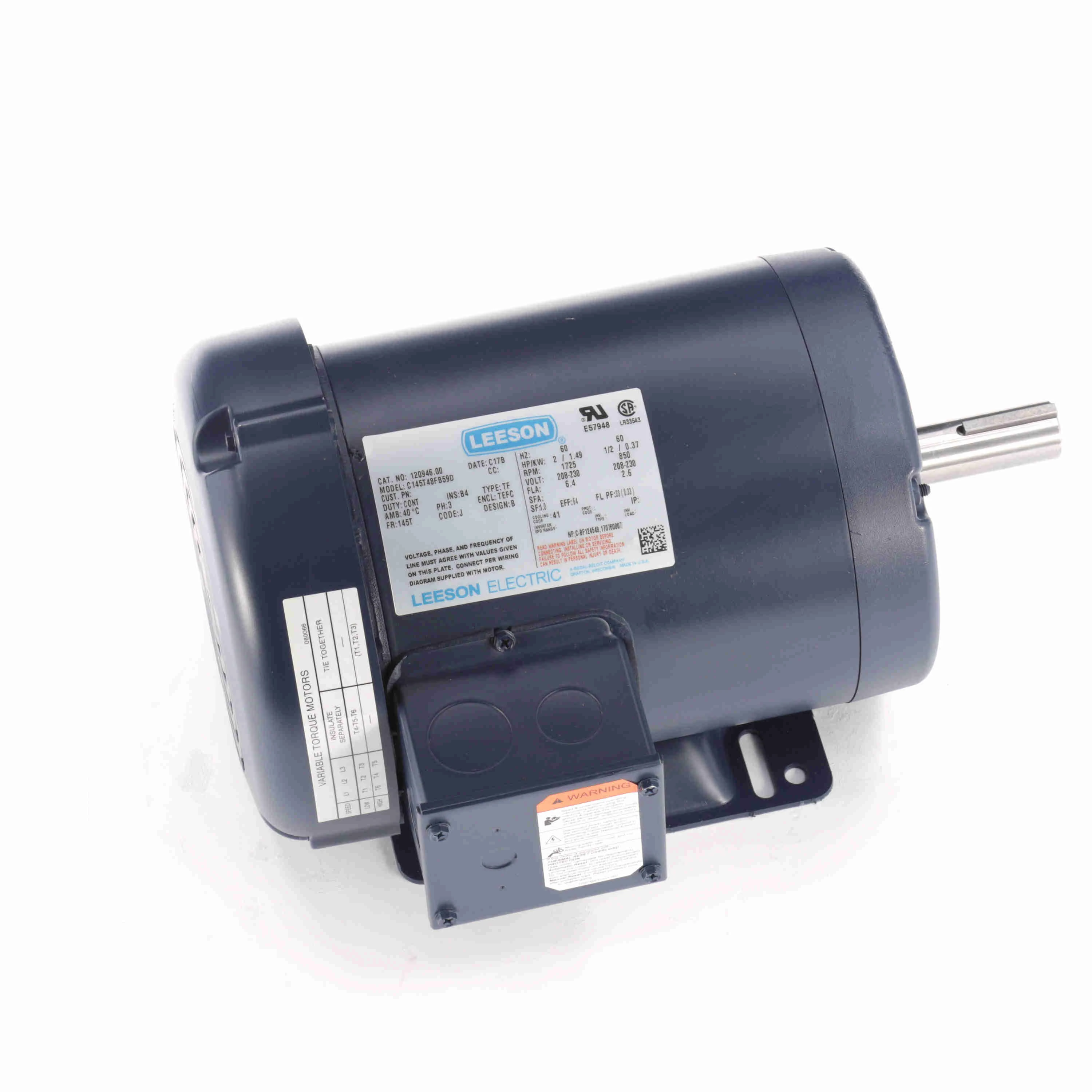

LEESON 120946.00 C145T48FB59D General Purpose Motor 50-60 Hertz | AJ2RGK C145T48FB59D

LEESON 120946.00 C145T48FB59D General Purpose Motor 50-60 Hertz

In Stock
Item: AJ2RGK Model: 120946.00Cross Ref: C145T48FB59D

Get it by May 24, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€1,290.06 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemHVAC Motor
CodeJ
DesignB
DutyContinuous
EnclosureTEFC
Frame145T
Full Load Amps6.4 / 2.6
HP2 / 1/2
Hz50/60
Insulation ClassB
kW1.49 / 0.37
LubricationPolyrex EM
Max. Ambient Temp.40
MountingRigid
PackagingB
Phase3
Power Factor33
RotationREV
RPM1800 / 1800
Service Factor1.0
Shaft Dia.7/8"
TypeTF
Voltage208-230 / 208-230

Shipping Info:

Ship weight (kg) 17.1
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52

Product Details:

  • Eff 100%: 64
  • Bearing OPE: 6203
  • Bearing PE: 6205
  • Nameplate: 993500
  • Winding: T63(4-8)33
  • GROUP: 2
  • Paint: BLUE - LEESON (ENAMEL)

Product Variants

ProductModelFull Load AmpsHPInsulation ClasskWPower FactorPrice
LEESON 120947.00 C145T48FB61D General Purpose Motor 50-60 Hertz | AJ2RGL C145T48FB61D 120947.004.8 / 21 1/2 / 3/8F1.12 / .27674.5 / 51.5€1,111.01
