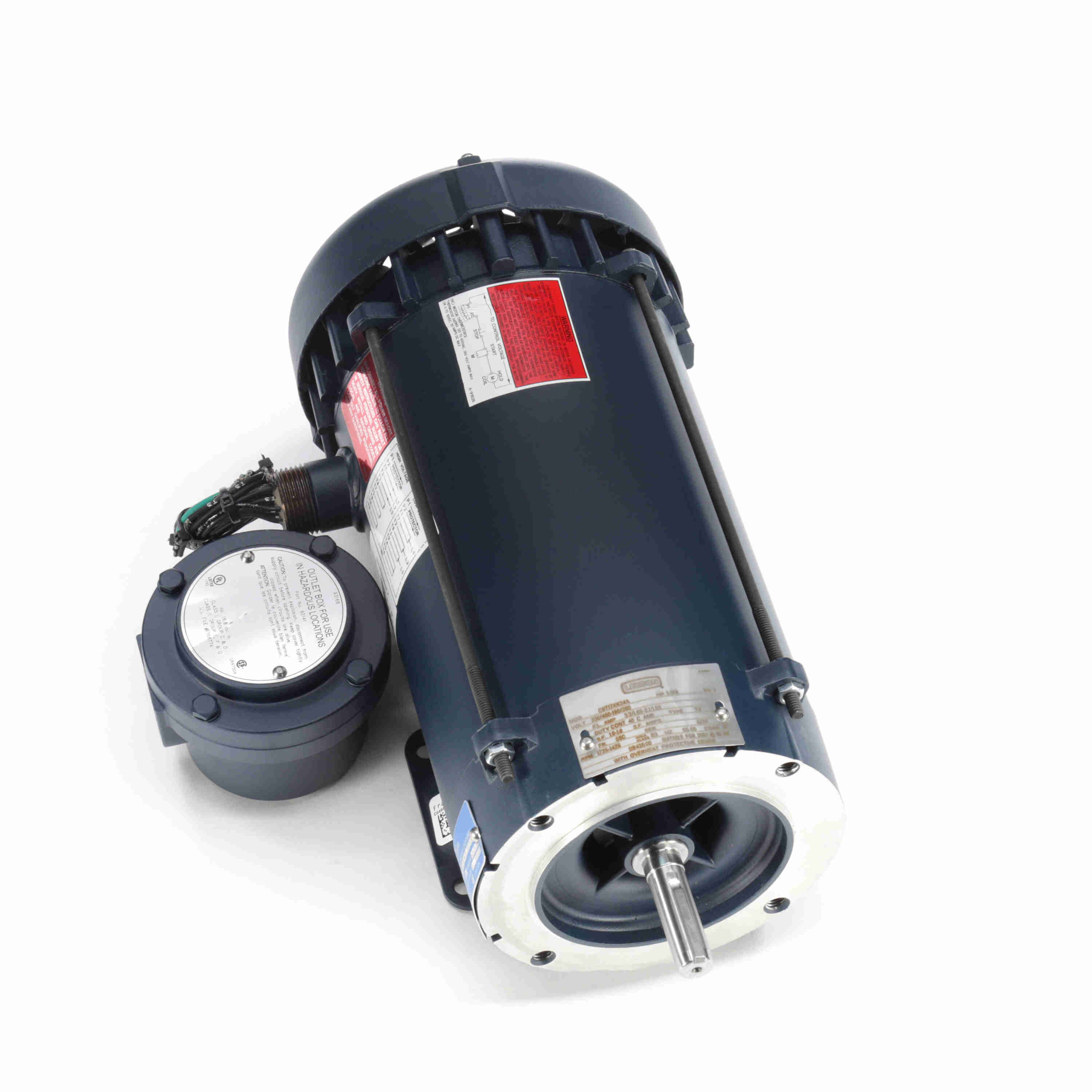

LEESON 119438.00 C6T17XK34A / 6T17XK34A Explosion Proof Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Jun 17
€1,348.86 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Code | P |
| Design | B |
| Duty Cycle | Continuous |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 56C |
| Frequency | 50/60 Hz |
| Hazardous Location Class | EXP Proof CL I GR C&D CL II GR F&G T3C |
| Hp | 1/3 hp |
| Lubrication | Polyrex EM |
| Motor Shaft Rotation | Reversible |
| Mounting Type | Rigid Base |
| Packaging | F |
| Phase | 3 |
| Service Factor | 1 |
| Thermal Protection | Thermostat |
| Type | TX |
| Ship weight (kg) | 21.87 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| Country of Origin | MX |
| Product | Model | Assembly | Enclosure | Frame | Full Load Amps | Hazardous Location Class | HP | Hz | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
114626 | - | EPNV | 56C | 1.2-1.2 / .6 | EXP PROOF CL I GR C&D CL II GR F&G T3C | 1/3 | 50/60 | B | €1,087.27 | |
 |
114628 | B-LO6421C-681 | EPNV | 56C | 1.8-1.6 / .8 | EXP PROOF CL I GR C&D CL II GR F&G T3C | 1/2 | 50/60 | B | €1,136.25 | |
 |
114630 | - | EPFC | 56C | 2.9-3 / 1.5 | EXP PROOF CL I GR C&D CL II GR F&G T3C | 3/4 / 1/2 | 50/60 | B | €1,161.03 | |
 |
116190 | - | EPFC | 56C | 2.3-2.4 / 1.2 | EXP PROOF CL I GR C&D CL II GR F&G T3C | 1/2 | 60 | F | €1,101.11 | |
 |
116191 | - | EPFC | 56C | 2.6-3 / 1.5 | EXP PROOF CL I GR C&D CL II GR F&G T3C | 3/4 | 60 | F | €1,136.25 | |
 |
117859 | - | EPNV | 56C | 1.2-1.2 / .6 | EXP PROOF CL I GR C&D CL II GR F&G T3C | 1/3 | 50/60 | B | €1,036.57 | |
 |
119436 | - | EPFC | 56C | 3 / 1.5 | EXP PROOF CL I GR C&D CL II GR F&G T3C | 1 / 3/4 | 50/60 | B | €1,279.14 |
