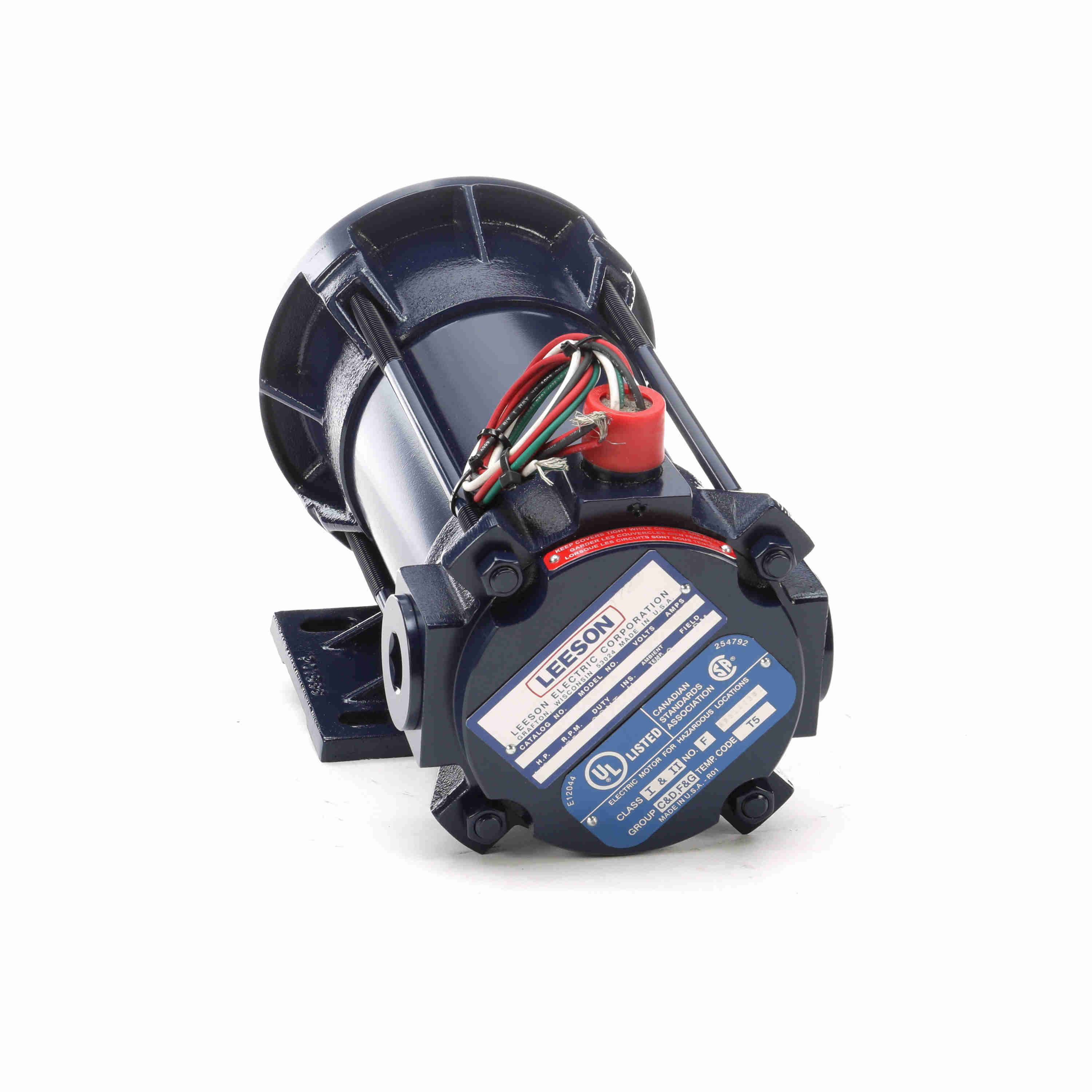

LEESON 118015.00 C6D17EK1 / C6D17EK1A Explosion Proof Motor, 0.33 HP, 90V, 1750 RPM
Get it by Tuesday, Jun 17
€2,138.70 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Frame | 56C |
| Frame Material | Steel |
| Full Load Amps | 3.5A |
| Hazardous Location Class | 1C, D/2F, G |
| Hp | 1/3 hp |
| Includes | 6" Leads Through 3/4-14 NPT |
| Insulation Class | Class H |
| Lead Length | 6" |
| Motor Application | Hazardous Location |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.9% |
| Overall Length | 13 7/16" |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/8" |
| Temp. Code | T5 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 90V DC |
| Ins. Class | Class H |
| Length Less Shaft | 11 5/16" |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Standards | CSA, UL RECOGNIZED |
| Weight | 164 lbs. |
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 44.22 |
| Ship width (cm) | 26.67 |
| HS code | 8501314000 |
| Country of Origin | US |
