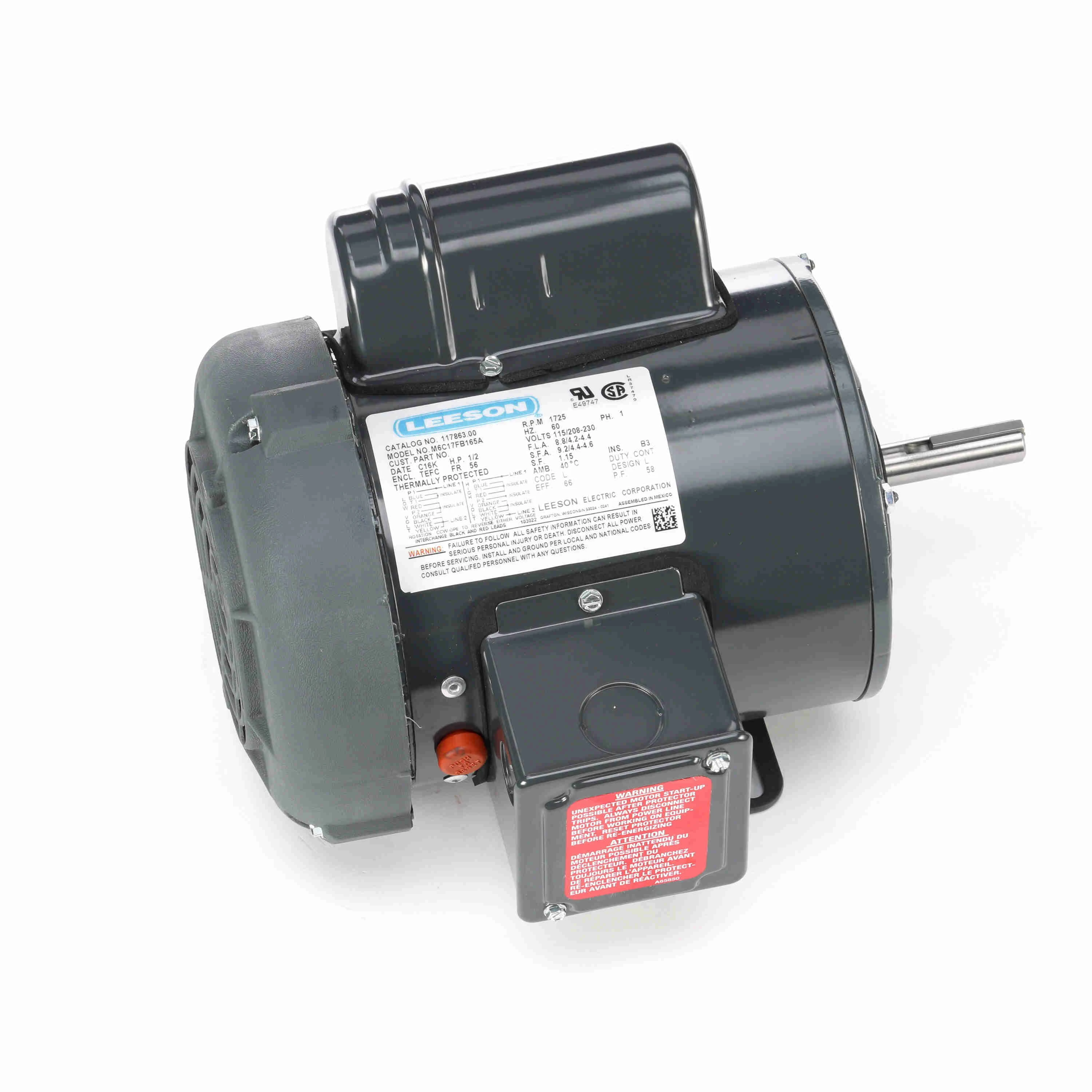

LEESON 117863.00 M6C17FB165A Agricultural Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€382.88 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Farm Duty Motor |
| Code | L |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.2-4.4A |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | L |
| Output Power | 0.37 kW |
| Packaging | F |
| Phase | 1 |
| Power Factor | 58 |
| Service Factor | 1.15 |
| Thermal Protection | Manual |
| Type | CF |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 31.12 |
| Country of Origin | MX |
| Product | Model | Design | Frame | Full Load Amps | HP | kW | Motor Thermal Protection | Power Factor | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
117862 | N | 56 | 6.6 / 3.1-3.3 | 1/3 | 0.25 | MED4772 | 60 | CF | €355.61 | |
 |
117864 | L | 56 | 11 / 5.4-5.5 | 3/4 | 0.56 | CED2791 | 71 | CF | €461.35 | |
 |
117865 | L | 56 | 13.4 / 6.8-6.7 | 1 | .75 | CED3706 | 69.5 | CF | €519.07 | |
 |
117866 | L | 56H | 15.2 / 8.2-7.6 | 1.5 | 1.12 | BRD2997 | 80 | KF | €631.17 | |
 |
117867 | L | 56HZ | 18.8 / 9.4 | 2 | 1.49 | BRJ45DA | 86.1 | KF | €721.58 | RFQ
|
