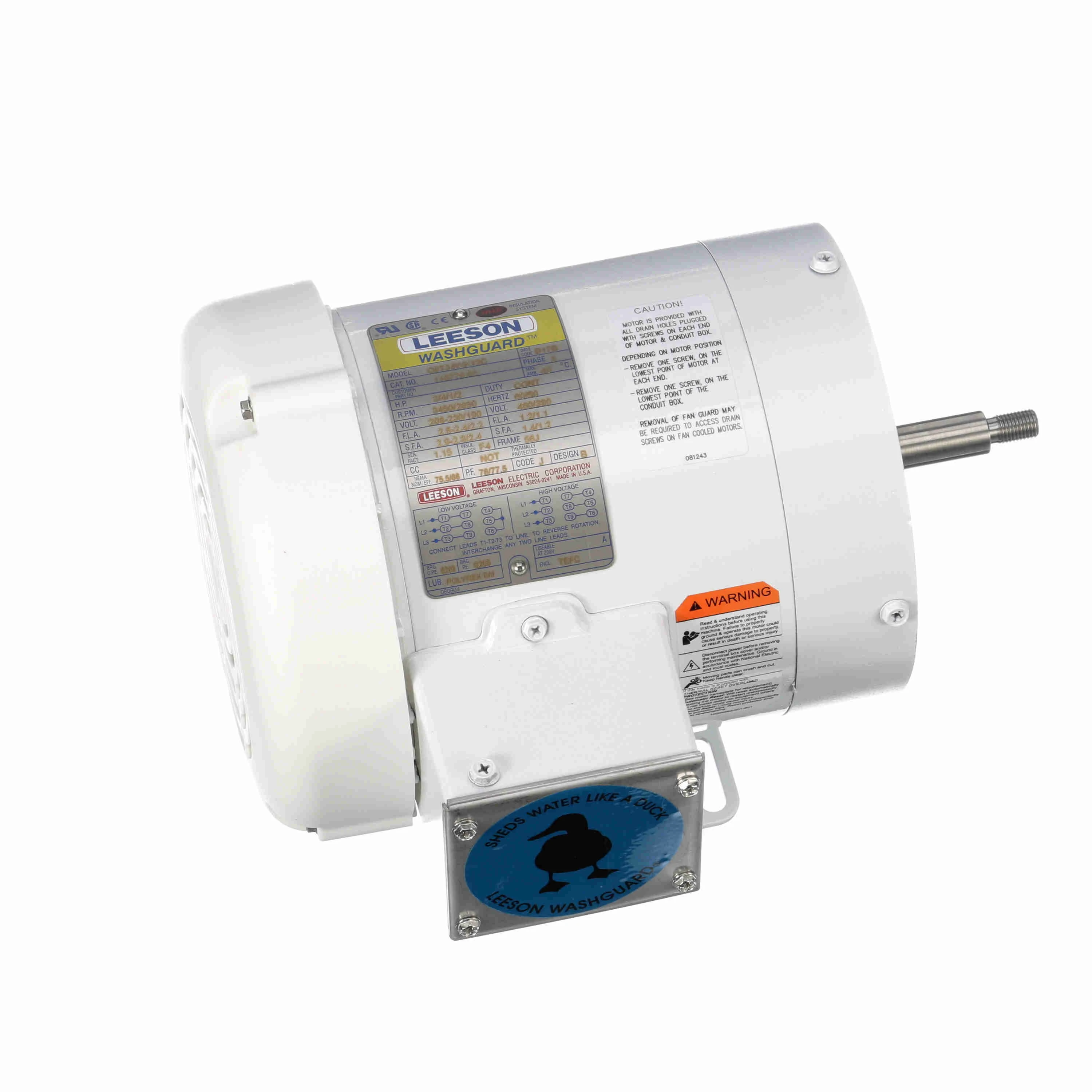

LEESON 116779.00 C6T34WK12C Jet Pump Motor, 0.75/0.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 3600 and 3000 RPM
Get it by Tuesday, Jun 17
€687.07 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Jet Pump Motor |
| Ambient Temp. | 104°F |
| Bearing Type | Ball |
| Body Dia. | 7.38" |
| Bolt Circle Dia. | 5 7/8" |
| Code | J |
| Color | White |
| Design | B |
| Drain Plug | (4) Each End, (2) In Conduit Box |
| Duty Cycle | Continuous |
| Endshield Material | Aluminum |
| Finish | Epoxy Coated |
| Frame | 56J |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.2A |
| Grease Type | Polyrex EM |
| Hp | 3/4 hp |
| Includes | Splice Kit |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Application | Pool And Spa Pump |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Base/Face |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 75.5% |
| Overall Length | 11 3/8" |
| Packaging | B |
| Phase | 3 |
| Power | 0.56 kW |
| Power Factor | 78 |
| Removable Base | No |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 7/16" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Drain Plugs | (4) Each End, (2)" Conduit Box |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 8 15/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Sub Application | Pool And Spa Pump |
| Motor Thermal Protection | None |
| Nema Design | NEMA B |
| Product Type | Washdown Jet Pump Motor |
| Standards | BISSC, CE, CSA, UL |
| Weight | 24 lbs. |
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
