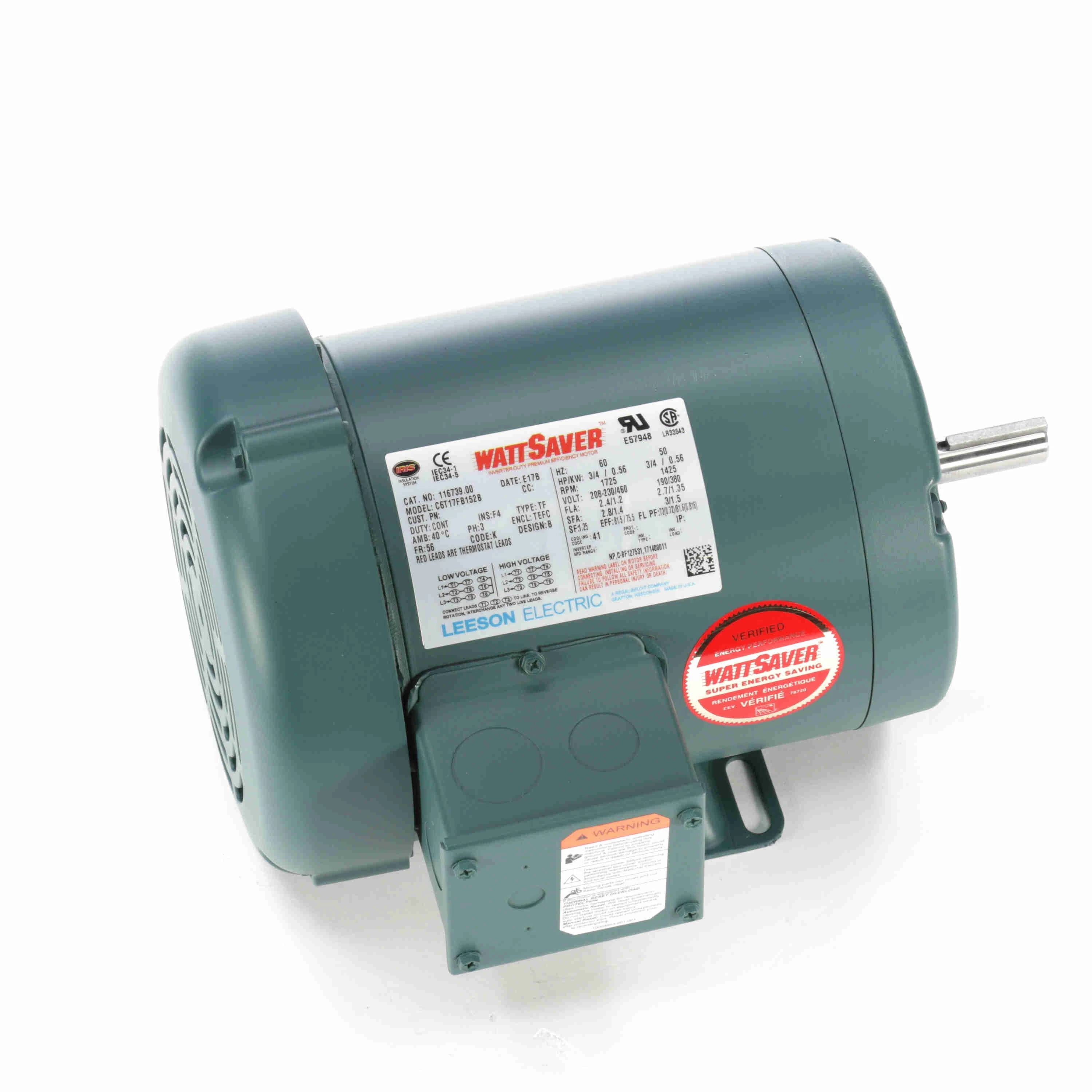

| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | K |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.4/1.2A |
| Grease Type | Polyrex EM |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B, K |
| Output Kw | 0.56 kW |
| Packaging | B |
| Phase | 3 |
| Power Factor | 72, 81.6 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Thermal Protection | Automatic |
| Type | TF |
| Voltage | 208-230/460V AC |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
