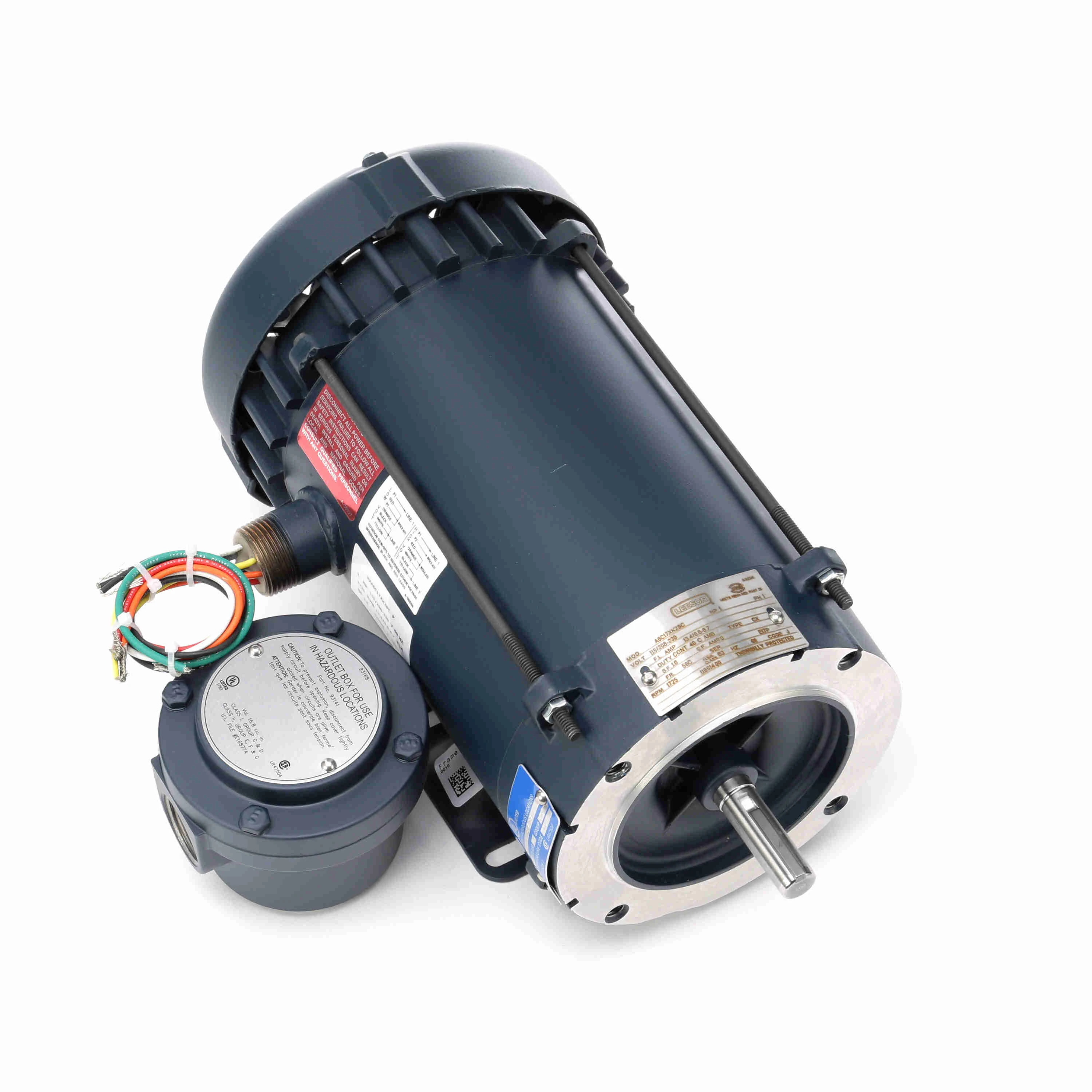

LEESON 116614.00 A6C17XK29C / 6C17XK29C Explosion Proof Motor, 1 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Tuesday, Jun 17
€1,253.79 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Assembly | A-S90887 |
| Code | J |
| Design | N |
| Duty Cycle | Continuous |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 13.4/6.8-6.7A |
| Grease Type | Polyrex EM |
| Hazardous Location Class | 1C, D/2F, G |
| Hp | 1 hp |
| Insulation Class | Class B |
| Lubrication | Polyrex EM |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Output Rating | 0.75 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 69.5 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | CX |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 18 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
| Product | Model | Assembly | Design | Full Load Amps | HP | kW | Motor Thermal Protection | Power Factor | RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
116605 | A-S90894 | N | 7 / 3.2-3.5 | 1/3 | .246 | CEJ66CV | 58 | 3600 | €889.06 | |
 |
116606 | 042524 | N | 6.6 / 3.1-3.3 | 1/3 | .246 | MGJ57AL | 60 | 1800 | €928.24 | |
 |
116607 | A-S90894 | N | 7.8 / 3.6-3.9 | 1/3 | .246 | MEJ56RX | 53.8 | 1200 | €1,064.22 | |
 |
116608 | A-S90887 | N | 8.4 / 4-4.2 | 1/2 | .37 | CEJ66CV | 70 | 3600 | €895.98 | |
 |
116609 | A-S90894 | N | 8.8 / 4.2-4.4 | 1/2 | .37 | MEJ36AV | 58 | 1800 | €1,030.22 | |
 |
116610 | 042524 | L | 9.6 / 4.7-4.8 | 1/2 | .37 | MEJ30AL | 56 | 1200 | €1,152.95 | |
 |
116611 | A-S90894 | N | 10.6 / 5.3-5.3 | 3/4 | .56 | CEJ52CV | 71.9 | 3600 | €958.79 |
