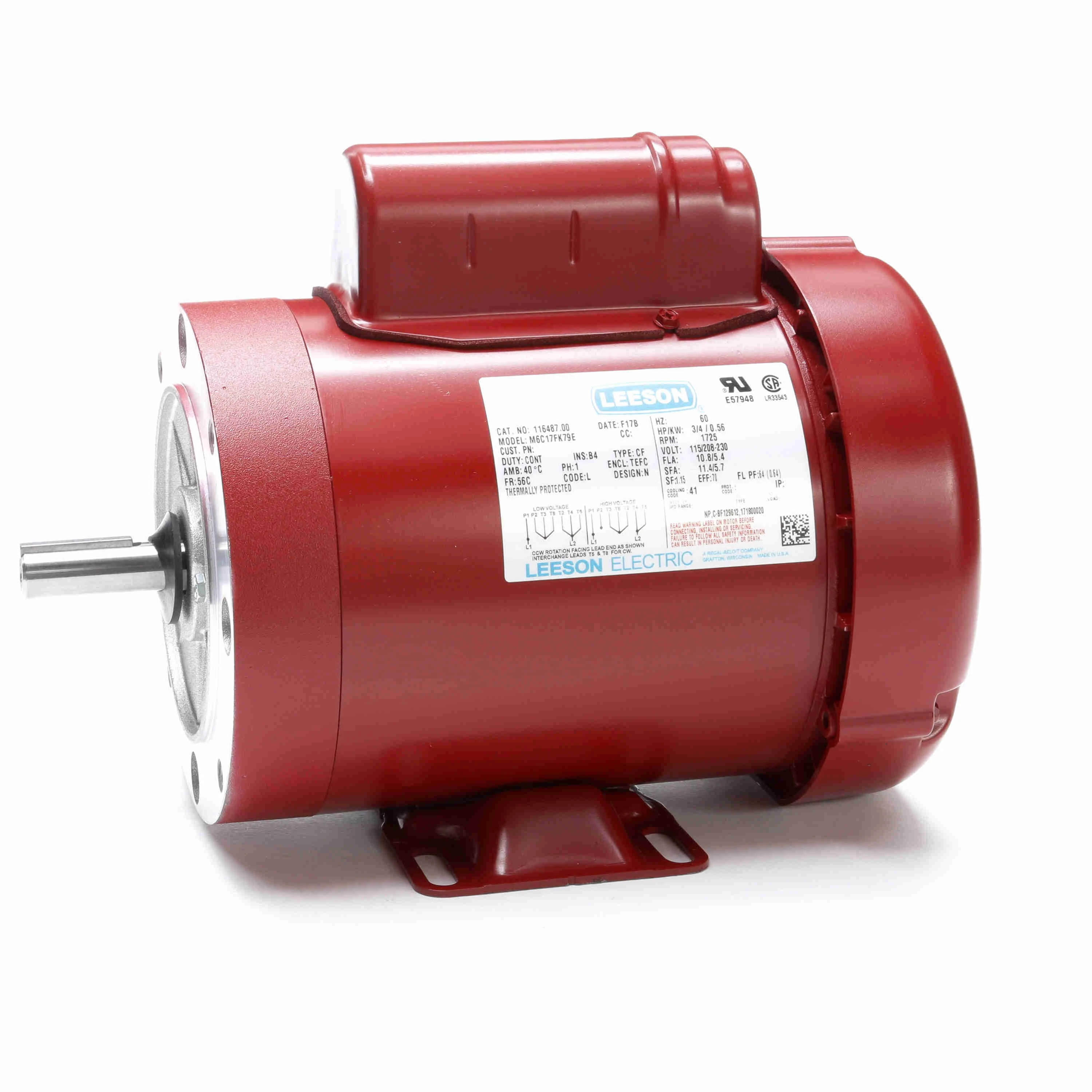

LEESON 116487.00 M6C17FK79E General Purpose Farm Duty Motor | AJ2QTD M6C17FK79E

LEESON 116487.00 M6C17FK79E General Purpose Farm Duty Motor

In Stock
Item: AJ2QTD Model: 116487.00Cross Ref: M6C17FK79E

Get it by Jun 17, Monday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€504.39 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemSingle Phase Motor
CodeL
DesignN
DutyContinuous
EnclosureTEFC
Frame56C
Full Load Amps10.8 / 5.4
HP3/4
Hz60
Insulation ClassB
kW0.56
LubricationPolyrex EM
Max. Ambient Temp.40
Motor Thermal ProtectionCED2715
MountingRigid
PackagingB
Phase1
Power Factor64
ProtectionMANUAL
RotationSELECTIVE CCW
RPM1800
Service Factor1.15
Shaft Dia.5/8"
TypeCF
Voltage115 / 208-230

Shipping Info:

Ship weight (kg) 13.05
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52

Product Details:

  • Eff 100%: 70
  • Bearing OPE: 6203
  • CC Number: EXEMPT
  • Bearing PE: 6203
  • Nameplate: 993500
  • Winding: C634258
  • GROUP: 3
  • Paint: RED - LEESON FARM DUTY
  • S. F Amps: 11.4 / 5.7

Product Variants

ProductModelFull Load AmpsHPkWMotor Thermal ProtectionPower FactorPrice
LEESON 116486.00 M6C17FK80E Single Phase Motor | AJ2QTC M6C17FK80E 116486.008.8 / 4.41/20.37CED470558€485.89
