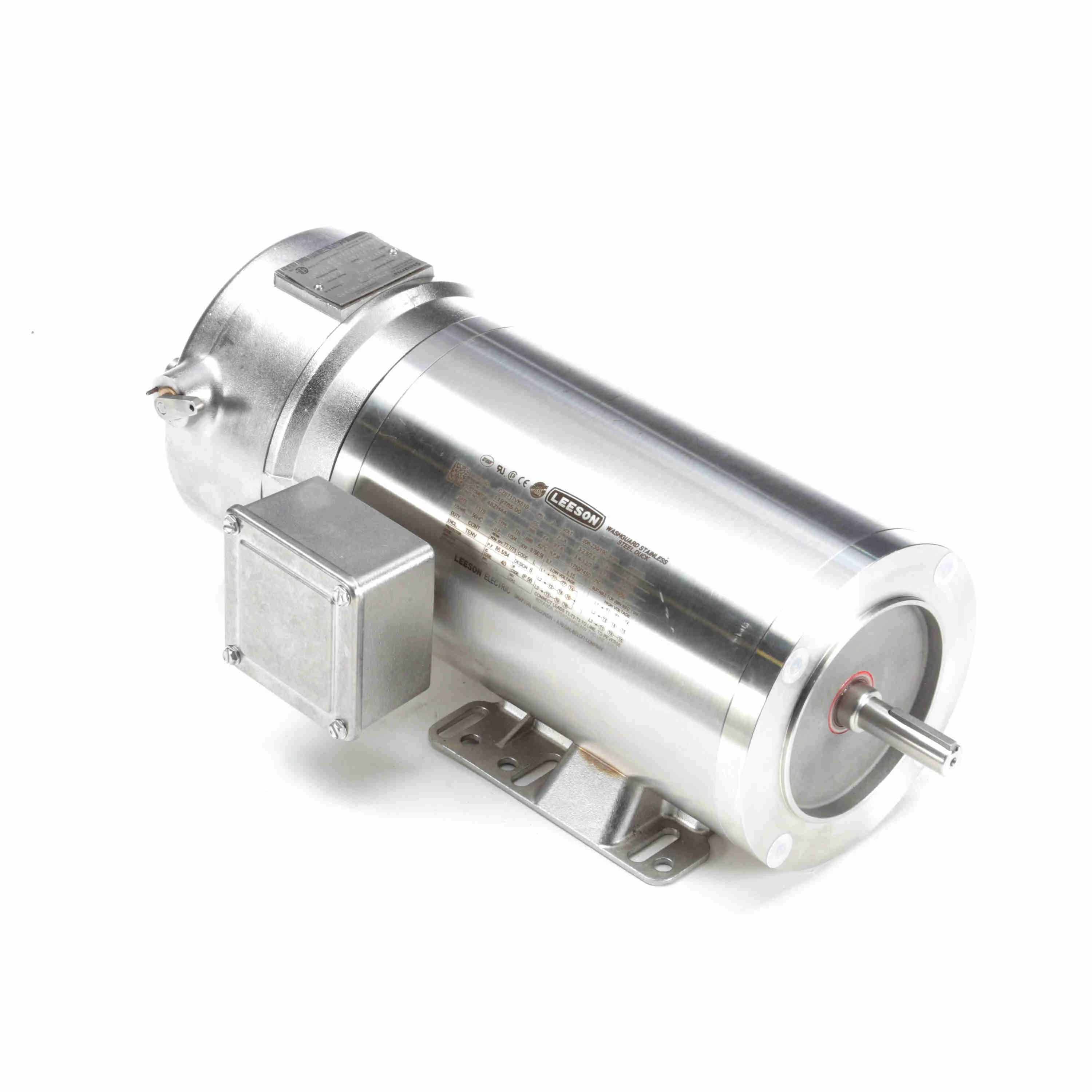

LEESON 116483.00 CZ6T17VK31A Brake Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Wednesday, Jun 18
€5,265.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Brake Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Assembly | 42538 |
| Bearing Type | Ball |
| Body Dia. | 6 14/25" |
| Bolt Circle Dia. | 5 7/8" |
| Code | K |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Design | B |
| Duty Cycle | Continuous |
| Finish | Unfinished |
| Frame | 56HC |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.6A |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| No. Of Speeds | 1 |
| Nominal Efficiency | 78.5% |
| Overall Length | 16 1/2" |
| Packaging | B |
| Phase | 3 |
| Power | 0.37 kW |
| Power Factor | 74 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Type | TN |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 14 9/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nameplate Rpm | 1725 RPM |
| Product Type | Washdown Motor |
| Standards | BISSC APPROVED, CE, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 59 lbs. |
| Ship weight (kg) | 26.55 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
| Product | Model | Full Load Amps | HP | Item | kW | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|
 |
119785 | 3-2.8 / 1.4 | 1 / 3/4 | Washdown Motor | .75 / .56 | 77.7 / 75 | €5,967.54 |
