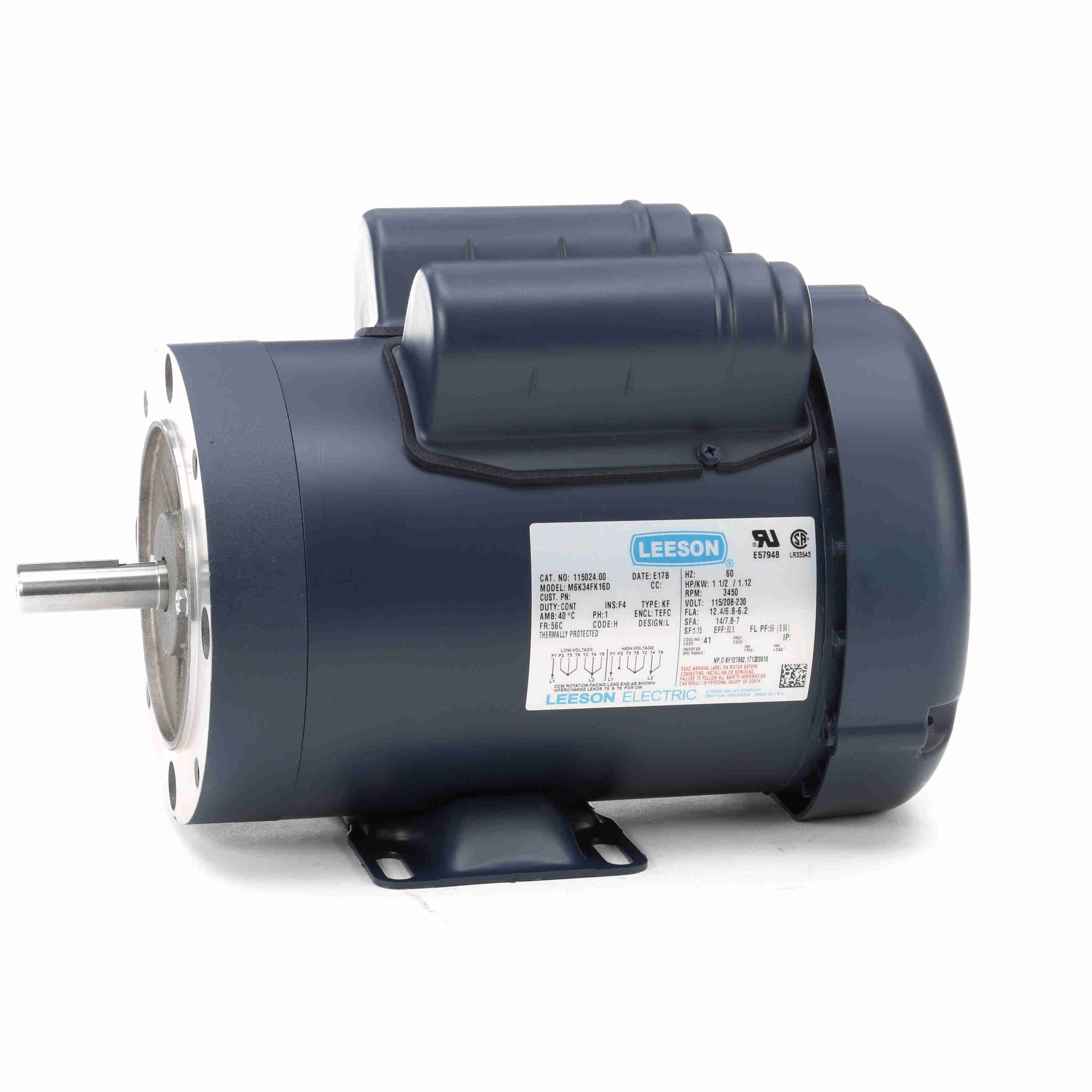

LEESON 115024.00 M6K34FK16D General Purpose Motor, 1.50 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Tuesday, Jun 17
€769.22 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Code | H |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 12.4/6.8-6.2A |
| Grease Type | Polyrex EM |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | H, L |
| Output Kw | 1.12 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 96 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Thermal Protection | Manual |
| Type | KF |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Assembly | Design | Frame | Full Load Amps | HP | Insulation Class | Item | kW | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102916 | LO102916 | N | S56C | 5.4 / 2.4-2.7 | 1/4 | B | Single Phase Motor | 0.19 | €418.76 | |
 |
110180 | - | N | 56C | 12 / 6.2-6 | 1 | B | Single Phase Motor | .75 | €563.51 | |
 |
110905 | - | L | 56C | 10.8 / 5.4 | 3/4 | B | Single Phase Motor | .56 | €645.14 | |
 |
110908 | - | L | 56C | 12.8 / 6.4 | 1 | B | Single Phase Motor | .75 | €728.78 | |
 |
110910 | - | L | 56HC | 17.2 / 8.8-8.6 | 1.5 | B | Single Phase Motor | 1.12 | €866.52 | |
 |
112135 | - | N | 56C | 10 / 5.2-5 | 3/4 | B | Single Phase Motor | 0.56 | €478.98 | |
 |
113931 | - | L | 56HC | 20 / 11.4-10 | 2 | F | Single Phase Motor | 1.49 | €927.86 |
