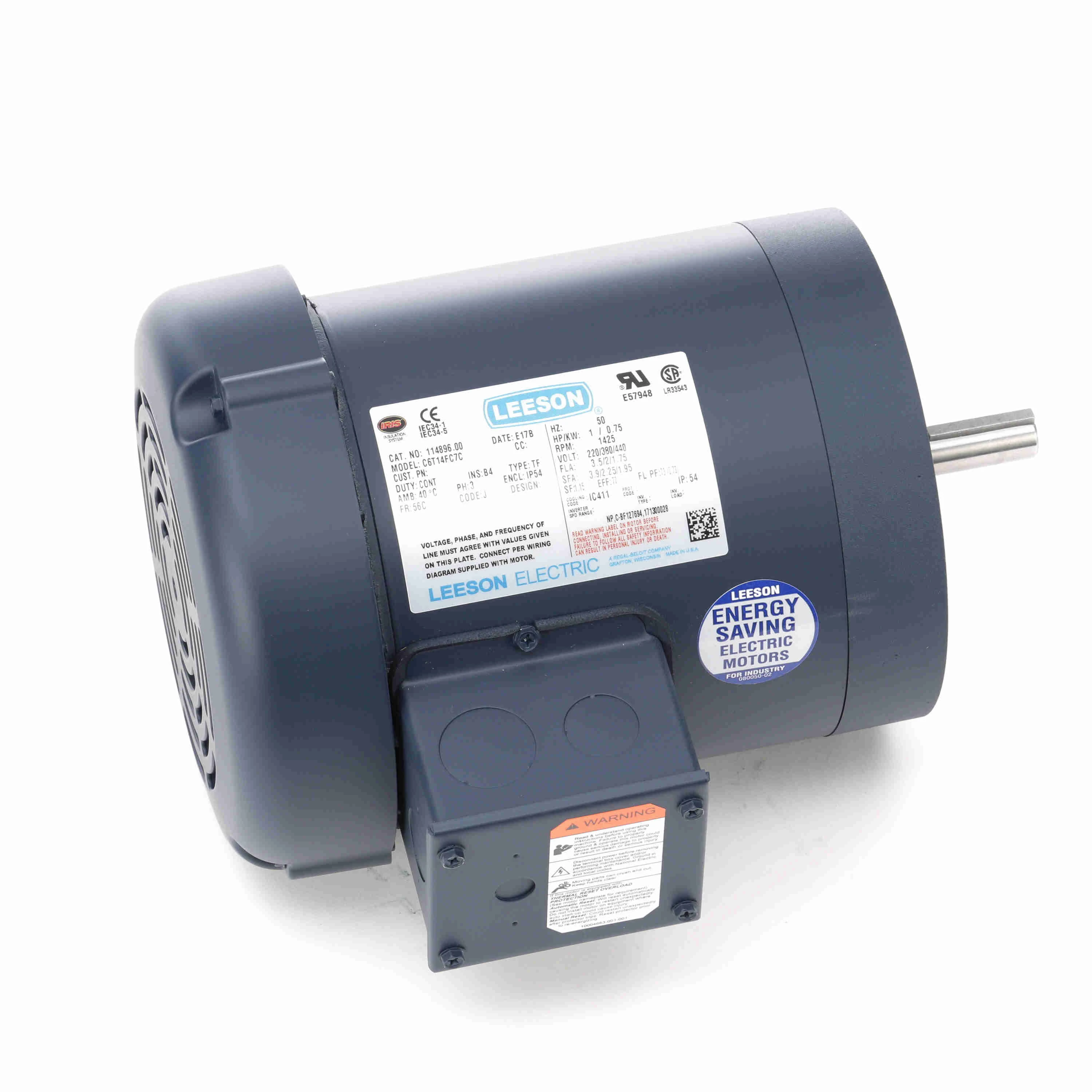

LEESON 114896.00 C6T14FC7C Special Voltage Motor, 1 HP, 3 Phase, 50 Hz, 220/380/440V, 1500 RPM
Get it by Monday, Jun 16
€726.00 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | 50 Hz Motor |
| Application | General Application |
| Bearing Type | Ball |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50 Hz |
| Full Load Amps | 3.5/2/1.75A |
| Full Load Efficiency | 77% |
| Hp | 1 hp |
| Insulation Class | Class B |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Face |
| Nameplate Rpm | 1425 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Overall Length | 11" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Type | Three Phase |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 220/380/440V AC |
| Full Load Amps @ 50hz | 3.5/2/1.75A |
| Hp @ 50hz | 1 hp |
| Hz | 50 |
| Ins. Class | Class B |
| Length Less Shaft | 9 3/16" |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 77% |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED |
| Weight | 31 lbs. |
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| HS code | 8501515040 |
| Country of Origin | US |
| Product | Model | Frame | Full Load Amps | HP | Insulation Class | Length Less Shaft | Nameplate RPM | Overall Length | RPM Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
102694 | 56C | 2.4/1.4/1.2 | 1/2 | B | 8.375" | 1425 | 10.25" | 1401-1500 | €647.64 | |
 |
121274 | 143TC | 5.0/2.9/2.5 | 1.5 | B | 9.75" | 2850 | 12" | 1801-3000 | €750.19 | |
 |
131506 | 182TC | 8.2/4.7/4.1 | 3 | F | 11.25" | 1425 | 14" | 1401-1500 | €878.70 | |
 |
131508 | 184TC | 14.0/8.1/7.0 | 5 | F | 12.75" | 1425 | 15.5" | 1401-1500 | €1,004.88 |
