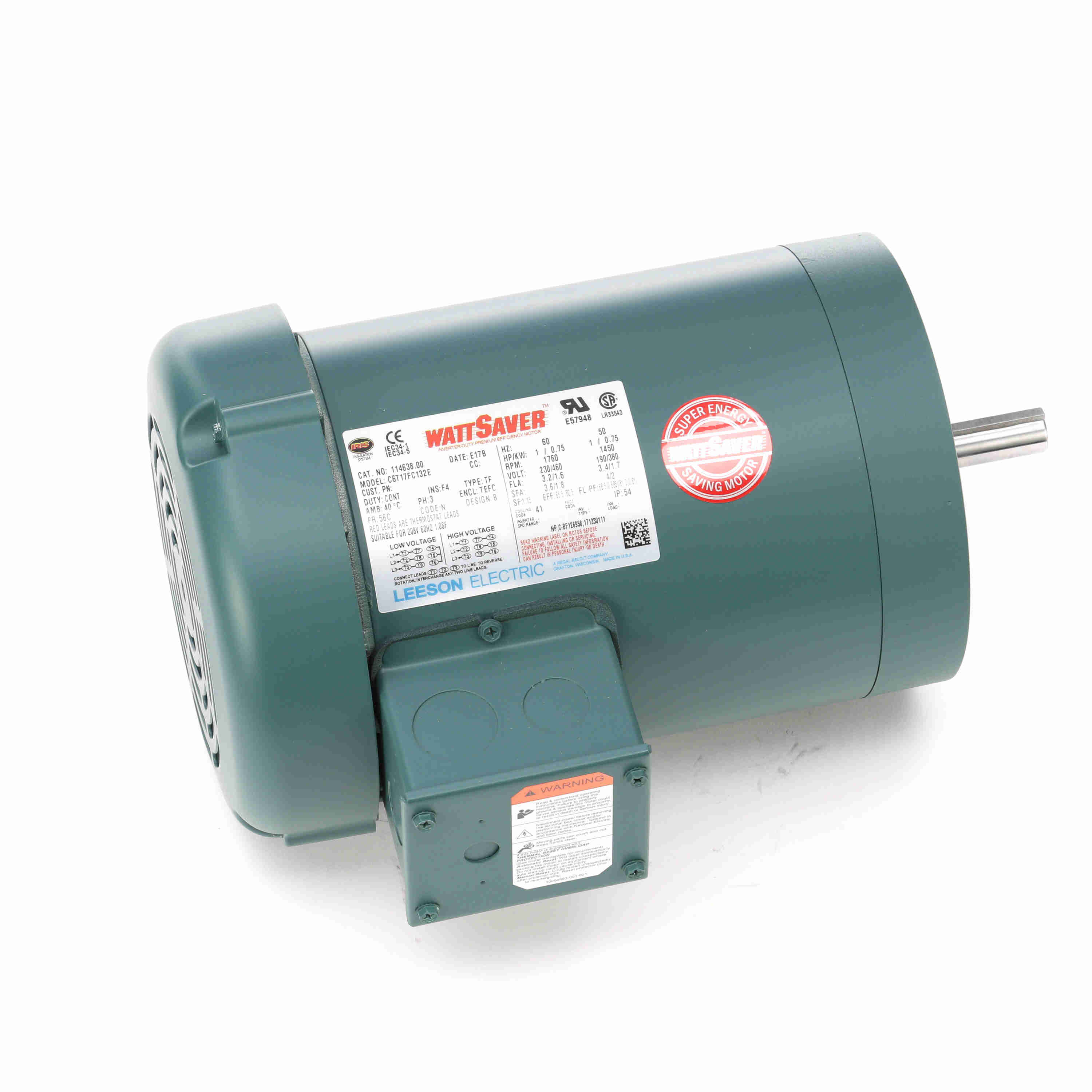

LEESON 114638.00 C6T17FC132E General Purpose Motor, 1 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Jun 17
€912.68 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Bearing Type | Ball |
| Code | N |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.2/1.6A |
| Grease Type | Polyrex EM |
| Hp | 1 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Lubrication | Polyrex EM |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | Reversible |
| Motor Type | Three Phase |
| Mounting Type | Face |
| Nameplate Rpm | 1760 RPM |
| Nema Design | B, N |
| No. Of Speeds | 1 |
| Output Kw | 0.75 kW |
| Overall Length | 12 1/2" |
| Packaging | B |
| Phase | 3 |
| Power Factor | 68.5, 81 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Thermal Protection | Thermostat |
| Type | TF |
| Voltage | 230/460V AC |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | T-Stat |
| Nominal Efficiency | 85.5% |
| Removable Base | Permanently Lubricated Bearings |
| Standards | CSA, UL |
| Weight | 37 lbs. |
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Assembly | Enclosure | Frame | Full Load Amps | HP | Hz | Insulation Class | kW | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
101769 | LO101769 | TEFC | S56C | 1.5-1.6 / .8 | 1/3 | 60 | B | 0.25 | €628.89 | |
 |
101780 | LO101780 | TEFC | S56C | 1.8-1.8 / .9 | 1/2 | 50/60 | F | .37 | €610.76 | |
 |
101981 | LO101981 | TEFC | 48C | 1.2-1.4 / .7 | 1/4 | 60 | B | 0.19 | €387.20 | |
 |
102860 | LO102860 | TEFC | S56C | 1.9-2 / 1 | 1/2 | 60 | B | 0.37 | €475.36 | |
 |
102861 | LO102861 | TENV | S56C | 1.8-1.8 / .9 | 1/2 | 60 | B | 0.37 | €494.94 | RFQ
|
 |
102863 | LO102863 | TENV | S56C | 1.3 / .65 | 1/3 | 60 | B | 0.25 | €417.74 | |
 |
110047 | - | TEFC | 56C | 2.8 / 1.4 | 3/4 | 60 | B | 0.56 | €512.81 |
