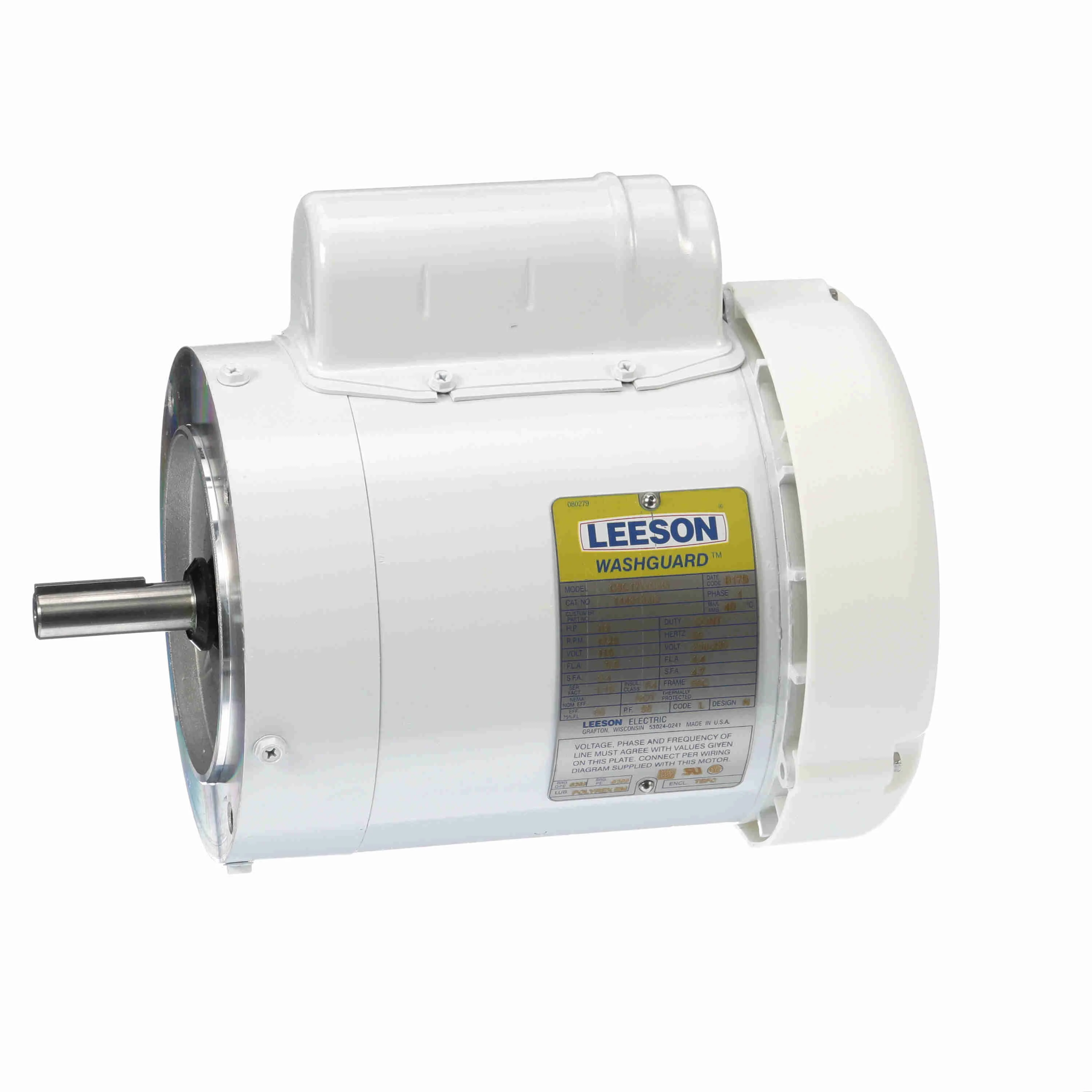

LEESON 114313.00 C6C17WC3G General Purpose Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€600.56 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 7.38" |
| Bolt Circle Dia. | 5 7/8" |
| Code | L |
| Color | White |
| Conduit Box Position | F1 |
| Drain Plug | (4) Each End, (2) In Conduit Box |
| Duty Cycle | Continuous |
| Endshield Material | Aluminum |
| Finish | Epoxy Coated |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.3A |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Includes | Splice Kit |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Round |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| Overall Length | 10 7/8" |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 58 |
| Removable Base | No |
| Rotation | Selective Counter Clockwise |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Drain Plugs | (4) Each End, (2)" Conduit Box |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 8 15/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nameplate Rpm | 1725 RPM |
| Product Type | Washdown Motor |
| Standards | BISSC, CE, CSA, UL |
| Weight | 25 lbs. |
| Ship weight (kg) | 11.03 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
