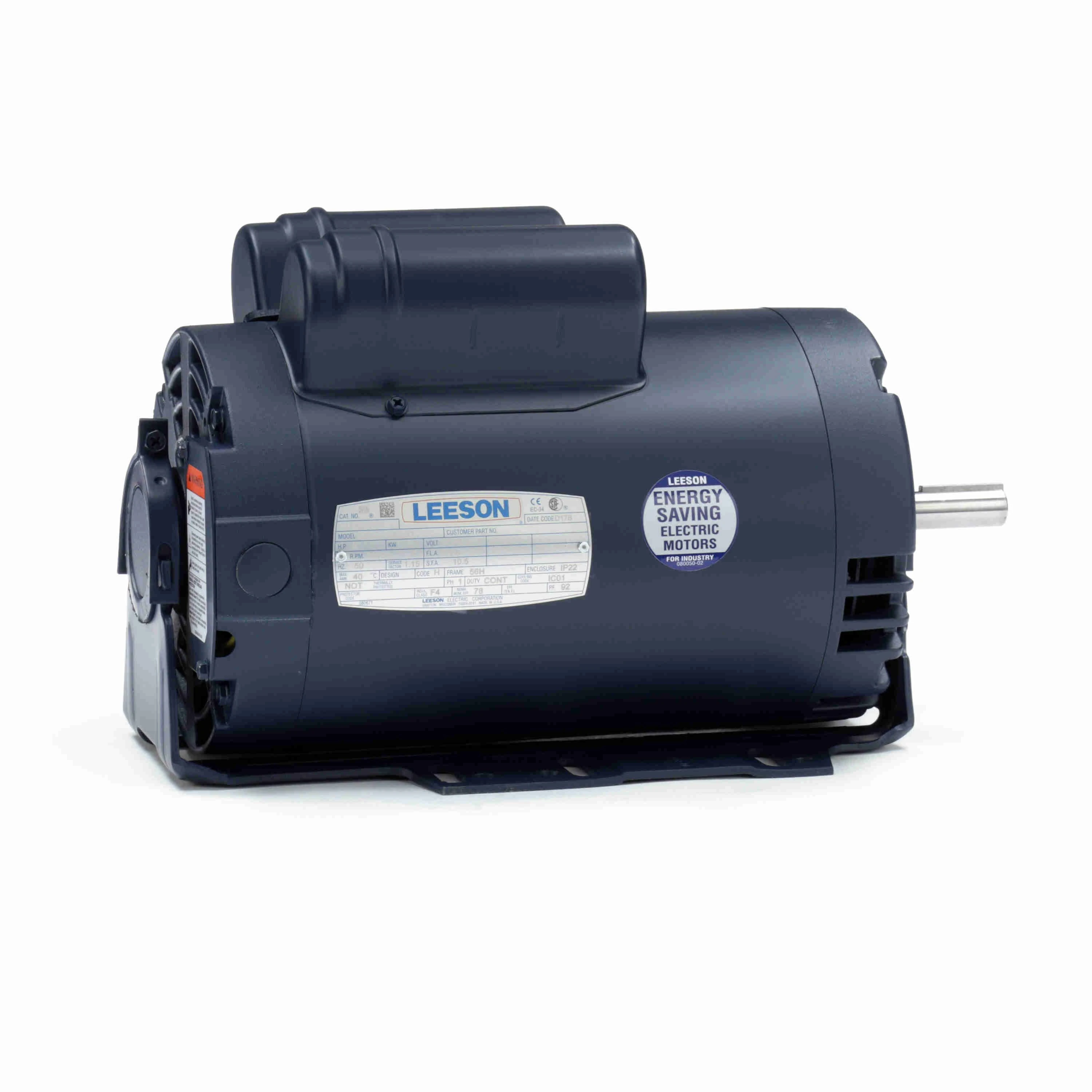

LEESON 114233.00 C6K14DR13 D / C6K14DR13D Special Voltage Motor, 2 HP, 1 Phase, 50 Hz, 220V, 1500 RPM
Get it by Wednesday, Jun 18
€1,131.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | 50 Hz Motor |
| Application | General Application |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 50 Hz |
| Full Load Amps | 9.6A |
| Full Load Efficiency | 78% |
| Hp | 2 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1440 RPM |
| Nema Design | No Design Code |
| No. Of Speeds | 1 |
| Overall Length | 13 13/16" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 220V AC |
| Full Load Amps @ 50hz | 9.6A |
| Hp @ 50hz | 2 hp |
| Hz | 50 |
| Ins. Class | Class F |
| Length Less Shaft | 12" |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 78% |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED |
| Weight | 52 lbs. |
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| HS code | 8501406040 |
| Country of Origin | US |
| Product | Model | Full Load Amps | HP | Insulation Class | Length Less Shaft | Nameplate RPM | Service Factor | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
114225 | 8.2/4.1 | 1/2 | B | 9.5" | 1425 | 1.25 | 110/220 | €682.21 |
