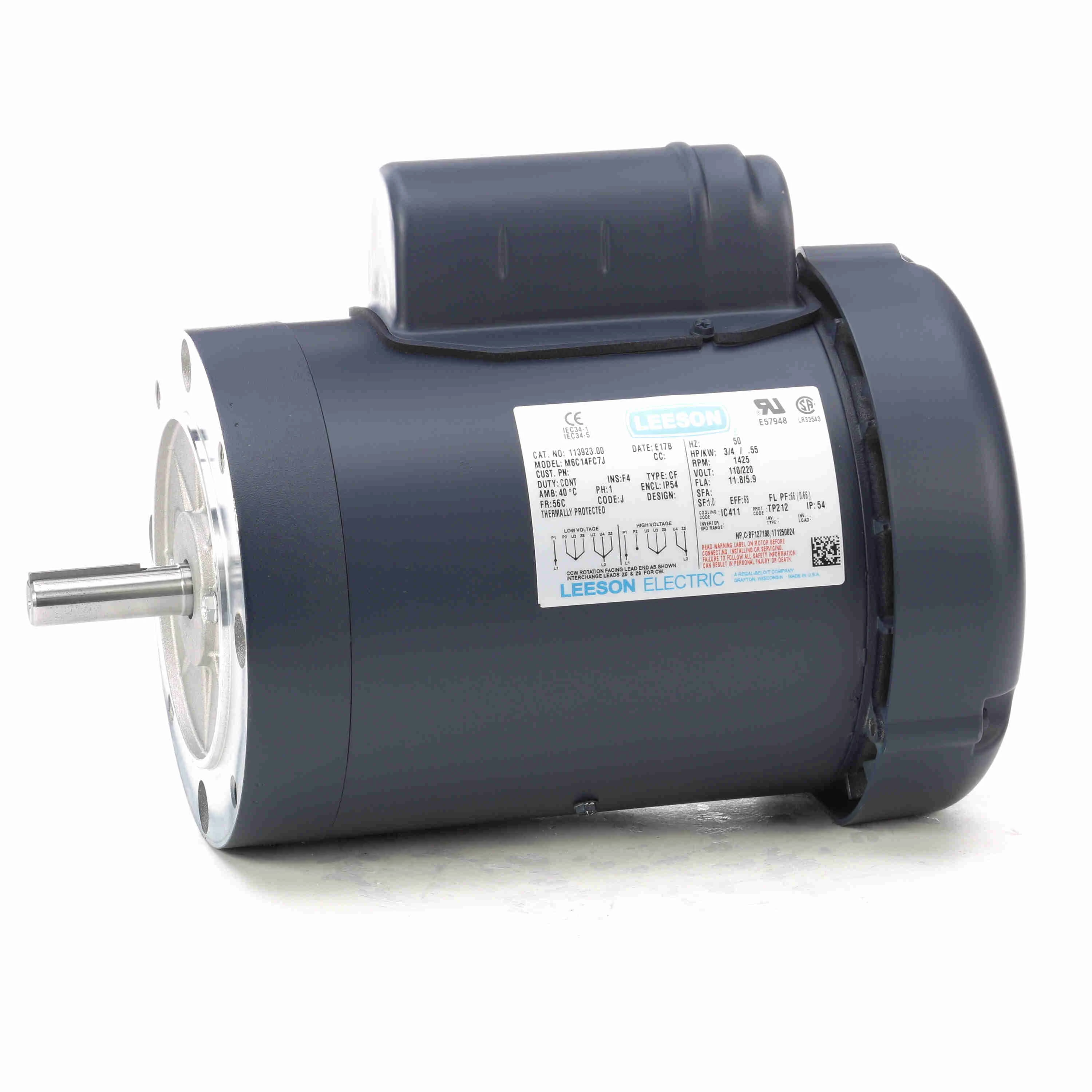

LEESON 113923.00 M6C14FC7J Special Voltage Motor, 0.75 HP, 1 Phase, 50 Hz, 110/220V, 1500 RPM
Get it by Monday, Jun 16
€775.55 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | 50 Hz Motor |
| Application | General Application |
| Bearing Type | Ball |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50 Hz |
| Full Load Amps | 11.8/5.9A |
| Full Load Efficiency | 68% |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Nameplate Rpm | 1425 RPM |
| Nema Design | No Design Code |
| No. Of Speeds | 1 |
| Overall Length | 12" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 110/220V AC |
| Full Load Amps @ 50hz | 11.8/5.9A |
| Hp @ 50hz | 3/4 hp |
| Hz | 50 |
| Ins. Class | Class F |
| Length Less Shaft | 10 1/4" |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Manual |
| Nominal Efficiency | 68% |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED |
| Weight | 34 lbs. |
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| HS code | 8501404040 |
| Country of Origin | US |
| Product | Model | Frame | Full Load Amps | HP | Insulation Class | Length Less Shaft | Motor Thermal Protection | Nameplate RPM | RPM Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
113921 | 56C | 6.4/3.2 | 1/3 | B | 9.25" | Manual | 1425 | 1401-1500 | €592.90 | |
 |
113922 | 56C | 8.2/4.1 | 1/2 | B | 9.75" | Manual | 1425 | 1401-1500 | €678.76 | |
 |
113924 | 56C | 12.8/6.4 | 1 | F | 10.75" | Manual | 1425 | 1401-1500 | €816.47 | |
 |
113925 | 56C | 17.2/8.6 | 1.5 | F | 11.75" | Manual | 1425 | 1401-1500 | €988.74 | |
 |
120990 | 145TC | 17.2/8.6 | 2 | F | 11.75" | None | 2850 | 1801-3000 | €1,047.52 |
