LEESON 113640.00 A6C34FC42H Jet Pump Motor | AJ2QKX A6C34FC42H

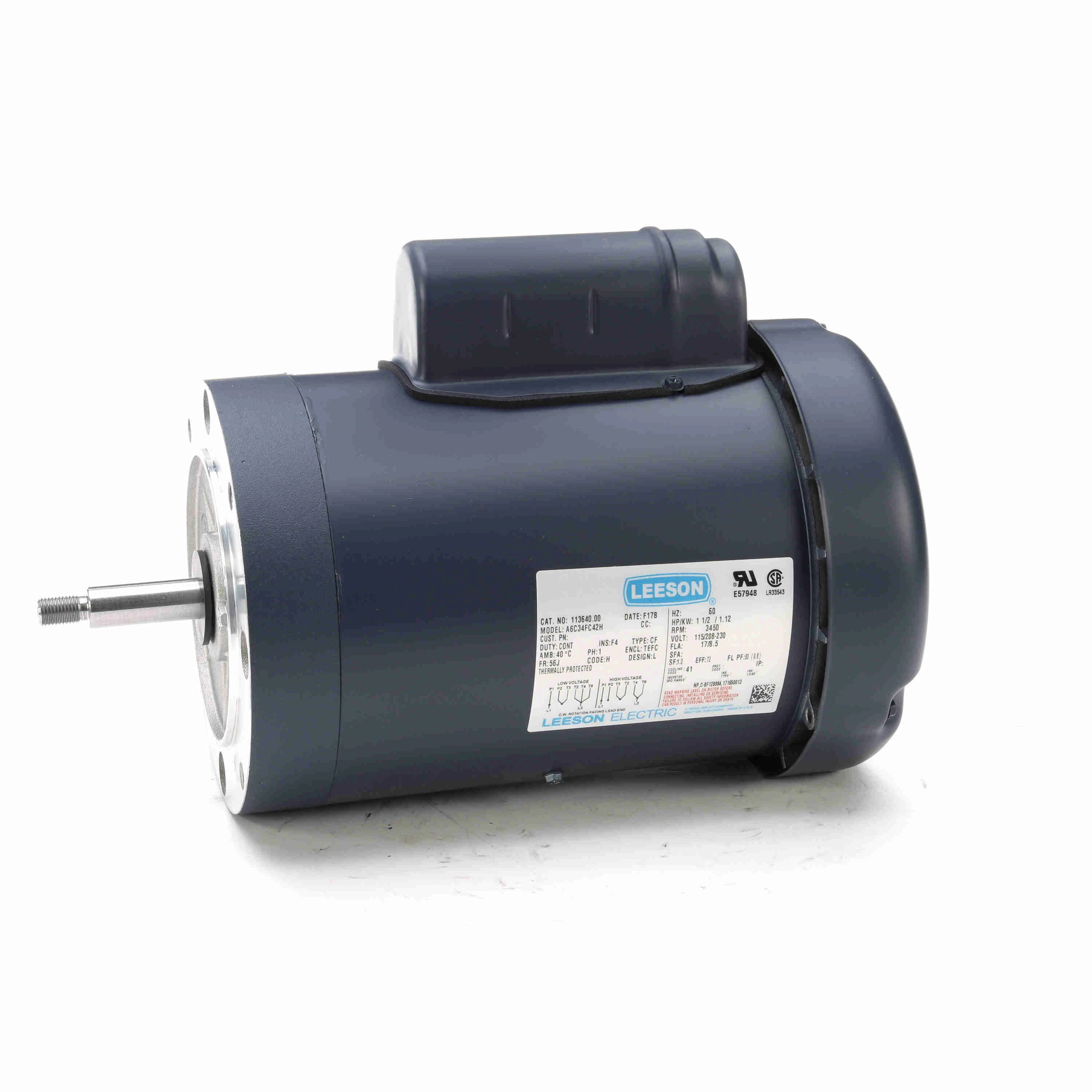

LEESON 113640.00 A6C34FC42H Jet Pump Motor

In Stock
Item: AJ2QKX Model: 113640.00Cross Ref: A6C34FC42H

Get it by May 27, Monday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€587.27 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemJet Pump Motor
CodeH
DesignL
DutyContinuous
EnclosureTEFC
Frame56J
Full Load Amps17 / 8.5
HP1.5
Hz60
Insulation ClassF
kW1.12
LubricationPolyrex EM
Max. Ambient Temp.40
Motor Thermal ProtectionCEJ38CV
MountingRound
PackagingB
Phase1
Power Factor80
ProtectionAUTOMATIC
RotationFIXED CW
RPM3600
Service Factor1.0
Shaft Dia.5/8"
TypeCF
Voltage115 / 208-230

Shipping Info:

Ship weight (kg) 14.85
Ship height (cm)27.64
Ship length (cm)36.68
Ship width (cm)26.52

Product Details:

  • Eff 100%: 72
  • Bearing OPE: 6203
  • CC Number: EXEMPT
  • Bearing PE: 6203
  • Nameplate: 993500
  • Winding: C632212
  • GROUP: 5
  • Paint: BLUE - LEESON (ENAMEL)

Product Variants

ProductModelService FactorDesignFull Load AmpsVoltageHPInsulation ClasskWMotor Thermal ProtectionPrice
LEESON 113641.00 U6C34FC34G Jet Pump Motor | AJ2QKY U6C34FC34G 113641.001.0L20 / 11.4-10115 / 208-2302F1.49BRJ42DV€876.94
LEESON 113955.00 A6C34FC44F Jet Pump Motor | AJ2QLZ A6C34FC44F 113955.001.6N7.6 / 4-3.8208-230 / 1151/2B.37CEJ65CV€523.11
