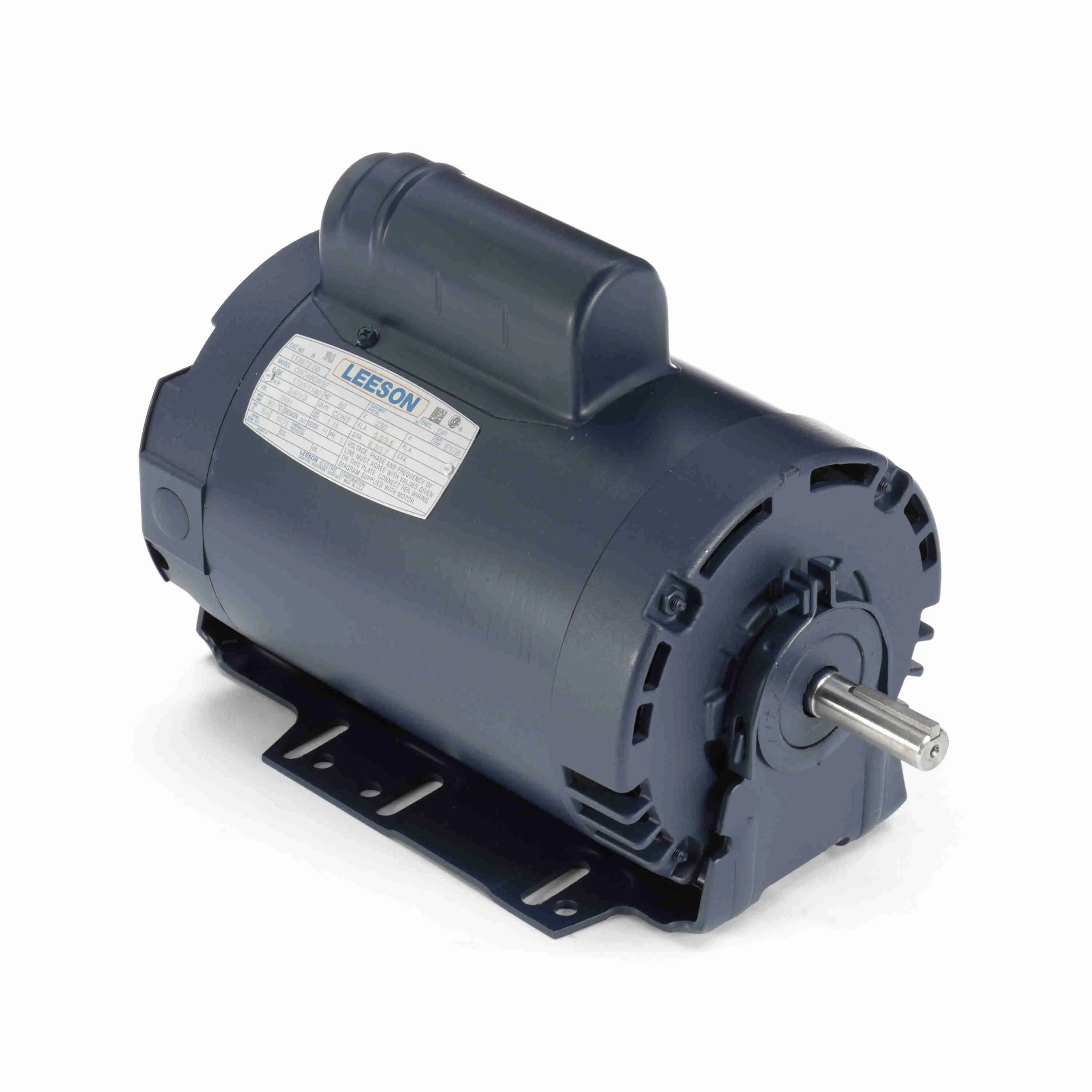

LEESON 111954.00 C6C46DR2J Definite Purpose Motor, 0.75/0.33 HP, 1 Phase, 60/60 Hz, 115 and 115V, 1800 and 1800 RPM
Get it by Monday, Jun 16
€910.01 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Assembly | 42506 |
| Code | H |
| Duty Cycle | Continuous |
| Enclosure Type | Dripproof |
| Frame | 56H |
| Frequency | 50/60 Hz |
| Full Load Amps | 11.6/7A |
| Grease Type | Polyrex EM |
| Hp | 3/4 hp, 1/3 hp |
| Insulation Class | Class B |
| Lubrication | Polyrex EM |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | KD |
| Mounting Type | Resilient Base |
| Nema Design | 2VT, H |
| Packaging | B |
| Phase | 1 |
| Power | 0.56 kW |
| Power Factor | 66.2, 59.7 |
| Rpm | 1800/1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Voltage | 115V AC |
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
