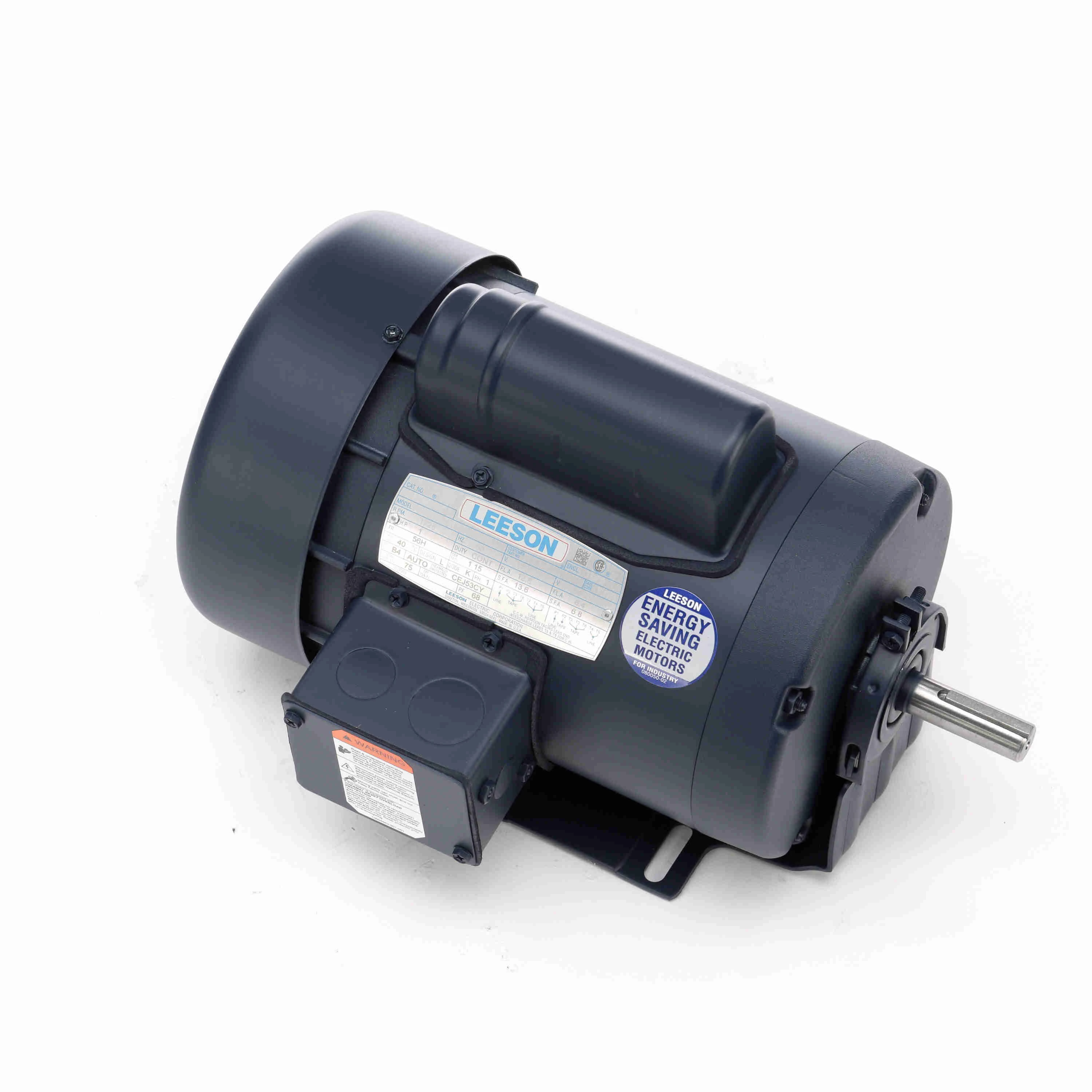

LEESON 111915.00 A6C17FR10G General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, Jun 18
€757.22 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Assembly | 42588 |
| Bearing Type | Ball |
| Code | K |
| Duty Cycle | Continuous |
| Efficiency | 75% |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 12.8/6.4A |
| Grease Type | Polyrex EM |
| Hp | 1 hp |
| Insulation Class | Class B |
| Lubrication | Polyrex EM |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | K, L |
| No. Of Speeds | 1 |
| Output Kw | 0.75 kW |
| Overall Length | 12 15/16" |
| Packaging | B |
| Phase | 1 |
| Power Factor | 68 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Automatic |
| Type | CF |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Resilient Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | Auto |
| Nominal Efficiency | 75% |
| Standards | CE, CSA, UL |
| Weight | 34 lbs. |
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
