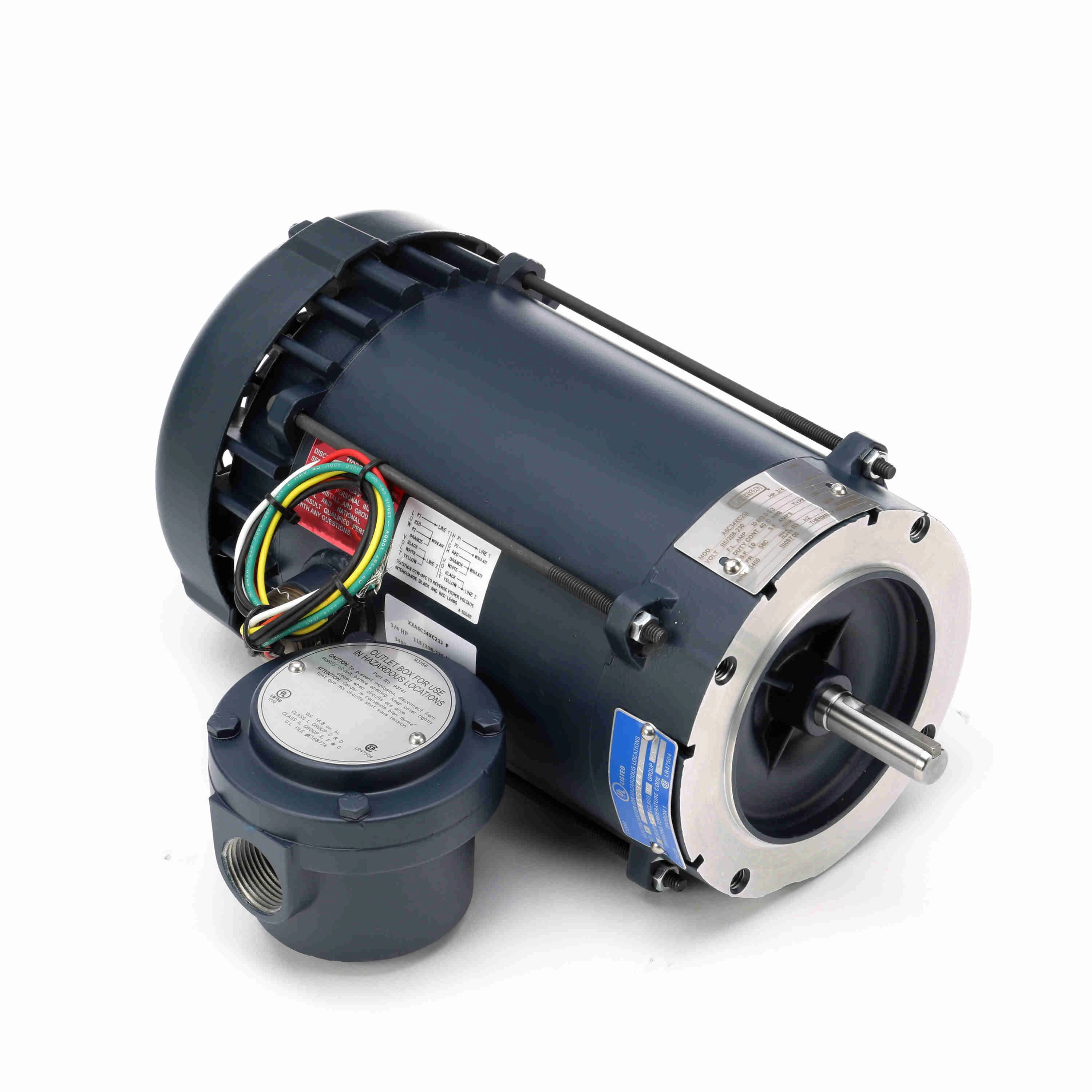

LEESON 111097.00 A6C34XC21J / 6C34XC21J Explosion Proof Motor, 0.75 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM
Get it by Monday, Jun 16
€931.70 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Assembly | A-S90894 |
| Code | M |
| Conduit Box Position | F1 |
| Design | N |
| Duty Cycle | Continuous |
| Enclosure Type | Explosion Proof Fan Cooled |
| Frame | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 10.6/5.3A |
| Grease Type | Polyrex EM |
| Hazardous Location Class | 1C, D/2F, G |
| Hp | 3/4 hp |
| Insulation Class | Class B |
| Lubrication | Polyrex EM |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Round |
| Nameplate Rpm | 3600 RPM |
| Output Rating | 0.56 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 71.9 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | CX |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | MX |
| Product | Model | Assembly | Design | Frame | Full Load Amps | HP | kW | Motor Thermal Protection | Power Factor | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
111095 | A-S90887 | N | 56C | 7 / 3.2-3.5 | 1/3 | .246 | CEJ66CV | 58 | €859.09 | |
 |
114424 | - | L | 56C | 15.4 / 8.4-7.7 | 1.5 | 1.12 | CEJ49CX | 81.5 | €1,238.24 | |
 |
114425 | - | L | 56C | 20 / 10.8-10 | 2 | 1.49 | BRJ45DX | 87.5 | €1,358.08 | |
 |
116181 | - | L | 56J | 20 / 10.8-10 | 2 | 1.49 | BRJ45DX | 87.5 | €1,381.13 | |
 |
116183 | A-S90887 | L | 56J | 15.4 / 8.4-7.7 | 1.5 | 1.12 | CEJ49CX | 81.5 | €1,271.08 | |
 |
116185 | - | N | 56J | 12.4 / 6.7-6.2 | 1 | .75 | CEJ51CV | 76 | €991.05 | |
 |
116186 | A-S90894 | N | 56J | 10.6 / 5.3-5.3 | 3/4 | .56 | CEJ52CV | 71.9 | €924.21 |
