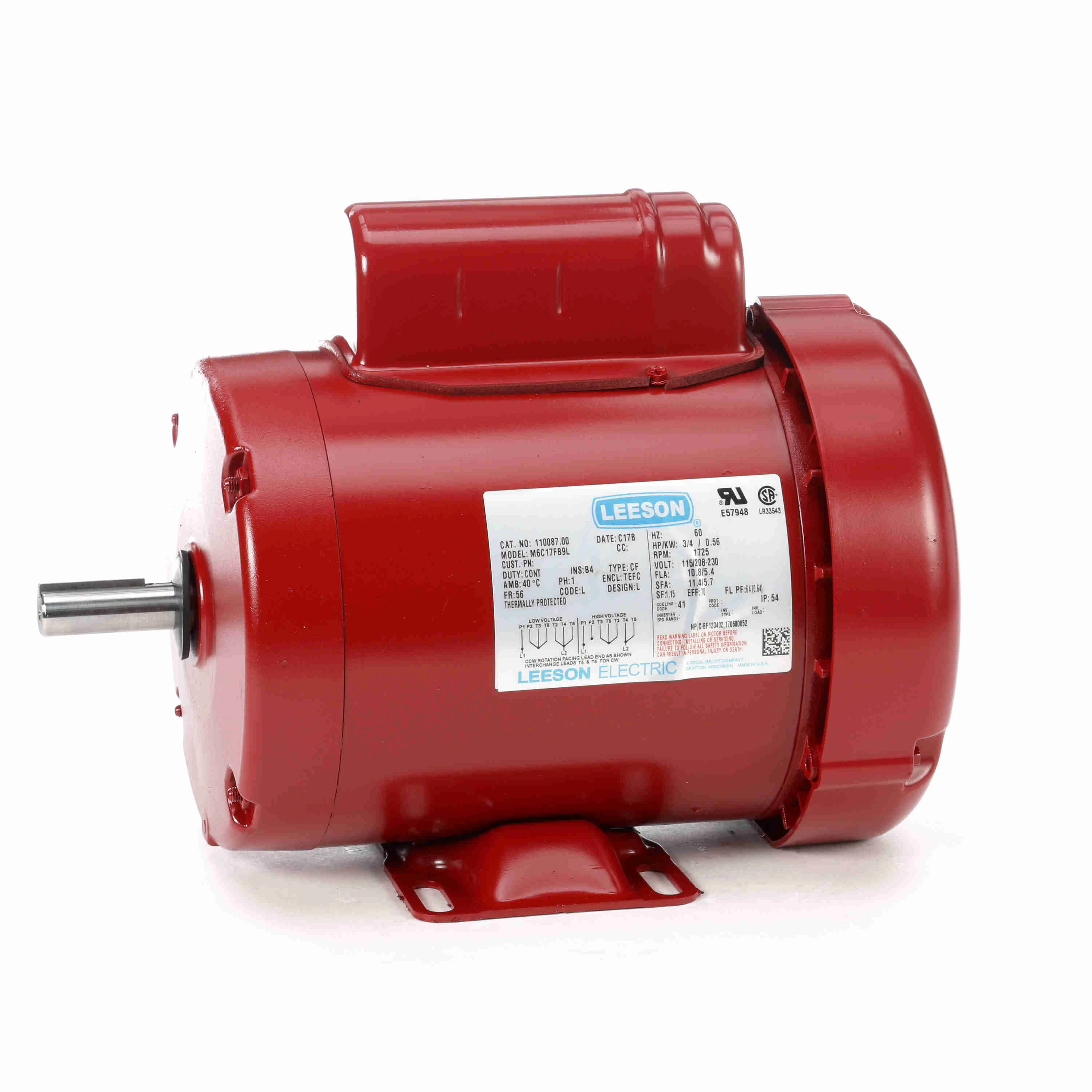

LEESON 110087.00 M6C17FB9L Agricultural Motor, 0.75 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€461.35 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Farm Duty Motor |
| Application | Farm Duty |
| Assembly | 042545 |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Code | L |
| Duty Cycle | Continuous |
| Efficiency | 70% |
| Finish | Enamel |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10.8/5.4A |
| Hp | 3/4 hp |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | High Torque |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nema Design | L |
| No. Of Speeds | 1 |
| Output Power | 0.56 kW |
| Overall Length | 11 1/2" |
| Packaging | B |
| Phase | 1 |
| Power Factor | 64 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 9 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Sub Application | High Torque |
| Motor Thermal Protection | Manual |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 70% |
| Standards | CSA (LR2025), UL (E49747) |
| Weight | 29 lbs. |
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Assembly | Design | Frame | Full Load Amps | HP | Insulation Class | kW | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110086 | 042545 | L | 56 | 8.8 / 4.4 | 1/2 | B | .37 | CED4705 | €382.88 | |
 |
110088 | 042545 | N | 56 | 14 / 7 | 1 | B | 0.75 | CED2797 | €519.07 | |
 |
110089 | 042540 | L | 56H | 17.2 / 8.8-8.6 | 1.5 | F | 1.12 | CED2705 | €629.56 | |
 |
110090 | 042540 | L | 56HZ | 9.2 | 2 | F | 1.49 | CED3706 | €721.58 | |
 |
113256 | 042545 | L | 56 | 6.4 / 3.4-3.2 | 1/3 | B | .246 | CED3769 | €355.61 | |
 |
113938 | 042540 | L | 56HZ | 17.2 / 8.8-8.6 | 1.5 | F | 1.12 | CED2705 | €633.27 | |
 |
131541 | 180-033 | L | 182T | 24.8 / 13-12.4 | 2 | F | 1.49 | BRD2971 | €902.12 |
