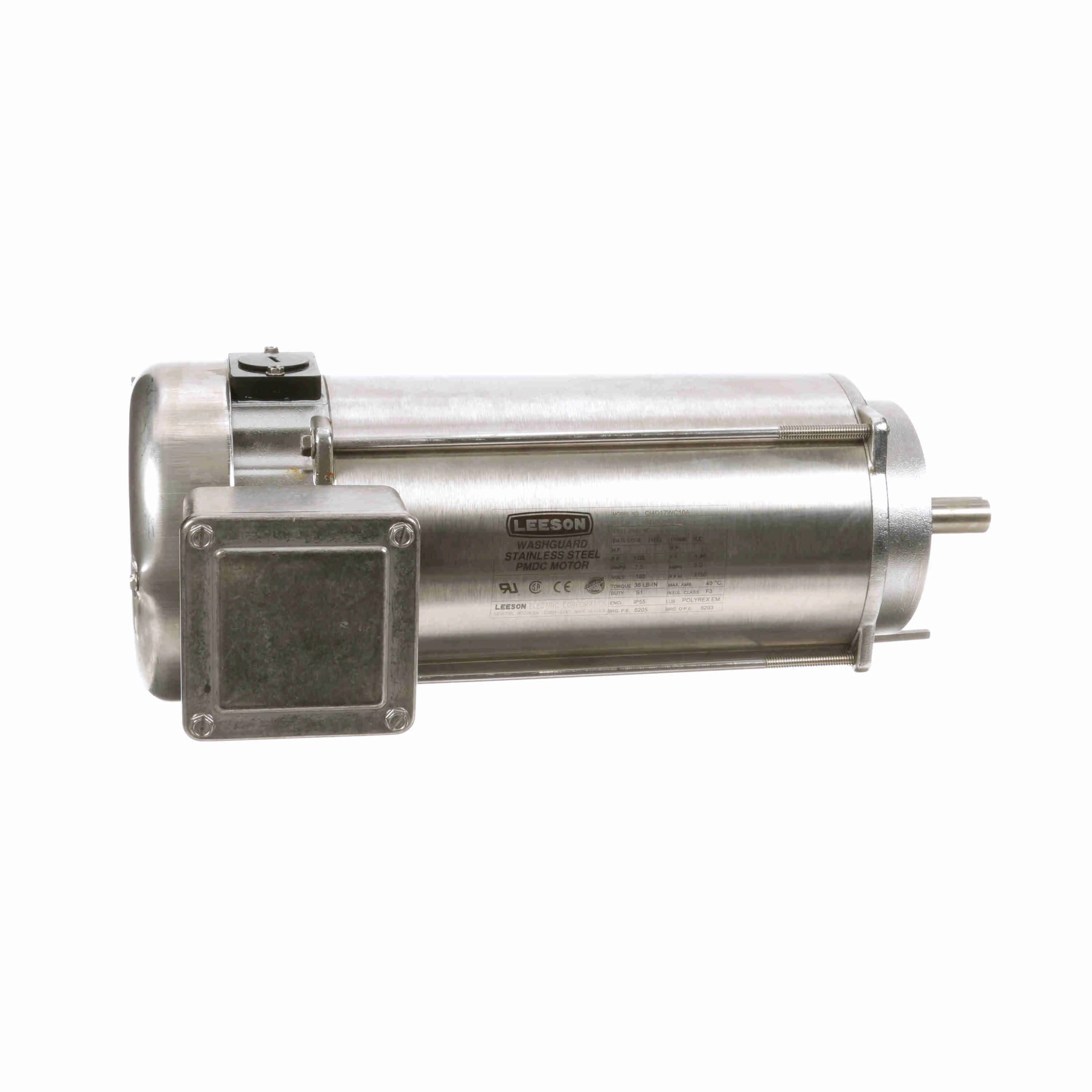

LEESON 109090.00 CI4D17WC10 / CI4D17WC10A Washdown Motor, 180V, 1750 RPM
Get it by Monday, Jun 16
€690.28 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | DC Motor |
| Ambient Temp. | 40°C |
| Armature Amps | 7.5A |
| Assembly | 40025 |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 85.3% |
| Enclosure Type | Non Standard |
| Finish | Unfinished |
| Form Factor | 1.05 |
| Frame | 80D |
| Frame Material | Stainless Steel |
| Full Load Amps | 7.5A |
| Full Load Efficiency | 85.3% |
| Full Load Torque | 36 lbs.-in. |
| Grease Type | Polyrex EM |
| Hp | 1 3/4 hp |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| Lubrication | Polyrex EM |
| Motor Shaft Rotation | Reconn |
| Mounting Type | C Face, Footless |
| Output Power | 1.1 kW |
| Packaging | PG659401.04B |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Thermal Protection | None |
| Type | Z80-14 |
| Voltage | 180V |
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
