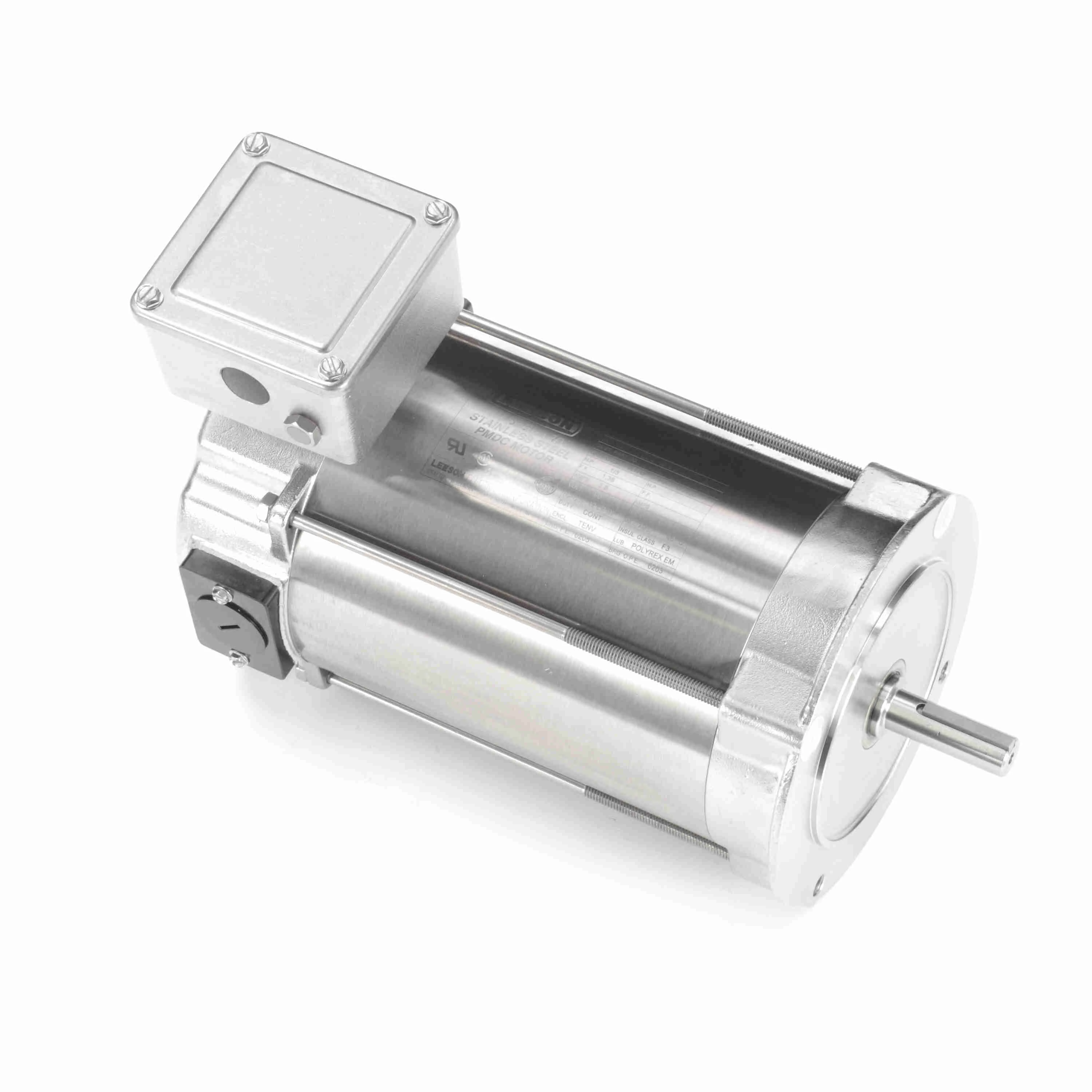

LEESON 109079.00 C4D17VC6 / C4D17VC6A Washdown Motor, 0.33 HP, 90V, 1750 RPM
Get it by Tuesday, Jun 17
€1,441.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Assembly | 40026 |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Finish | Unfinished |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Full Load Amps | 3.8A |
| Full Load Torque | 12 lbs.-in. |
| Grease Type | Polyrex EM |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Type | C Face |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Overall Length | 12 13/16" |
| Packaging | PG659401.04B |
| Phase | 1 |
| Rotation | Reconn |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Type | DN |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 90V DC |
| Ins. Class | Class F |
| Length Less Shaft | 10 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 74% |
| Standards | BISSC APPROVED, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 44 lbs. |
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
