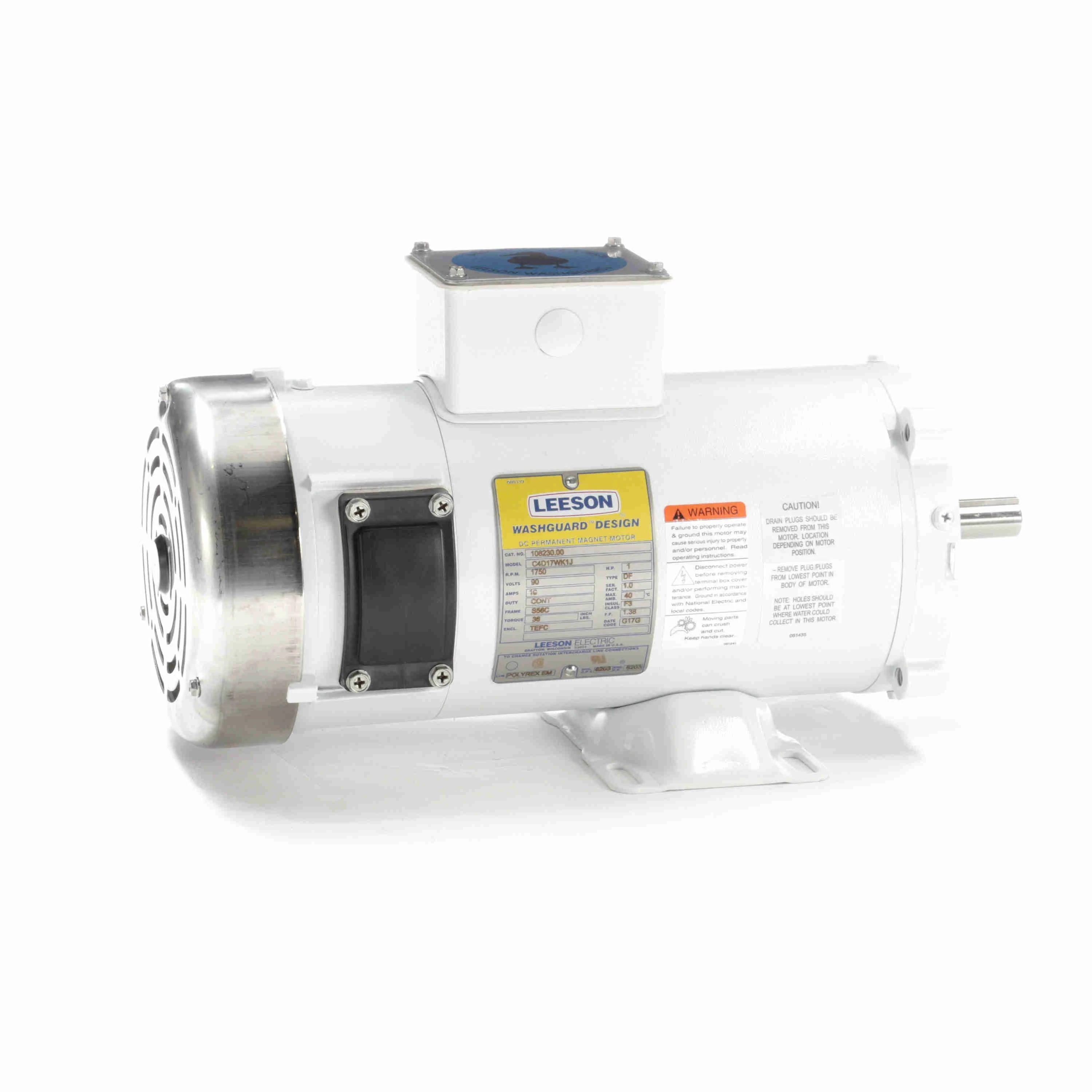

LEESON 108230.00 C4D17WK1 / C4D17WK1J Washdown Motor, 1 HP, 90V, 1750 RPM
Get it by Friday, Jun 20
€1,395.02 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 20
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Body Dia. | 5 3/5" |
| Bolt Circle Dia. | 5 7/8" |
| Color | White |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency | 83.7% |
| Endshield Material | Stainless Steel |
| Finish | Epoxy Coated |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Full Load Amps | 10A |
| Full Load Torque | 36 lbs.-in. |
| Grease Type | Polyrex EM |
| Hp | 1 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| No. Of Speeds | 1 |
| Overall Length | 14 13/16" |
| Packaging | PG659401.04Z |
| Phase | 1 |
| Rotation | Reconn |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Type | DF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 90V DC |
| Ins. Class | Class F |
| Length Less Shaft | 12 7/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Design | Permanent Magnet DC |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 83.7% |
| Standards | CE, CSA, UL |
| Weight | 40 lbs. |
| Ship weight (kg) | 18 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Amps | Enclosure | HP | Insulation Class | Packaging | Torque | Type | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
108226 | 5.0 | TENV | 1/2 | F | PG659401.04Z | 18 LB-IN | DN | 90 | €944.16 | |
 |
108227 | 2.5 | TENV | 1/2 | F | PG659401.04Z | 18 LB-IN | DN | 180 | €944.16 | |
 |
108228 | 7.0 | TENV | 3/4 | F | PG659401.04Z | 27 LB-IN | DN | 90 | €1,145.74 | |
 |
108229 | 3.7 | TENV | 3/4 | F | PG659401.04Z | 27 LB-IN | DN | 180 | €1,145.74 | |
 |
108231 | 5 | TEFC | 1 | F | PG659401.04Z | 36 LB-IN | DF | 180 | €1,395.02 | |
 |
108232 | 7.6 | TEFC | 1.5 | H | PG659401.04N | 54 LB-IN | DF | 180 | €1,696.53 | |
 |
108423 | 2.7 | TENV | 1/4 | F | PG659201.04A | 9 LB-IN | DN | 90 | €795.76 |
