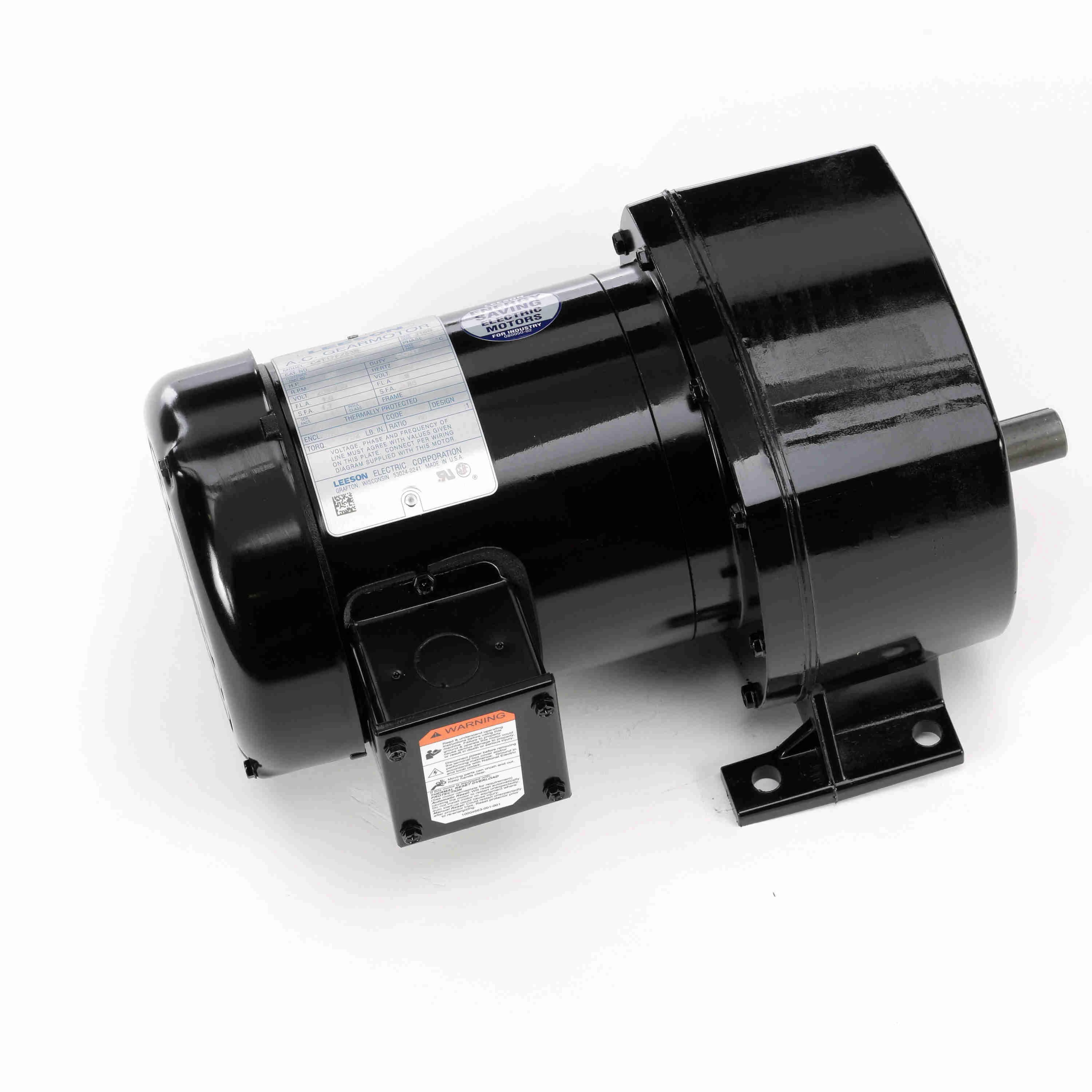

LEESON 107026.00 C4T17FZ53B Parallel Shaft Gearmotor, 0.33 HP, 3 Phase, 60 Hz, 26 RPM
Get it by Wednesday, Jun 18
€1,532.01 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | AC Gearmotor |
| Code | L |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 48Y |
| Insulation Class | Class F4 |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Packaging | B |
| Phase | 3 |
| Rotation | Reconn |
| Rpm | 26 RPM |
| Series | P1100 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Type | Parallel |
| Type | TF |
| Voltage | 208-230/460V |
| Base To Center Of Shaft | 2.94" |
| Bearing Type | Needle |
| Brake Type | None |
| Capacitor Required | Yes |
| Features | All Gearing Designed And Rated To AGMA Class 9 Standards And To Withstand Momentary Shock Overload Of 200%, All Needle Bearing Journals Are Precision Ground After Heat Treating To Provide Maximum Fit And Finish, Conduit Box Included As Standard, Gears And Bearings Are Splash Lubricated With Permanent, Hardened For Maximum Load Capability, Heavy Duty Industrial Oil Seals Keep Lubricant In And Dirt Out, Heavy-Duty Gear Oil, High Carbon Alloy Output Shaft Provides Maximum Strength And Rigidity, Oversized Output Bearings For Greater Overhung Load Capacity And Long Life, Precision Machined Gearing, Rugged Die Cast Aluminium Gear Housing For Maximum Gear And Bearing Support |
| Frequency | 60 Hz |
| Full Load Current | 1.6/0.8A |
| Gear Ratio | 66:1 |
| Housing Material | Die Cast Aluminum |
| Includes | Conduit Box |
| Includes Junction/conduit Box | Yes |
| Input Horsepower | 0.33 hp |
| Keyway Depth | 1 1/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 15/79" |
| Length Less Shaft | 11.42" |
| Lubrication | Heavy Duty Gear Oil |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 26 RPM |
| Maximum Torque | 752 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Hole Center-to-center Length | 2.5" |
| Mount Hole Center-to-center Width | 7.13" |
| Mount Type | Horizontal or Vertical Shaft Down |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Nameplate Speed | 26 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 208-230/460V AC |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6 3/5" |
| Overall Length | 12.92" |
| Overall Width | 8.13" |
| Overhung Load Capacity | 650 lbs.-ft. |
| Seal Type | Heavy Duty Industrial |
| Shaft Orientation | Parallel |
| Standards | CSA, UL |
| Starting Torque | 753 lbs.-in. |
| Thermal Protection | None |
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
