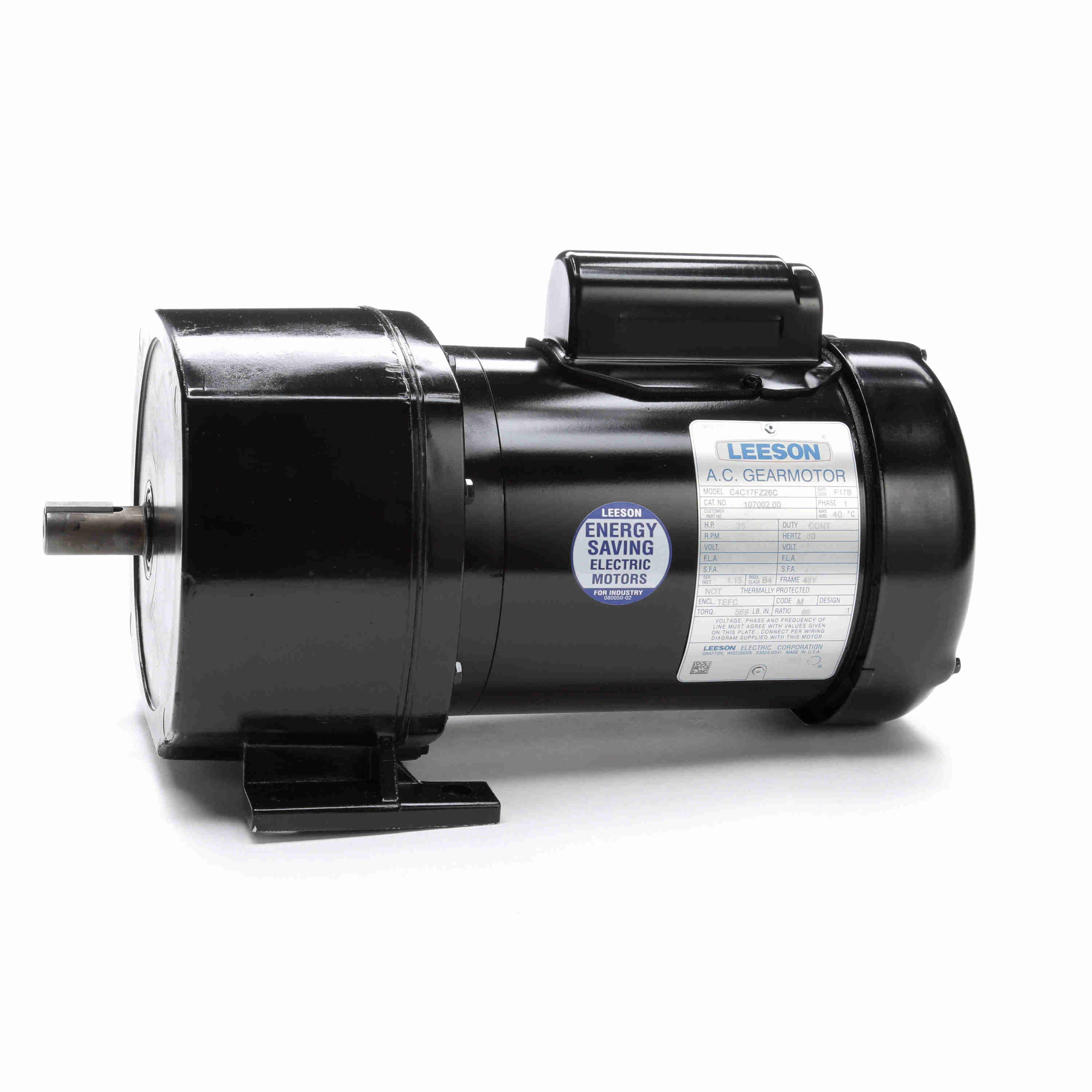

LEESON 107002.00 C4C17FZ26C Parallel Shaft Gearmotor, 0.25 HP, 1 Phase, 60 Hz, 115/208-230V, 26 RPM
Get it by Wednesday, Jun 18
€1,425.26 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | AC Gearmotor |
| Code | M |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 48Y |
| Full Load Amps | 5.4/2.7A |
| Insulation Class | Class B4 |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Packaging | B |
| Phase | 1 |
| Rotation | Reconn |
| Rpm | 26 RPM |
| Series | P1100 Series |
| Service Factor | 1.15 |
| Shaft Dia. | 3/4" |
| Shaft Type | Parallel |
| Type | RP_CF |
| Voltage | 115/208-230V |
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Assembly | Full Load Amps | Insulation Class | Rpm | Price | |
|---|---|---|---|---|---|---|---|
 |
107000.00 | LO107000 | 5.4/2.7 | B4 | 8 | €1,425.26 | |
 |
107003.00 | LO107003 | 5.4/2.7 | B4 | 18 | €1,425.26 | |
 |
107004.00 | LO107004 | 5.4/2.7 | B4 | 12 | €1,425.26 | |
 |
107005.00 | LO107005 | 5.4/2.7 | B4 | 59 | €1,392.08 | |
 |
107010.00 | LO107010 | 6.2/3.1 | B4 | 59 | €1,411.56 | |
 |
107011.00 | LO107011 | 6.2/3.1 | B4 | 41 | €1,411.56 | |
 |
107013.00 | LO107013 | 8.8/4.4 | F4 | 22 | €1,569.52 |
