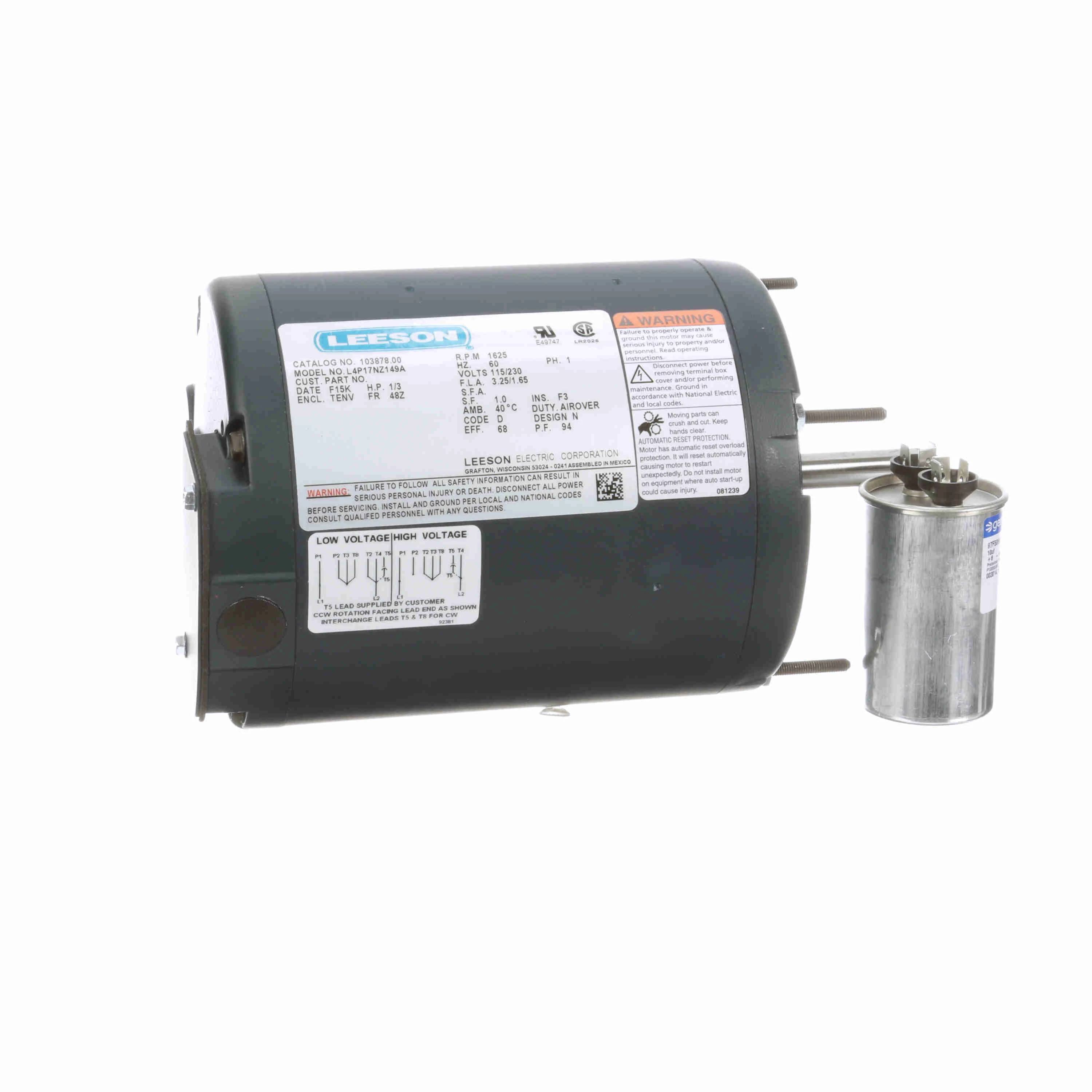

LEESON 103878.00 L4P17NZ149A Poultry Fan Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Farm Duty Motor |
| Amps | 3.3/1.7A |
| Code | D |
| Duty Cycle | Continuous |
| Efficiency | 68% |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 3.25/1.65A |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Mounting Type | Round Extended Studs |
| Nameplate Rpm | 1625 RPM |
| Nema Design | N |
| Output Power | 0.25 kW |
| Packaging | F |
| Phase | 1 |
| Power Factor | 94 |
| Service Factor | 1 |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115/230V AC |
| Ship weight (kg) | 9 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
| Product | Model | Duty | Enclosure | Frame | Full Load Amps | HP | Insulation Class | kW | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
101341 | Continuous | TEAO | 48Y | 2.8 / 1.4 | 1/4 | B | .187 | 7AM035A5 | €320.69 |
