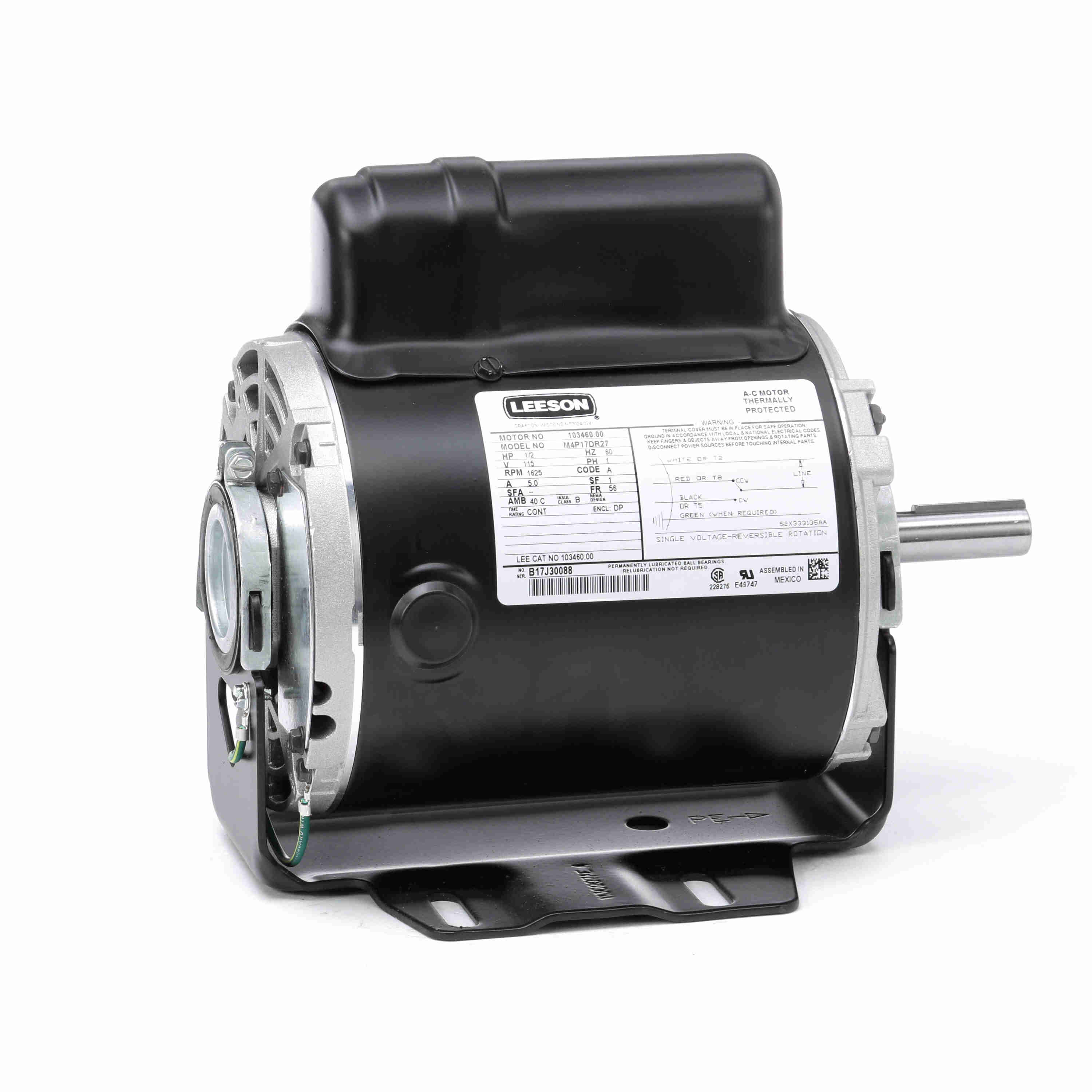

| Item | Instant Reverse Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Bolt Circle Dia. | 5 1/8" |
| Conduit Box Location | Interior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Extended Thru-bolts | No |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5A |
| Hp | 1/2 hp |
| Includes | Key |
| Insulation Class | Class B |
| Motor Application | Garage/Gate Opener |
| Motor Enclosure Design | Open Dripproof |
| Motor Shaft Design | Keyed |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Length | 2" |
| Mounting Type | Cradle Base |
| Nameplate Rpm | 1625 RPM |
| No. Of Speeds | 1 |
| No. Of Wires | 3 |
| Nominal Efficiency | 63% |
| Overall Length | 9 15/16" |
| Phase | 1 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Stud Size | #8-32 |
| Thermal Protection | Manual |
| Voltage | 115V AC |
| Warranty | 1.5 yrs. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 8 1/16" |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Frame Material | Steel |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Manual |
| Number Of Wires | 3 |
| Standards | CSA, UL RECOGNIZED |
| Weight | 22 lbs. |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.57 |
| Country of Origin | MX |
