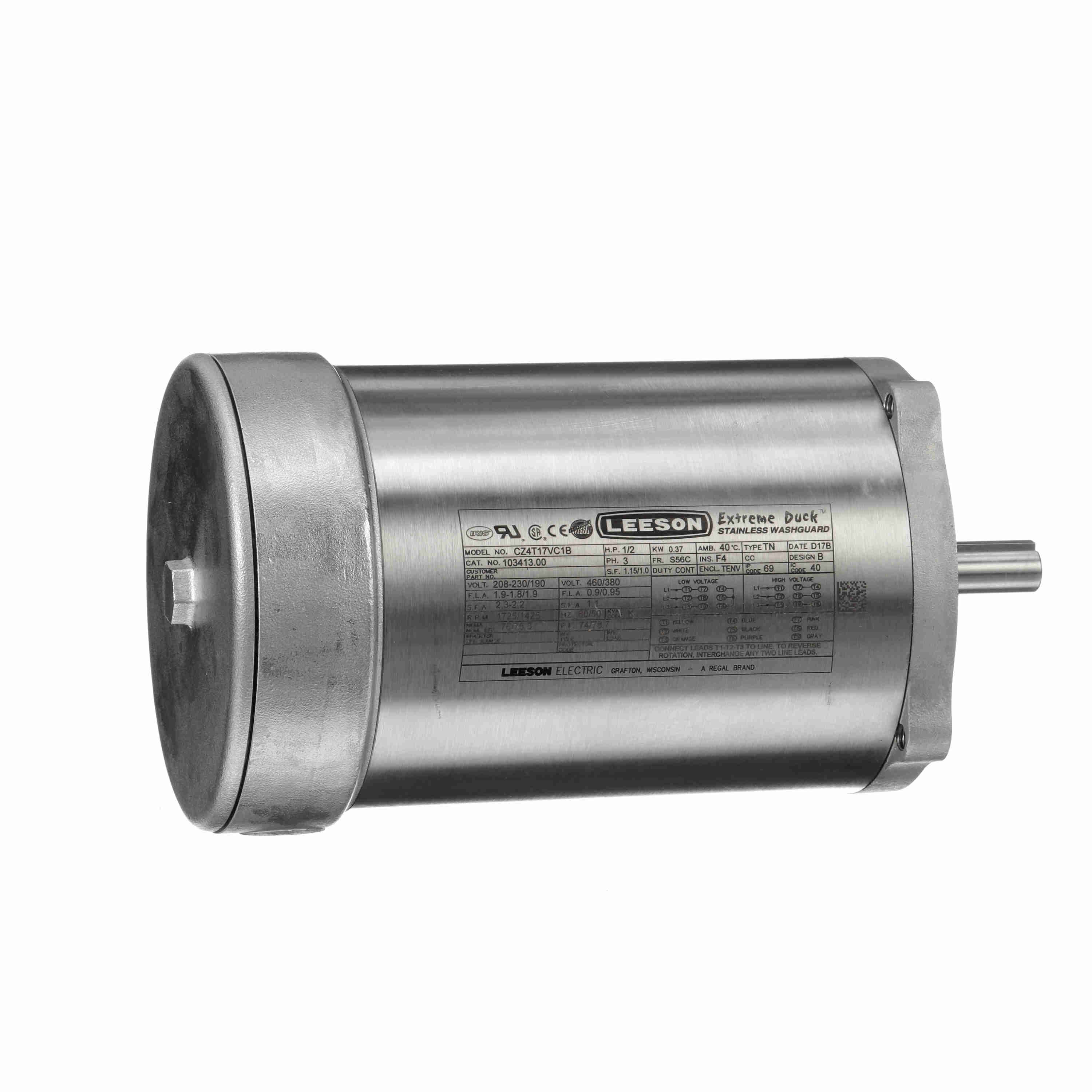

LEESON 103413.00 CZ4T17TC1C General Purpose Motor, 0.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Jun 17
€1,360.39 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Assembly | 40027 |
| Code | K |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Finish | Paint Free |
| Frame | S56C |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.9-1.8/0.9A |
| Grade | Grade 300 |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Round |
| Nameplate Rpm | 1800/1500 RPM |
| Nema Design | B |
| Phase | 3 |
| Power | 0.37 kW |
| Power Factor | 74 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Type | TN |
| Voltage | 208-230/460V AC |
| Ship weight (kg) | 14.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Assembly | Enclosure | Frame | Full Load Amps | HP | kW | Length Less Shaft | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
117127 | - | Totally Enclosed Nonventilated | 56C | 1.7-1.6/0.8 | 1/2 | - | 8.875" | 40 Degrees C | €1,413.65 | |
 |
117129 | - | Totally Enclosed Nonventilated | 56C | 2.4-2.3/1.15 | 3/4 | - | 9.375" | 40 Degrees C | €1,451.92 | |
 |
103414 | - | TEFC | S56C | 2.5-2.4 / 1.2 | 3/4 | .56 | - | 40 | €1,575.78 | |
 |
119512 | 042541 | TEFC | 56C | 3.2-3.2 / 1.6 | 1 | .75 | - | 40 | €1,685.80 | |
 |
119520 | - | TEFC | 56C | 4.6-4.8 / 2.4 | 1 1/2 / 1 | 1.12 / .75 | - | 40 | €1,719.38 | |
 |
121909 | - | TEFC | 143TC | 4.8 / 2.4 | 1.5 | 1.12 | - | 40 | €1,853.75 | |
 |
121910 | - | TEFC | 145TC | 4.8 / 2.4 | 2 / 1 1/2 | 1.49 / 1.12 | - | 40 | €2,005.61 |
