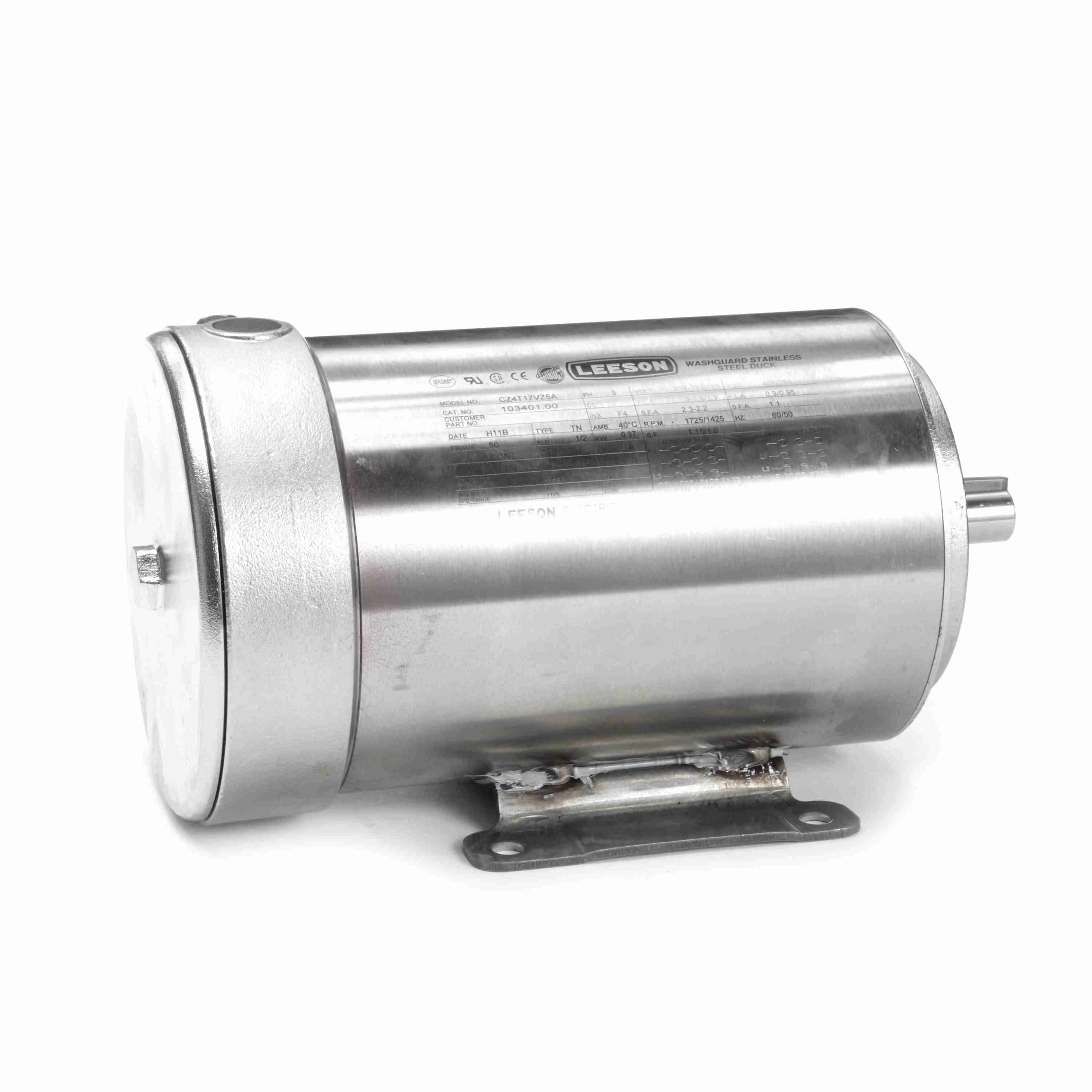

LEESON 103401.00 CZ4T17VZ5A Metric Motor 50-60 Hertz | AJ2PRP CZ4T17VZ5A

LEESON 103401.00 CZ4T17VZ5A Metric Motor 50-60 Hertz

In Stock
Item: AJ2PRP Model: 103401.00Cross Ref: CZ4T17VZ5A

Get it by Jun 7, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€529.44 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemWashdown Motor
Assembly040027
CodeK
DesignB
DutyContinuous
EnclosureTENV
Frame80
Full Load Amps1.9-1.8 / 0.9
HP1/2
Hz50/60
Insulation ClassF
kW0.37
LubricationPolyrex EM
Max. Ambient Temp.40
MountingRigid
PackagingB
Phase3
Power Factor74
RotationREV
RPM1800 / 1500
Service Factor1.15 / 1.0
Shaft Dia.3/4"
TypeTN
Voltage208-230 / 460

Shipping Info:

Ship weight (kg) 14.85
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52

Product Details:

  • Eff 100%: 76
  • Bearing OPE: 6204
  • CC Number: EXEMPT
  • Bearing PE: 6204
  • Nameplate: 081120
  • Winding: T55464
  • GROUP: 3
  • S. F Amps: 2.3-2.2 / 1.1
