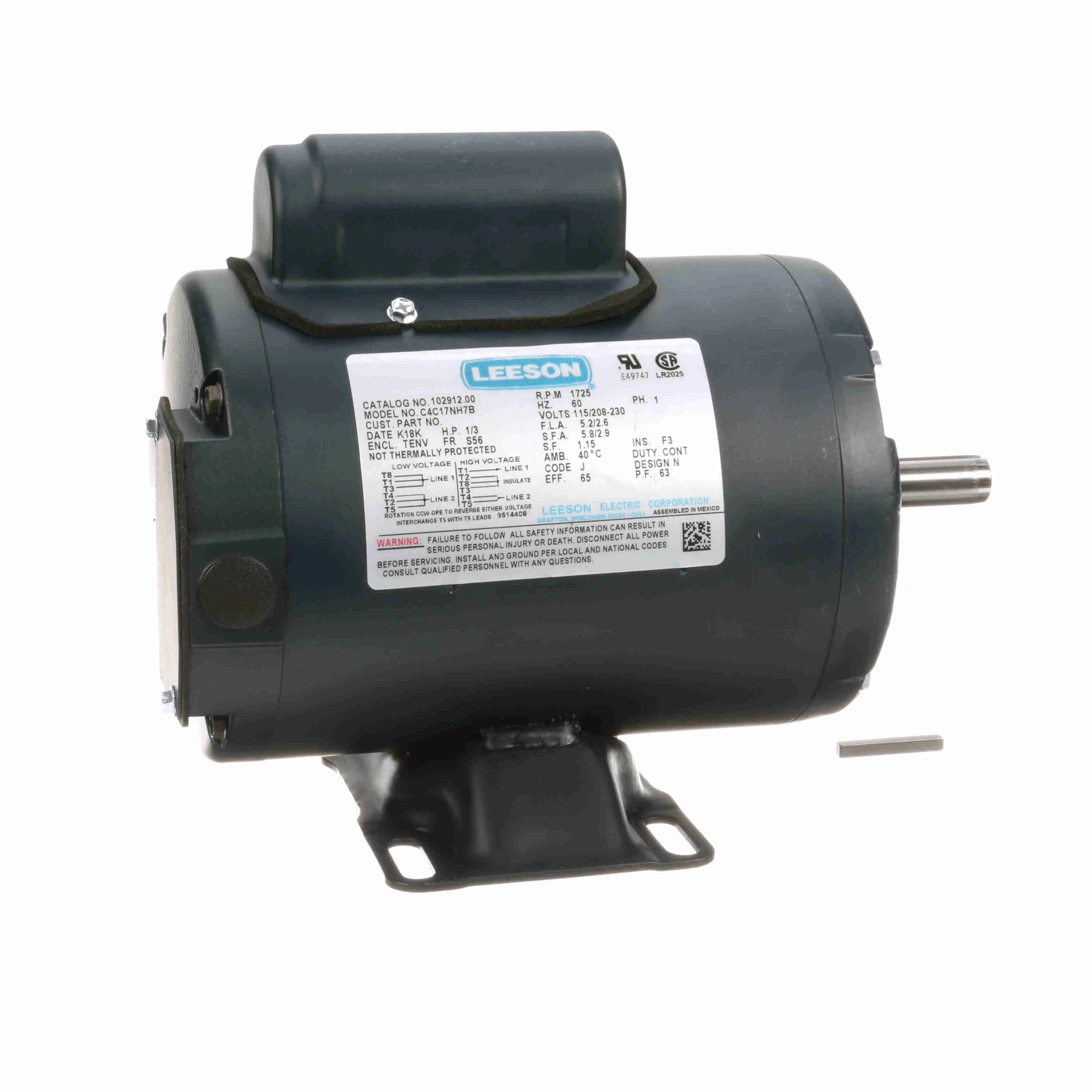

LEESON 102912.00 C4C17NH7B General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€400.36 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | J |
| Duty Cycle | Continuous |
| Frame | S56 |
| Frequency | 60 Hz |
| Full Load Amps | 5.2/2.6A |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | J, N |
| Output Kw | 0.25 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 63 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Type | CN |
| Voltage | 115/208-230V AC |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| Country of Origin | MX |
