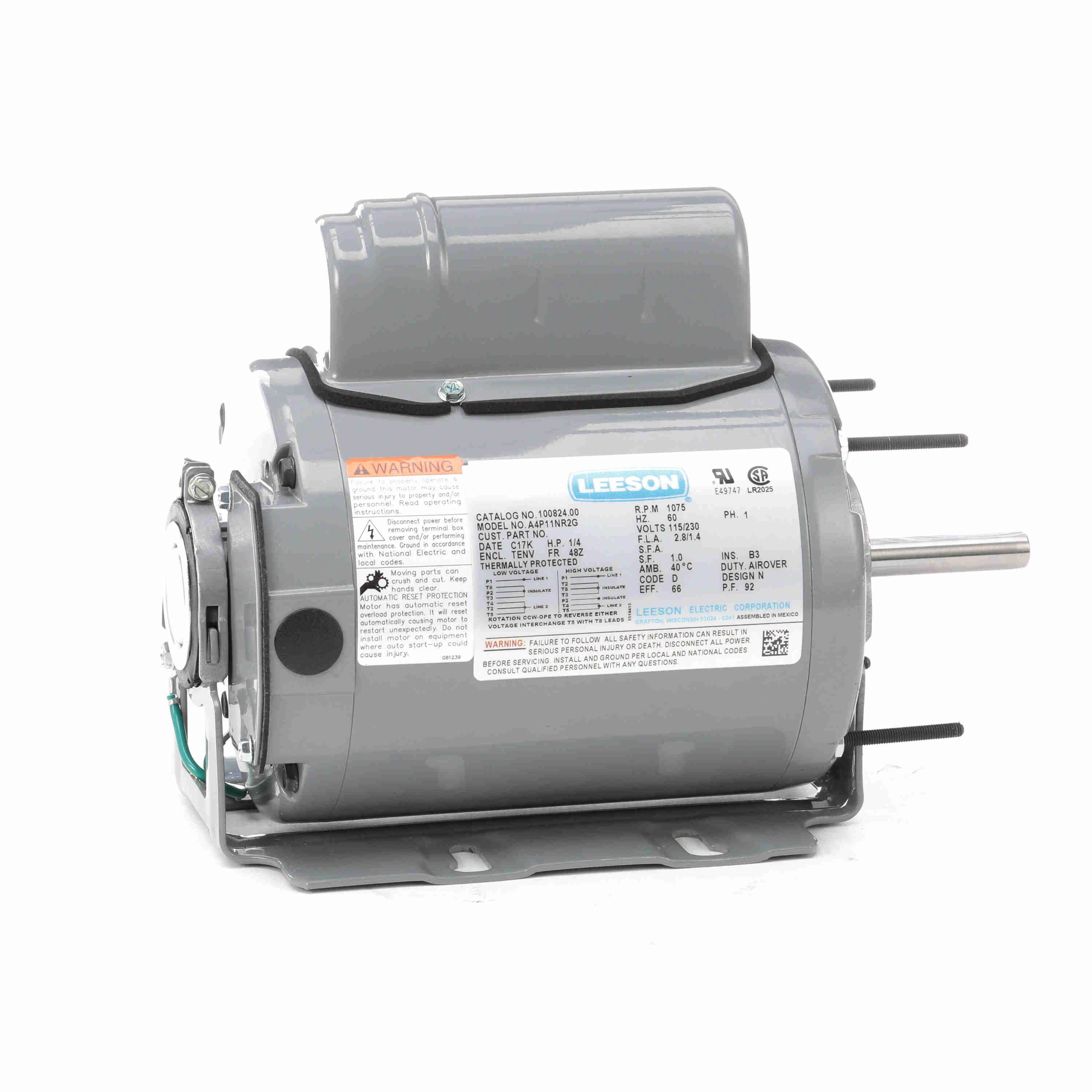

LEESON 100824.00 A4P11NR2G Agricultural Motor, 0.25 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Get it by Wednesday, Jun 18
€103.95 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Assembly | LO100824 |
| Code | D |
| Design | D, N |
| Duty Cycle | Continuous |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 2.8/1.4A |
| Insulation Class | Class B |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1075 RPM |
| Output Kw | 0.187 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 92 |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115/230V AC |
| Ship weight (kg) | 10.35 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
| Product | Model | Assembly | Duty | Frame | Full Load Amps | HP | kW | Lubrication | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100768 | LO100768 | Continuous | S56 | 4.4 / 2.2 | 1/2 | 0.37 | VERIFY | 7AM035A5 | €454.45 | |
 |
100805 | LO100805 | AIROVER | S56Z | 2.8 / 1.4 | 1/4 | .187 | VERIFY | 7AM035A5 | €108.87 | |
 |
111321 | 042506 | AIROVER | 56HZ | 6 / 3 | 1/2 | .37 | Polyrex EM | MEJ61RO | €470.43 | |
 |
111322 | 042506 | AIROVER | 56HZ | 8 / 4 | 3/4 | .56 | Polyrex EM | MEJ26RX | €546.89 | |
 |
A099836.00 | - | AIROVER | 48YZ | 6 / 3 | 1/2 | 0.37 | VERIFY | A-A56227-52 | €443.35 |
