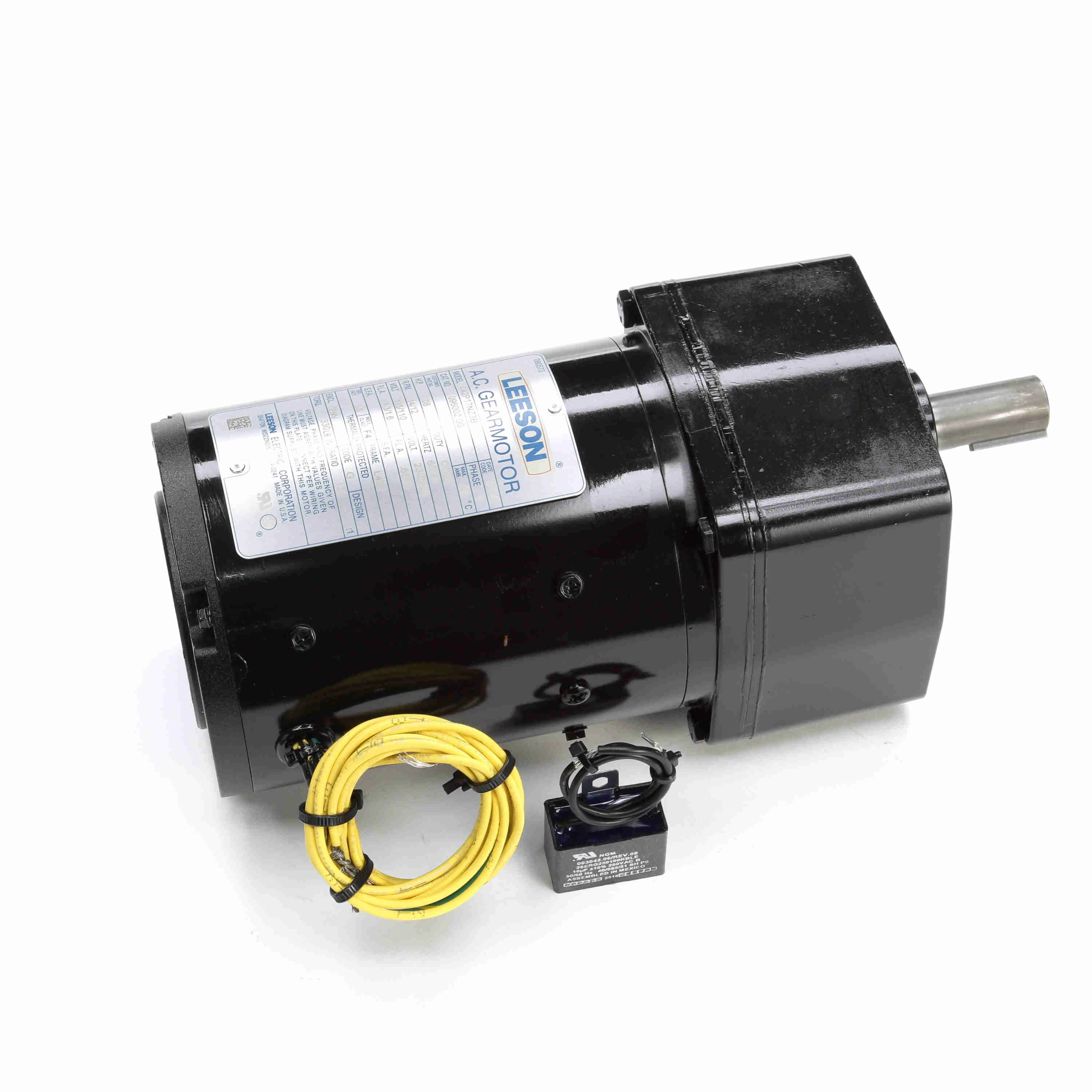

LEESON 096002.00 C42P17NZ3B Parallel Shaft Gearmotor, 0.08 HP, 1 Phase, 60/50 Hz, 110V, 14 RPM
Get it by Tuesday, Jun 17
€973.01 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | AC Gearmotor |
| Code | G |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Insulation Class | Class F4 |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Packaging | B |
| Phase | 1 |
| Rotation | Reconn |
| Rpm | 14/12 RPM |
| Series | PE350 |
| Service Factor | 1 |
| Shaft Dia. | 3/4" |
| Shaft Type | Parallel |
| Type | PN |
| Base To Center Of Shaft | 4" |
| Bearing Type | Needle |
| Brake Type | None |
| Capacitor Required | Yes |
| Features | All Gearing Designed And Rated To AGMA Class 9 Standards, All Needle Bearing Journals Are Precision Ground After Heat Treating To Provide Maximum Fit And Finish, All Rated For 60/50 Hz Operation Except Hi-Torque Single-Phase Which Are 60 Hz Only, And To Withstand Momentary Shock Overload Of 200%, But Motor Below The Reducer Should Be Avoided To Prevent Leakage Of Lubricant Into The Motor Should The Motor Shaft Seal Fail, Gears And Bearings Are Splash Lubricated With Permanent, Hardened For Maximum Load Capability, Heavy Duty Industrial Oil Seals Keep Lubricant In And Dirt Out, Heavy-Duty Gear Oil, High Carbon Alloy Output Shaft Provides Maximum Strength And Rigidity, Optional Conduit Box Available, Overhung Load Capacities Shown Are At Center Of Output Shaft, Oversized Output Bearings For Greater Overhung Load Capacity And Long Life, Precision Machined Gearing, Rugged Die Cast Aluminium Gear Housing For Maximum Gear And Bearing Support, Run Capacitor Supplied At No Additional Cost For Single Phase Designs, These Gearmotors Are Designed For Mounting At Any Angle, Three Phase And Hi-Torque Single Phase Models Include Conduit Box Other Single Phase Models Do Not |
| Frequency | 50/60 Hz |
| Full Load Current | 1.3/0.65A |
| Gear Ratio | 124:1 |
| Housing Material | Die Cast Aluminum |
| Includes | Conduit Box |
| Includes Capacitor | Capacitor Included |
| Includes Junction/conduit Box | Yes |
| Input Horsepower | 0.083 hp |
| Keyway Depth | 3/16" |
| Keyway Length | 1" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Length Less Shaft | 9.36" |
| Lubrication | Heavy Duty Gear Oil |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 14 RPM |
| Maximum Torque | 330 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Frame Designation | L42Y |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 2.5" |
| Mount Hole Center-to-center Width | 5" |
| Mount Type | Horizontal or Vertical Shaft Down |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Nameplate Speed | 142 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Output Shaft Diameter | 3/4" |
| Output Shaft Length | 1 5/8" |
| Overall Height | 5.57" |
| Overall Length | 11.36" |
| Overall Width | 6" |
| Overhung Load Capacity | 459 lbs.-ft. |
| Seal Type | Heavy Duty Industrial |
| Shaft Orientation | Parallel |
| Standards | CSA, UL |
| Starting Torque | 330 lbs.-in. |
| Thermal Protection | None |
| Ship weight (kg) | 7.97 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
| Product | Model | Enclosure | Frame | Full Load Amps | Rpm | Service Factor | Type | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
096001.00 | TENV | L42Y | 1.6/.8 / 1.3/.65 | 9/8 | 1.0/1.0 | Pn | 110/220 / 115/230 | €1,010.52 | |
 |
096003.00 | TENV | L42Y | 1.6/.8 / 1.3/.65 | 19/16 | 1.0/1.0 | Pn | 110/220 / 115/230 | €1,058.85 | |
 |
096004.00 | TEFC | P42Y | 4/2 / 2.9/1.45 | 29/24 | 1.0/1.0 | PF | 110/220 / 115/230 | €1,063.90 | |
 |
096005.00 | TEFC | P42Y | 4/2 / 2.9/1.45 | 34/28 | 1.0/1.0 | PF | 110/220 / 115/230 | €1,063.90 | |
 |
096051.00 | TEFC | 42Y | 7.2/3.6 | 173 | 1.0 | Tf | 115/230 | €1,104.29 | |
 |
096052.00 | TEFC | 42Y | 7.2/3.6 | 345 | 1.0 | Tf | 115/230 | €911.80 |
