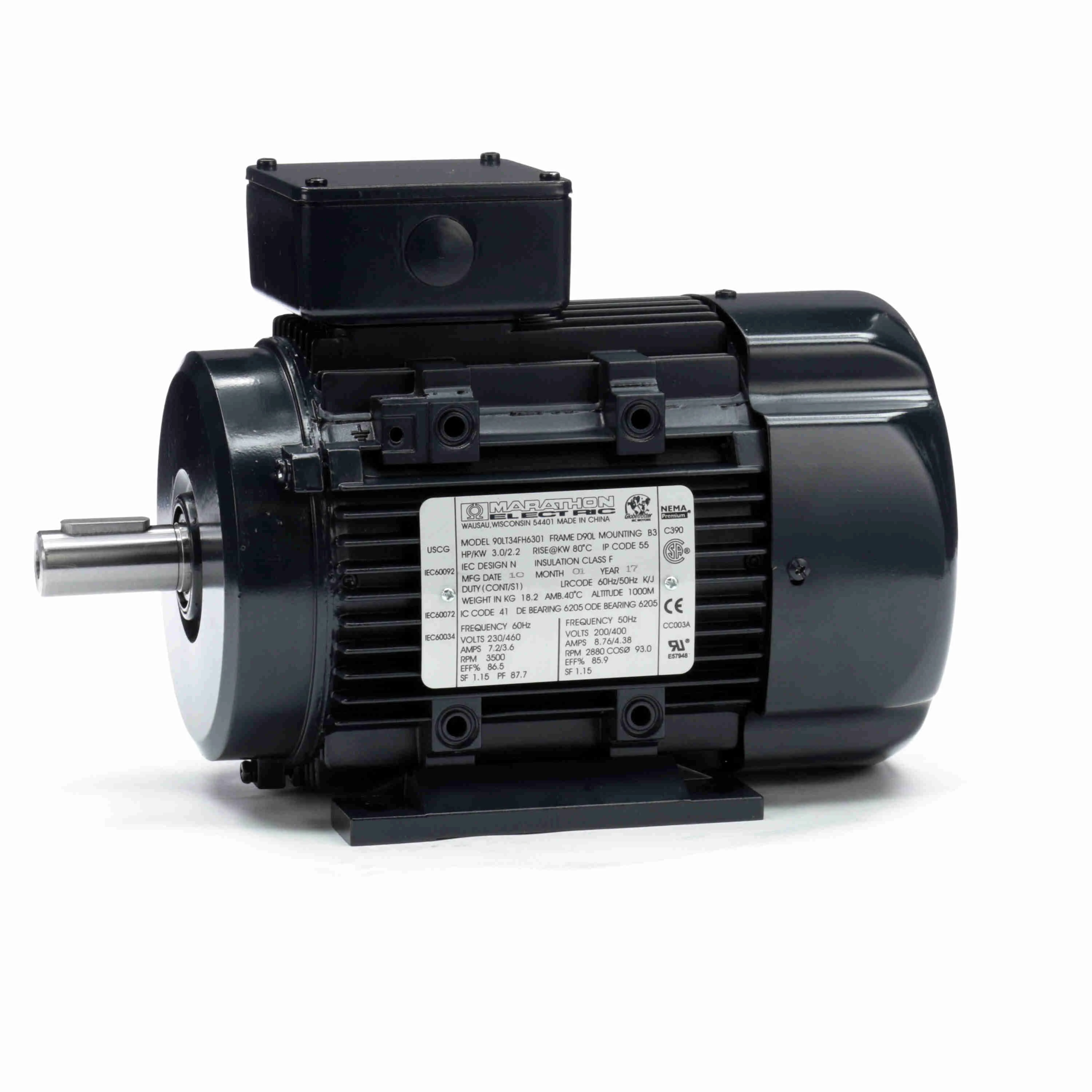

| Item | Metric Motor |
| Assembly | F3 |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Position | F3 |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 90L |
| Frame Material | Aluminum |
| Frequency | 50/60 Hz |
| Full Load Amps | 7.2/3.6A |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length | 341 mm |
| Length Less Shaft | 291 mm |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting | Rigid Base |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3500 RPM |
| Nema Design | B |
| Nominal Efficiency | 87.5% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Phase | 3 |
| Power | 2.24 kW |
| Service Factor | 1.15 |
| Shaft Dia. | 24 mm |
| Shaft Length | 50 mm |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Full Load Amps @ 50hz | 7.2/3.6A |
| Hp | 3 hp |
| Hp @ 50hz | 3 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Aluminum |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Overall Length | 341 mm |
| Standards | CE, CSA |
| Weight | 41 lbs. |
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 27 |
| Ship length (cm) | 37.49 |
| Ship width (cm) | 24.51 |
| HS code | 8501524000 |
| Country of Origin | CN |
