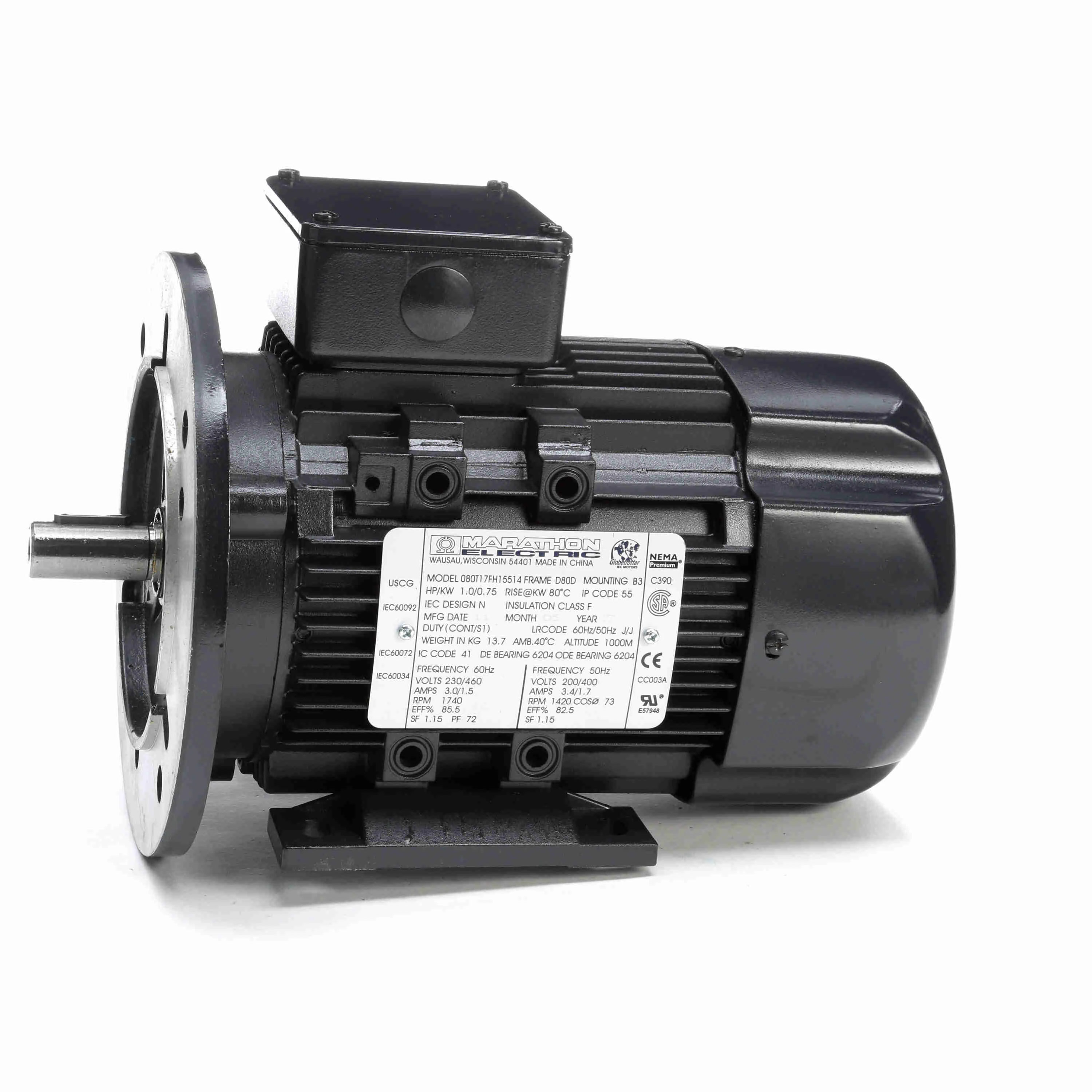

| Item | Metric Motor |
| Application | General Application |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Frame | 80D |
| Frame Material | Aluminum |
| Frequency | 50/60 Hz |
| Full Load Amps | 3/1.5A |
| Green Certification Or Other Recognition | NEMA Premium Rated |
| Hp | 1 hp |
| Insulation Class | Class F |
| Length | 302 mm |
| Length Less Shaft | 262 mm |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Squirrel Cage Inverter Rated , Three Phase |
| Nameplate Rpm | 1740 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 19 mm |
| Shaft Length | 40 mm |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Warranty | 1 yr. |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Aluminum |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Overall Length | 302 mm |
| Standards | CE, CSA, UL RECOGNIZED |
| Voltage | 230/460V AC |
| Weight | 47 lbs. |
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 26.01 |
| Ship length (cm) | 35.99 |
| Ship width (cm) | 24.51 |
| HS code | 8501524000 |
| Country of Origin | CN |
