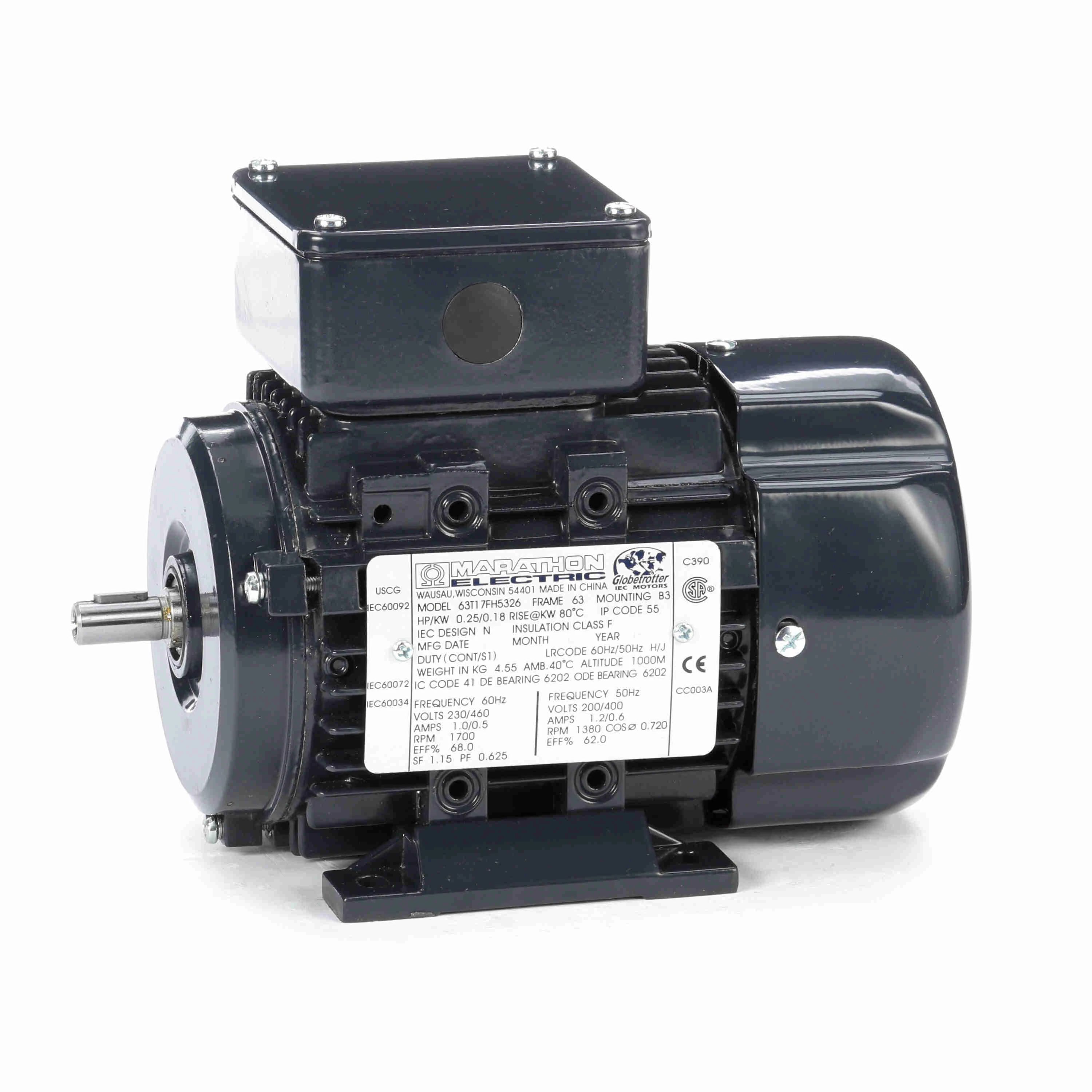

| Item | Metric Motor |
| Assembly | F3 |
| Bearing Type | Ball |
| Conduit Box Position | F3 |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 63 |
| Frame Material | Aluminum |
| Frequency | 50/60 Hz |
| Full Load Amps | 1/0.5A |
| Hp | 1/4 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length | 217 mm |
| Length Less Shaft | 194 mm |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | B3 |
| Nameplate Rpm | 1700 RPM , 1800 RPM |
| Nema Design | B |
| Nominal Efficiency | 68% |
| Number Of Speeds | 1 |
| Orientation | Horizontal |
| Phase | 3 |
| Power | 0.18 kW |
| Service Factor | 1.15 |
| Shaft Dia. | 11 mm |
| Shaft Length | 23 mm |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Full Load Amps @ 50hz | 1/0.5A |
| Hp @ 50hz | 1/4 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Aluminum |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Overall Length | 217 mm |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 12 lbs. |
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 19 |
| Ship length (cm) | 26.01 |
| Ship width (cm) | 17.5 |
| HS code | 8501514040 |
| Country of Origin | CN |
