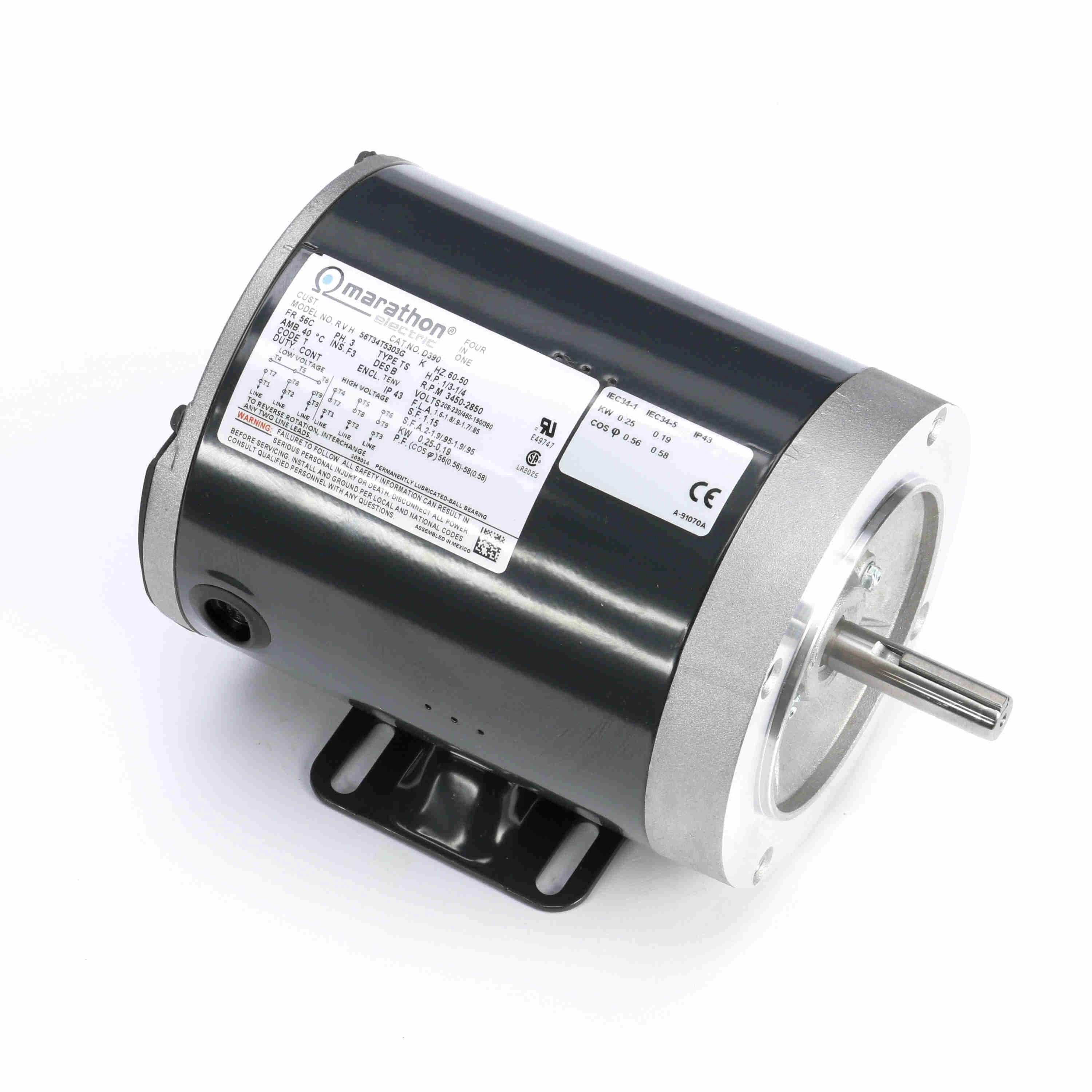

| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Assembly | F1 Only |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 65% |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.6-1.8/0.9A |
| Full Load Amps @ 50hz | 1.6-1.8/0.9A |
| Hp | 1/3 hp |
| Insulation Class | Class F |
| Length Less Shaft | 8 3/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | All Angle |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | C Face, Removable Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | B |
| Number Of Speeds | 1 |
| Orientation | Horizontal, Up, Down |
| Output Kw | 0.246 kW |
| Overall Length | 10 7/16" |
| Phase | 3 |
| Power | 0.246 kW |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Warranty | 1 yr. |
| Hp @ 50hz | 1/3 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| No. Of Speeds | 1 |
| Nominal Efficiency | 65% |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 21 lbs. |
| Ship weight (kg) | 9.45 |
| Ship height (cm) | 19.69 |
| Ship length (cm) | 33.66 |
| Ship width (cm) | 20.32 |
| HS code | 8501514040 |
| Country of Origin | MX |
